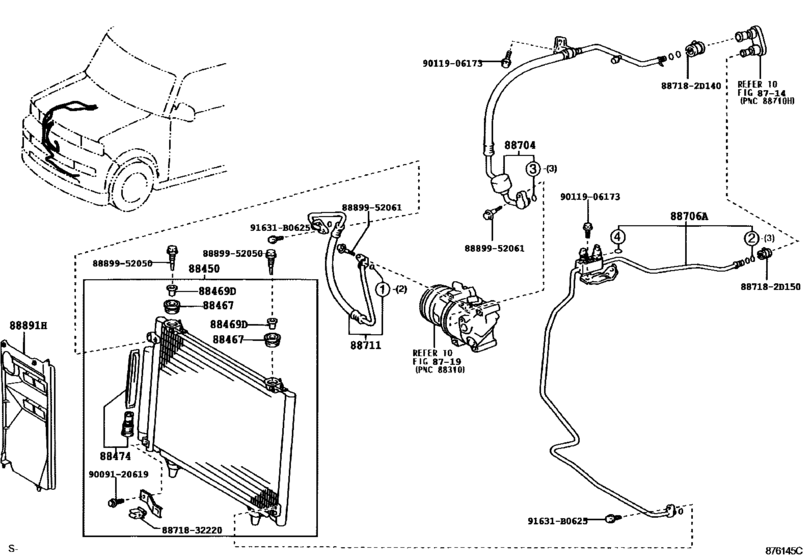

Heating & Air Conditioning - Cooler Piping ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88450
|
88450
88450-52131
Condenser Assy, W/receiver
[04.2003 - 01.2005] NCP31 |
88450-52131 |
— | ||
|
88450
|
88450
88450-52230
Condenser Assy, W/receiver
[01.2005 - 04.2005] NCP31 |
88450-52230 |
— | ||
|
88450
|
88450
88450-52231
Condenser Assy, W/receiver
[04.2005 -] NCP31 |
88450-52231 |
— | ||
|
88467
|
88467
88467-12180 Cushion, Cooler Condenser, No.1[04.2003 - 03.2005] NCP31 |
88467-12180 |
from US $1.92 |
||
|
88469D
|
88469D
88469-52010 Collar, Condenser Bracket, No.1[04.2003 - 03.2005] NCP31 |
88469-52010 |
US $1.40 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[04.2003 - 03.2005] NCP31 |
88474-17010 |
from US $65.40 |
||
|
88704
|
88704
88704-52070 Hose Sub-Assy, SuctionSUCTION [04.2003 - 06.2005] NCP31 |
88704-52070 |
US $329.06 |
||
|
88704
|
88704
88704-52130
Hose Sub-Assy, Suction
[07.2005 -] NCP31 |
88704-52130 |
— | ||
|
88706A
|
88706A
88706-52320 Tube Sub-Assy, Liquid, ALIQUID, A [04.2003 - 01.2005] NCP31 |
88706-52320 |
US $331.97 |
||
|
88706A
|
88706A
88706-52420
Tube Sub-Assy, Liquid, A
[01.2005 - 03.2005] NCP31 |
88706-52420 |
— | ||
|
88706A
|
88706A
88706-52421
Tube Sub-Assy, Liquid, A
[04.2005 - 07.2005] NCP31 |
88706-52421 |
— | ||
|
88706A
|
88706A
88706-52431
Tube Sub-Assy, Liquid, A
[07.2005 -] NCP31 |
88706-52431 |
— | ||
|
88711
|
88711
88711-52090 Hose, Cooler Refrigerant Discharge, No.1[04.2003 - 07.2003] NCP31 |
88711-52090 |
US $165.98 |
||
| replacement | |||||
|
88711
|
88711
88711-52091 Hose, Cooler Refrigerant Discharge, No.1[04.2003 - 07.2003] NCP31 |
88711-52091 |
from US $139.78 |
||
|
88711
|
88711
88711-52091 Hose, Cooler Refrigerant Discharge, No.1[07.2003 - 01.2005] NCP31 |
88711-52091 |
from US $139.78 |
||
|
88711
|
88711
88711-52240
Hose, Cooler Refrigerant Discharge, No.1
[01.2005 -] NCP31 |
88711-52240 |
— | ||
|
88891H
|
88891H
88891-52070
Cover, Cooler, No.1
[01.2005 -] NCP31 |
88891-52070 |
— | ||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.66 |
||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
8889952050
|
8889952050
88899-52050 Cover, Evaporator |
88899-52050 |
US $2.63 |
||
|
8889952061
|
8889952061
88899-52061
Cover, Evaporator
|
88899-52061 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9011906173
|
9011906173
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
