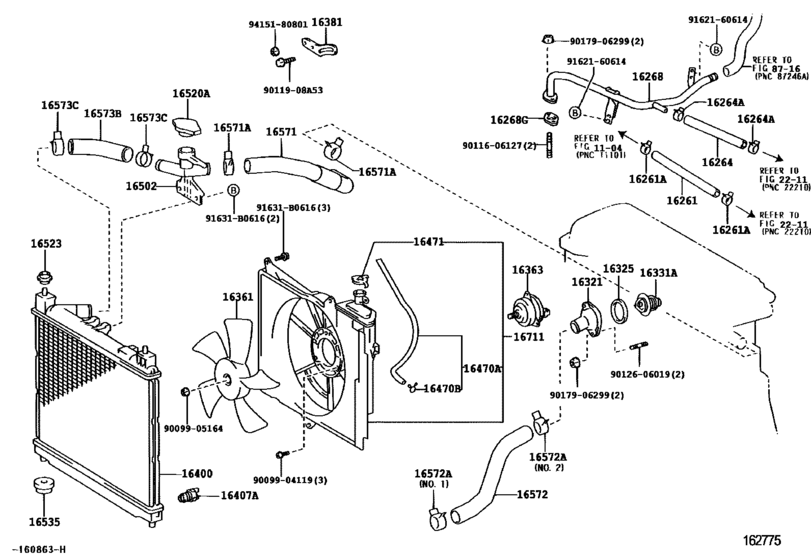

Radiator & Water Outlet ([12.2005 - ] (0512- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
99555-10185 Hose, Water By-Pass[04.2003 -] 1NZFE..NCP31 L=185 |
99555-10185 |
US $5.56 |
||
|
16261A
|
16261A
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2003 - 12.2006] 1NZFE..NCP31 |
90467-13054 |
from US $1.11 |
||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[04.2003 - 12.2006] 1NZFE..NCP31 |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
16261-21040 Hose, Water By-Pass, No.2[04.2003 -] 1NZFE..NCP31 L=145 |
16261-21040 |
US $10.57 |
||
|
16264A
|
16264A
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2003 - 12.2006] 1NZFE..NCP31 |
90467-13054 |
from US $1.11 |
||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[04.2003 - 12.2006] 1NZFE..NCP31 |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-21021 Pipe, Water By-Pass, No.1[04.2003 - 11.2004] 1NZFE..NCP31 |
16268-21021 |
US $58.82 |
||
| replacement | |||||
|
16268
|
16268
16268-21022 Pipe, Water By-Pass, No.1[04.2003 - 11.2004] 1NZFE..NCP31 |
16268-21022 |
US $37.13 |
||
|
16268
|
16268
16268-21022 Pipe, Water By-Pass, No.1[11.2004 -] 1NZFE..NCP31 |
16268-21022 |
US $37.13 |
||
|
16268G
|
16268G
16258-21020 Gasket(For Water By-Pass Pipe)[04.2003 -] 1NZFE..NCP31 |
16258-21020 |
US $5.97 |
||
| replacement | |||||
|
16268G
|
16268G
16258-21021 Gasket(For Water By-Pass Pipe)[04.2003 -] 1NZFE..NCP31 |
16258-21021 |
from US $3.04 |
||
|
16321
|
16321
16321-21020 Inlet, Water[04.2003 -] 1NZFE..NCP31 |
16321-21020 |
from US $11.90 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[04.2003 -] 1NZFE..NCP31 |
16325-62010 |
from US $3.94 |
||
|
16331A
|
16331A
90916-03093 Thermostat[04.2003 -] 1NZFE..NCP31 *WAX 82-95 |
90916-03093 |
from US $20.10 |
||
|
16361
|
16361
16361-21050 Fan[11.2003 - 12.2006] 1NZFE..NCP31 |
16361-21050 |
from US $54.46 |
||
|
16361
|
16361
16361-23050 Fan[04.2003 - 11.2003] 1NZFE..NCP31 |
16361-23050 |
US $75.43 |
||
|
16363
|
16363
16363-23030 Motor, Cooling Fan[04.2003 - 12.2006] 1NZFE..NCP31 |
16363-23030 |
US $282.46 |
||
| replacement | |||||
|
16363
|
16363
16363-28160 Motor, Cooling Fan[04.2003 - 12.2006] 1NZFE..NCP31 |
16363-28160 |
from US $171.17 |
||
|
16381
|
16381
16381-21030 Bar, Fan Belt Adjusting[04.2003 -] 1NZFE..NCP31 |
16381-21030 |
US $8.96 |
||
|
16400
|
16400
16400-21120 Radiator Assy[04.2003 - 12.2006] 1NZFE..NCP31..MTM |
16400-21120 |
US $359.63 |
||
| replacement | |||||
|
16400
|
16400
16400-21121 Radiator Assy[04.2003 - 12.2006] 1NZFE..NCP31..MTM |
16400-21121 |
from US $359.63 |
||
|
16407A
|
16407A
16407-7A130 Cock Sub-Assy, Radiator Drain[04.2003 -] 1NZFE..NCP31 |
16407-7A130 |
US $10.39 |
||
|
16470A
|
16470A
16377-21020 Hose Or Pipe(For Radiator Reserve Tank)[12.2005 -] 1NZFE..NCP31 *H,L=545 |
16377-21020 |
US $18.14 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[04.2003 - 12.2005] 1NZFE..NCP31 *H,L=430 |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[04.2003 -] 1NZFE..NCP31 |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16471-0J010
Cap Sub-Assy, Reserve Tank
[04.2003 - 12.2005] 1NZFE..NCP31 (L) |
16471-0J010 |
— | ||
|
16471
|
16471
16471-23010 Cap Sub-Assy, Reserve Tank[04.2003 - 12.2005] 1NZFE..NCP31 (J) |
16471-23010 |
US $1.60 |
||
|
16471
|
16471
16471-23030 Cap Sub-Assy, Reserve Tank[12.2005 -] 1NZFE..NCP31 (J) |
16471-23030 |
from US $3.26 |
||
|
16502
|
16502
16502-21010 Filler Sub-Assy, Water[04.2003 -] 1NZFE..NCP31 |
16502-21010 |
from US $17.10 |
||
|
16520A
|
16520A
16401-62100
Cap Sub-Assy, Radiator
[04.2003 -] 1NZFE..NCP31 |
16401-62100 |
— | ||
| replacements | |||||
|
16520A
|
16520A
16401-31520
Radiator Cap Sub-Assy (108kPa)
[04.2003 -] 1NZFE..NCP31 |
16401-31520 |
— | ||
|
16520A
|
16520A
16401-36020 Cap Sub-Assy, Radiator[04.2003 -] 1NZFE..NCP31 |
16401-36020 |
from US $16.31 |
||
|
16523
|
16523
16523-23010 Cushion, Sub-Radiator Support[04.2003 -] 1NZFE..NCP31 |
16523-23010 |
US $16.13 |
||
|
16535
|
16535
90480-40016 Support, Radiator, Lower[04.2003 -] 1NZFE..NCP31 |
90480-40016 |
from US $9.50 |
||
|
16571
|
16571
16571-21020 Hose, Radiator, Inlet[04.2003 -] 1NZFE..NCP31 |
16571-21020 |
from US $15.93 |
||
|
16571A
|
16571A
90467-33006 Clamp Or Clip, Hose(For Radiator Inlet)[04.2003 -] 1NZFE..NCP31 |
90467-33006 |
from US $3.17 |
||
|
16572
|
16572
16572-21020 Hose, Radiator, Outlet[04.2003 -] 1NZFE..NCP31 |
16572-21020 |
from US $15.64 |
||
|
16572A
|
16572A
90467-33006 Clamp Or Clip, Hose(For Radiator Inlet)[04.2003 -] 1NZFE..NCP31 NO.2 |
90467-33006 |
from US $3.17 |
||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2003 -] 1NZFE..NCP31 NO.1 |
90467-34004 |
from US $3.41 |
||
|
16573B
|
16573B
16573-21010 Hose, Radiator, No.3[04.2003 -] 1NZFE..NCP31 |
16573-21010 |
from US $12.91 |
||
|
16573C
|
16573C
90467-33006 Clamp Or Clip, Hose(For Radiator Inlet)[04.2003 -] 1NZFE..NCP31 |
90467-33006 |
from US $3.17 |
||
|
16711
|
16711
16711-21030 Shroud, Fan[04.2003 - 12.2005] 1NZFE..NCP31 |
16711-21030 |
US $134.48 |
||
|
16711
|
16711
16711-21120 Shroud, Fan[12.2005 -] 1NZFE..NCP31 |
16711-21120 |
US $112.11 |
||
| replacement | |||||
|
16711
|
16711
16711-21121 Shroud, Fan[12.2005 -] 1NZFE..NCP31 |
16711-21121 |
US $134.48 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9011908A53
|
9011908A53
90119-08A53 BOLT WWASHER |
90119-08A53 |
US $1.43 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9012606019
|
9012606019
90126-06019 New Genuine Part |
90126-06019 |
US $2.33 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.78 |
||
