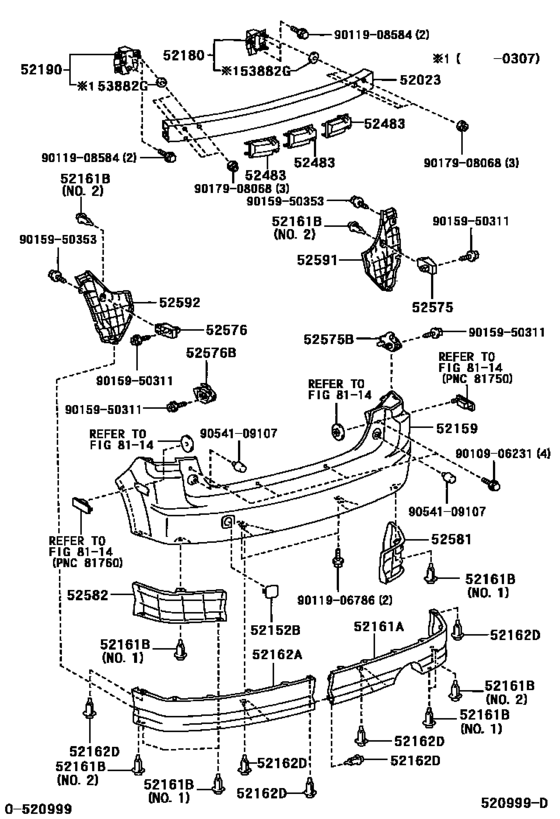

Rear Bumper & Bumper Stay ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-52100 Reinforcement Sub-Assy, Rear BumperREAR BUMPER [04.2003 -] NCP31 |
52023-52100 |
US $308.67 |
||
|
52152B
|
52152B
52152-52020-A0 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 WHITE,068 |
52152-52020-A0 |
US $7.28 |
||
|
52152B
|
52152B
52152-52020-B0 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 GRAY ME.,1D2 |
52152-52020-B0 |
US $7.28 |
||
|
52152B
|
52152B
52152-52020-B1 Extension, Rear Bumper, RhREAR BUMPER, RH [12.2005 - 12.2006] NCP31 DK. GRAY M.M.,1F4 |
52152-52020-B1 |
US $7.28 |
||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[12.2005 - 12.2006] NCP31 DK. GRAY M.M.,1F4 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-C1 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 BLACK MC.,209 |
52152-52020-C1 |
US $7.28 |
||
|
52152B
|
52152B
52152-52020-D0 Extension, Rear Bumper, RhREAR BUMPER, RH [04.2003 - 12.2006] NCP31 BORDEAUX MC.,3P2 |
52152-52020-D0 |
US $7.28 |
||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 BORDEAUX MC.,3P2 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-D1 Extension, Rear Bumper, Rh[10.2006 - 12.2006] NCP31 SPECIAL EDITION(USA),AGATE SS.,3R2 |
52152-52020-D1 |
US $7.28 |
||
|
52152B
|
52152B
52152-52020-D2
Extension, Rear Bumper, Rh
[12.2005 - 12.2006] NCP31 DK. RED M.M.,3Q3 |
52152-52020-D2 |
— | ||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[12.2005 - 12.2006] NCP31 DK. RED M.M.,3Q3 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-E0 Extension, Rear Bumper, Rh[02.2004 - 03.2004] NCP31 SPECIAL EDITION(USA),ORANGE ME.,4R8 |
52152-52020-E0 |
US $7.28 |
||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[02.2004 - 03.2004] NCP31 SPECIAL EDITION(USA),ORANGE ME.,4R8 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-F0
Extension, Rear Bumper, Rh
[02.2005 - 03.2005] NCP31 SPECIAL EDITION(USA),SUPER BRIGHT YELLOW,576 |
52152-52020-F0 |
— | ||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[02.2005 - 03.2005] NCP31 SPECIAL EDITION(USA),SUPER BRIGHT YELLOW,576 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-G0 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 DK.GRAYISH OLIVE ME,6M7 |
52152-52020-G0 |
US $7.28 |
||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 DK.GRAYISH OLIVE ME,6M7 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-G1
Extension, Rear Bumper, Rh
[01.2006 - 03.2006] NCP31 SPECIAL EDITION(USA),GREEN M.M.,6U1 |
52152-52020-G1 |
— | ||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[01.2006 - 03.2006] NCP31 SPECIAL EDITION(USA),GREEN M.M.,6U1 |
52152-52901 |
from US $5.01 |
||
|
52152B
|
52152B
52152-52020-J0 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 DARK BLUE MC.,8P8 |
52152-52020-J0 |
US $7.28 |
||
| replacement | |||||
|
52152B
|
52152B
52152-52901 Extension, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 DARK BLUE MC.,8P8 |
52152-52901 |
from US $5.01 |
||
|
52159
|
52159
52159-52913 Cover, Rear BumperREAR BUMPER [04.2003 - 12.2006] NCP31 |
52159-52913 |
from US $271.48 |
||
|
52161A
|
52161A
52161-52120-D1 Piece, Rear Bumper, Rh[10.2006 - 12.2006] NCP31 SPECIAL EDITION(USA),AGATE SS.,3R2 |
52161-52120-D1 |
US $184.96 |
||
|
52161A
|
52161A
52161-52911
Piece, Rear Bumper, Rh
[04.2003 - 12.2006] NCP31 |
52161-52911 |
— | ||
|
52161B
|
52161B
52161-16010 Clip[04.2003 - 12.2006] NCP31 NO.1 |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[04.2003 - 12.2006] NCP31 NO.1 |
52161-0K040 |
from US $1.50 |
||
|
52161B
|
52161B
52161-02020 Clip[04.2003 - 12.2006] NCP31 NO.1 |
52161-02020 |
US $5.27 |
||
|
52161B
|
52161B
90467-09093 Piece, Rear Bumper[04.2003 - 12.2006] NCP31 NO.2 |
90467-09093 |
from US $1.72 |
||
|
52162A
|
52162A
52162-52120-D1 Piece, Rear Bumper, Lh[10.2006 - 12.2006] NCP31 SPECIAL EDITION(USA),AGATE SS.,3R2 |
52162-52120-D1 |
US $184.96 |
||
|
52162A
|
52162A
52162-52904 Piece, Rear Bumper, LhREAR BUMPER, LH [04.2003 - 12.2006] NCP31 |
52162-52904 |
US $117.94 |
||
|
52162D
|
52162D
52161-20010 Piece, Front Bumper[04.2003 - 12.2006] NCP31 |
52161-20010 |
from US $1.74 |
||
|
52180
|
52180
52180-52020 Bracket Assy, Rear Bumper Side Mounting, RhREAR BUMPER SIDE MOUNTING, RH [04.2003 -] NCP31 |
52180-52020 |
US $35.53 |
||
|
52190
|
52190
52190-52030 Bracket Assy, Rear Bumper Side Mounting, LhREAR BUMPER SIDE MOUNTING, LH [04.2003 -] NCP31 |
52190-52030 |
US $41.35 |
||
|
52483
|
52483
52483-52020
Bracket, Rear Bumper Shield, Center
[04.2003 -] NCP31 |
52483-52020 |
— | ||
|
52575
|
52575
52575-52030 Retainer, Rear Bumper Side, Rh[04.2003 -] NCP31 |
52575-52030 |
US $17.98 |
||
|
52575B
|
52575B
52576-52030 Retainer, Rear Bumper Side, Rh[04.2003 -] NCP31 |
52576-52030 |
US $15.77 |
||
|
52576
|
52576
52575-52030 Retainer, Rear Bumper Side, Rh[04.2003 -] NCP31 |
52575-52030 |
US $17.98 |
||
|
52576B
|
52576B
52576-52030 Retainer, Rear Bumper Side, Rh[04.2003 -] NCP31 |
52576-52030 |
US $15.77 |
||
|
52581
|
52581
52581-52040 Protector, Rear Bumper, Rh[04.2003 - 12.2006] NCP31 |
52581-52040 |
US $67.85 |
||
|
52582
|
52582
52582-52030 Protector, Rear Bumper, Lh[04.2003 - 12.2006] NCP31 |
52582-52030 |
US $67.85 |
||
|
52591
|
52591
52591-52130 Seal, Rear Bumper Side, Rh[04.2003 - 12.2006] NCP31 |
52591-52130 |
from US $30.24 |
||
|
52592
|
52592
52592-52120 Seal, Rear Bumper Side, Lh[04.2003 - 12.2006] NCP31 |
52592-52120 |
from US $30.24 |
||
|
53882G
|
53882G
53882-30040 Seal, Radiator Support, Upper[04.2003 - 07.2003] NCP31 |
53882-30040 |
US $1.10 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $1.01 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.61 |
||
|
9011908584
|
9011908584
90119-08584 New Genuine Part |
90119-08584 |
US $2.62 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.68 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9054109107
|
9054109107
90541-09107 Cushion, Tail Gate Side |
90541-09107 |
US $2.15 |
||
