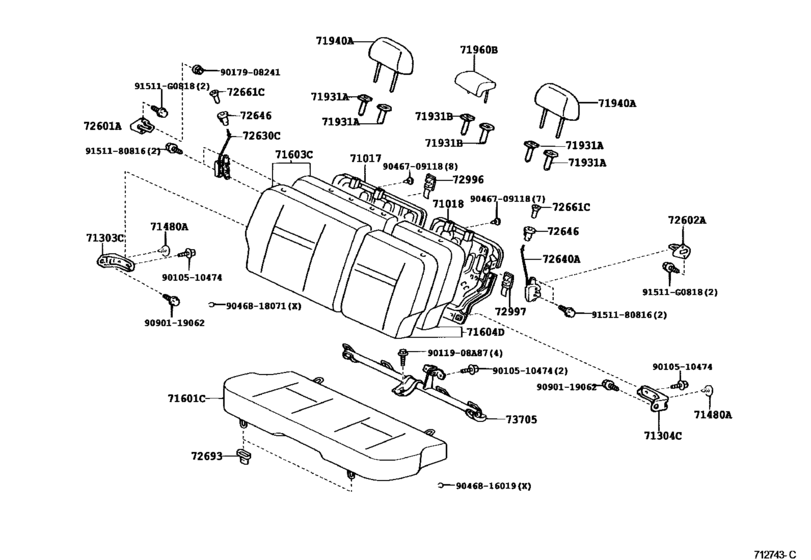

Rear Seat & Seat Track ([04.2003 - ] (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
71017-52440 Frame Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, RH [04.2003 -] NCP31 |
71017-52440 |
US $393.12 |
||
|
71018
|
71018
71018-52270 Frame Sub-Assy, Rear Seat Back, LhREAR SEAT BACK, LH [04.2003 -] NCP31 |
71018-52270 |
US $260.62 |
||
|
71303C
|
71303C
71345-52010 Hinge Sub-Assy, Rear Seat Back, Rh[04.2003 -] NCP31 |
71345-52010 |
US $16.02 |
||
|
71304C
|
71304C
71345-52010 Hinge Sub-Assy, Rear Seat Back, Rh[04.2003 -] NCP31 |
71345-52010 |
US $16.02 |
||
|
71480A
|
71480A
90467-06070-B6 Cushion Assy, Rear Seat (For Bench Type)[04.2003 - 12.2006] NCP31 DK.GRAY,TRIM9# |
90467-06070-B6 |
US $1.22 |
||
|
71601C
|
71601C
71460-52D20-K1
Pad Sub-Assy, Rear Seat Cushion W/cover, Rh
[12.2005 - 12.2006] NCP31 DK.GRAY,TRIM9# |
71460-52D20-K1 |
— | ||
|
71601C
|
71601C
71601-5C580-C1 Pad Sub-Assy, Rear Seat Cushion W/cover, RhREAR SEAT CUSHION W/COVER, RH [04.2003 - 12.2005] NCP31 BLACK,TRIM9# |
71601-5C580-C1 |
US $914.37 |
||
|
71601C
|
71601C
71601-5C580-C2 Pad Sub-Assy, Rear Seat Cushion W/cover, RhREAR SEAT CUSHION W/COVER, RH [02.2004 - 03.2004] NCP31 BLACK.ORANGE,TRIM9# |
71601-5C580-C2 |
US $911.46 |
||
|
71601C
|
71601C
71601-5C580-C3
Pad Sub-Assy, Rear Seat Cushion W/cover, Rh
[02.2005 - 03.2005] NCP31 SPECIAL EDITION(USA),BLACK/YELLOW,TRIM9# |
71601-5C580-C3 |
— | ||
|
71603C
|
71603C
71603-52G00-B0
Pad Sub-Assy, Rear Seat Back W/cover
[12.2005 - 12.2006] NCP31 DK.GREY,TRIM9# |
71603-52G00-B0 |
— | ||
|
71603C
|
71603C
71603-5D070-C1 Pad Sub-Assy, Rear Seat Back W/coverREAR SEAT BACK W/COVER [04.2003 - 07.2004] NCP31 BLACK,TRIM9# |
71603-5D070-C1 |
US $556.19 |
||
|
71603C
|
71603C
71603-5D070-C3 Pad Sub-Assy, Rear Seat Back W/coverREAR SEAT BACK W/COVER [02.2004 - 03.2004] NCP31 BLACK.ORANGE,TRIM9# |
71603-5D070-C3 |
US $553.28 |
||
|
71603C
|
71603C
71603-5D070-C4
Pad Sub-Assy, Rear Seat Back W/cover
[02.2005 - 03.2005] NCP31 SPECIAL EDITION(USA),BLACK/YELLOW,TRIM9# |
71603-5D070-C4 |
— | ||
|
71603C
|
71603C
71603-5D071-C2
Pad Sub-Assy, Rear Seat Back W/cover
[07.2004 - 12.2005] NCP31 BLACK,TRIM9# |
71603-5D071-C2 |
— | ||
|
71604D
|
71604D
71604-52F30-B0
Pad Sub-Assy, Rear Seat Back W/cover, Lh
[12.2005 - 12.2006] NCP31 DK.GREY,TRIM9# |
71604-52F30-B0 |
— | ||
|
71604D
|
71604D
71604-5C100-C1 Pad Sub-Assy, Rear Seat Back W/cover, LhREAR SEAT BACK W/COVER, LH [04.2003 - 07.2004] NCP31 BLACK,TRIM9# |
71604-5C100-C1 |
US $414.96 |
||
|
71604D
|
71604D
71604-5C100-C3 Pad Sub-Assy, Rear Seat Back W/cover, LhREAR SEAT BACK W/COVER, LH [02.2004 - 03.2004] NCP31 BLACK.ORANGE,TRIM9# |
71604-5C100-C3 |
US $413.50 |
||
|
71604D
|
71604D
71604-5C100-C4
Pad Sub-Assy, Rear Seat Back W/cover, Lh
[02.2005 - 03.2005] NCP31 SPECIAL EDITION(USA),BLACK/YELLOW,TRIM9# |
71604-5C100-C4 |
— | ||
|
71604D
|
71604D
71604-5C101-C2
Pad Sub-Assy, Rear Seat Back W/cover, Lh
[07.2004 - 12.2005] NCP31 BLACK,TRIM9# |
71604-5C101-C2 |
— | ||
|
71931A
|
71931A
71930-42020-B4 Support Assy, Front Seat Headrest[12.2005 - 12.2006] NCP31 W(LOCK)&W(BUTTON),DK.GRAY,TRIM9# |
71930-42020-B4 |
US $16.42 |
||
|
71931A
|
71931A
71930-47010-B2 Support, Front Seat Headrest[04.2003 - 12.2005] NCP31 W(LOCK),DK.GRAY,TRIM9# |
71930-47010-B2 |
US $13.98 |
||
|
71931A
|
71931A
71931-42020-B4 Support Assy, Front Seat Headrest[12.2005 - 12.2006] NCP31 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM9# |
71931-42020-B4 |
US $8.60 |
||
|
71931A
|
71931A
71931-47010-B2 Support Assy, Front Seat Headrest[04.2003 - 12.2005] NCP31 W/O(LOCK),DK.GRAY,TRIM9# |
71931-47010-B2 |
US $6.99 |
||
|
71931B
|
71931B
71956-47010-B2 Support, Rear Seat Headrest[04.2003 - 12.2006] NCP31 W/O(LOCK),DK.GRAY,TRIM9# |
71956-47010-B2 |
US $9.46 |
||
|
71931B
|
71931B
71970-47010-B2 Support, Rear Seat Headrest[04.2003 - 12.2006] NCP31 W(LOCK),DK.GRAY,TRIM9# |
71970-47010-B2 |
US $11.65 |
||
|
71940A
|
71940A
71940-52130-C0 Headrest Assy, Rear SeatREAR SEAT [04.2003 - 12.2005] NCP31 BLACK,TRIM9# |
71940-52130-C0 |
US $371.28 |
||
|
71940A
|
71940A
71940-52420-B0
Headrest Assy, Rear Seat
[12.2005 - 12.2006] NCP31 DK.GRAY,TRIM9# |
71940-52420-B0 |
— | ||
|
71960B
|
71960B
71960-52180-C0 Headrest Assy, Rear Seat, CenterREAR SEAT, CENTER [04.2003 - 12.2005] NCP31 BLACK,TRIM9# |
71960-52180-C0 |
US $299.94 |
||
|
71960B
|
71960B
71960-52230-B0
Headrest Assy, Rear Seat, Center
[12.2005 - 12.2006] NCP31 DK.GRAY,TRIM9# |
71960-52230-B0 |
— | ||
|
72601A
|
72601A
72601-52150
Striker Sub-Assy, Rear Seat Back Look, Rh
[04.2003 - 08.2003] NCP31 |
72601-52150 |
— | ||
|
72601A
|
72601A
72601-52151 Striker Sub-Assy, Rear Seat Back Look, RhREAR SEAT BACK LOOK, RH [08.2003 -] NCP31 |
72601-52151 |
US $58.39 |
||
|
72602A
|
72602A
72602-52070
Striker Sub-Assy, Rear Seat Back Lock, Lh
[04.2003 - 08.2003] NCP31 |
72602-52070 |
— | ||
|
72602A
|
72602A
72602-52071 Striker Sub-Assy, Rear Seat Back Lock, Lh[08.2003 -] NCP31 |
72602-52071 |
US $41.64 |
||
|
72630C
|
72630C
72630-52060 Lock Assy, Rear Seat Back, RhREAR SEAT BACK, RH [04.2003 -] NCP31 |
72630-52060 |
US $38.73 |
||
|
72640A
|
72640A
72640-52050 Lock Assy, Rear Seat Back, Lh[05.2004 -] NCP31 |
72640-52050 |
US $38.73 |
||
|
72640A
|
72640A
72640-52080 Lock Assy, Rear Seat Back, Lh[04.2003 - 04.2004] NCP31 |
72640-52080 |
US $32.03 |
||
|
72646
|
72646
72646-33010-B4 Grommet, Rear Seat Back Stop Button[04.2003 - 12.2006] NCP31 DK.GRAY,TRIM9# |
72646-33010-B4 |
US $5.53 |
||
|
72661C
|
72661C
72661-32030-B3 Button, Rear Seat Back Stop Release[04.2003 - 12.2006] NCP31 DK.GRAY,TRIM9# |
72661-32030-B3 |
from US $3.59 |
||
|
72693
|
72693
72693-10040 Hook, Rear Seat Cushion Lock[04.2003 -] NCP31 |
72693-10040 |
US $3.67 |
||
|
72996
|
72996
72996-60110-B2 Cover, Rear Seat BackREAR SEAT BACK, RH [04.2003 - 12.2006] NCP31 DK.GRAY,TRIM9# |
72996-60110-B2 |
US $10.05 |
||
|
72997
|
72997
72996-60110-B2 Cover, Rear Seat BackREAR SEAT BACK, RH [04.2003 - 12.2006] NCP31 DK.GRAY,TRIM9# |
72996-60110-B2 |
US $10.05 |
||
|
73705
|
73705
73705-52060 Bracket Sub-Assy, Child Restraint Seat Anchor, RhCHILD RESTRAINT SEAT ANCHOR, RH [04.2003 -] NCP31 |
73705-52060 |
US $221.31 |
||
|
91511G0818
|
91511G0818
91511-G0818 New Genuine Part |
91511-G0818 |
US $1.75 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.92 |
||
|
9010510474
|
9010510474
90105-10474 New Genuine Part |
90105-10474 |
US $1.75 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.92 |
||
|
9046709118
|
9046709118
90467-09118 Clip(For Hood Insulator) |
90467-09118 |
US $3.40 |
||
|
9046816019
|
9046816019
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9090119062
|
9090119062
90901-19062 New Genuine Part |
90901-19062 |
US $4.08 |
||
|
9151180816
|
9151180816
91511-80816 BOLTFLANGE |
91511-80816 |
US $1.61 |
||
