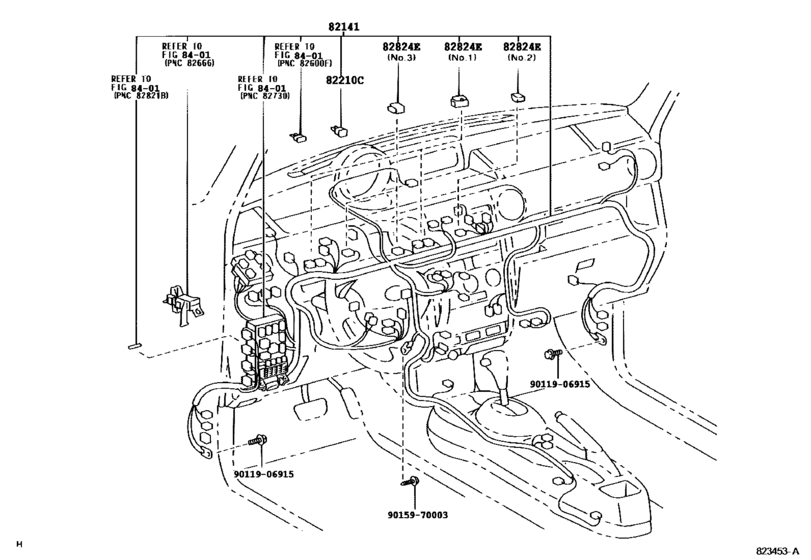

Wiring & Clamp ([04.2003 - ] INSTRUMENT PANEL (0304- )) Diagram Toyota SCION XB
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- NCP31
- body
- HB
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 04.2003
- To
- 12.2006
- Vehicle Model
- XB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-52T70
Wire, Instrument Panel
[07.2005 - 12.2005] NCP31 |
82141-52T70 |
— | ||
|
82141
|
82141
82141-52X90
Wire, Instrument Panel
[12.2005 -] NCP31 |
82141-52X90 |
— | ||
|
82141
|
82141
82141-5D140 Wire, Instrument PanelINSTRUMENT PANEL [04.2003 - 07.2005] NCP31 |
82141-5D140 |
US $1,688.96 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[04.2003 - 12.2006] NCP31 30A,TERMINAL:FEMALE,YAZAKI |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[04.2003 - 12.2006] NCP31 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[04.2003 - 12.2006] NCP31 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82824E
|
82824E
82824-12220 Connector, Wiring Harness[04.2003 -] NCP31 NO.1 |
82824-12220 |
US $25.63 |
||
|
82824E
|
82824E
82824-22080 Connector, Wiring Harness[04.2003 -] NCP31 NO.2 |
82824-22080 |
US $20.68 |
||
|
82824E
|
82824E
82824-30220 Connector, Wiring Harness[04.2003 -] NCP31 NO.3 |
82824-30220 |
US $20.24 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
