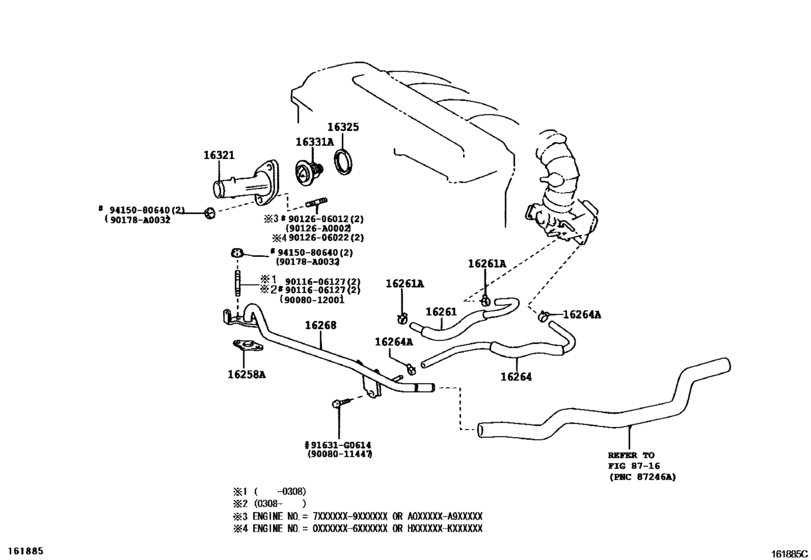

Radiator & Water Outlet ([07.2003 - 05.2006] (0307-0605)2AZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Frame
- ACV30
- grade
- SE
- body
- CP
- ENGINE
- 2AZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 03.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258A
|
16258A
16258-0H010
Gasket(For Heater Return)
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
16258-0H010 |
— | ||
|
16261
|
16261
16261-0H010
Hose, Water By-Pass
[07.2003 - 09.2003] 2AZFE..ACV30 |
16261-0H010 |
— | ||
|
16261A
|
16261A
96135-51300 Clamp, Hose[07.2003 - 09.2003] 2AZFE..ACV30 |
96135-51300 |
from US $1.86 |
||
|
16264
|
16264
16264-0H010
Hose, Water By-Pass, No.2
[07.2003 - 09.2003] 2AZFE..ACV30 |
16264-0H010 |
— | ||
|
16264A
|
16264A
96135-51300 Clamp, Hose[07.2003 - 09.2003] 2AZFE..ACV30 |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-0H010
Pipe, Water By-Pass, No.1
[07.2003 - 05.2006] 2AZFE..ACV30 *108 |
16268-0H010 |
— | ||
|
16321
|
16321
16321-0H010
Inlet, Water
[07.2003 - 12.2003] 2AZFE..ACV30 (L),*108 |
16321-0H010 |
— | ||
| replacement | |||||
|
16321
|
16321
16321-0H011
Inlet, Water
[07.2003 - 12.2003] 2AZFE..ACV30 (L),*108 |
16321-0H011 |
— | ||
|
16321
|
16321
16321-0H011
Inlet, Water
[12.2003 - 05.2006] 2AZFE..ACV30 (L),*108 |
16321-0H011 |
— | ||
|
16321
|
16321
16321-28020 Inlet, Water[07.2003 - 05.2006] 2AZFE..ACV30 (J),*108 |
16321-28020 |
from US $27.34 |
||
|
16325
|
16325
16325-28010 Gasket, Water Inlet Housing, No.1[08.2003 - 05.2006] 2AZFE..ACV30 *108 |
16325-28010 |
from US $3.76 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[07.2003 - 08.2003] 2AZFE..ACV30 *108 |
16325-62010 |
from US $3.95 |
||
|
16331A
|
16331A
90916-03084
Thermostat
[07.2003 - 09.2004] 2AZFE..ACV30 *WAX 82-95,*108; 3MZFE..MCV31 *WAX 82-95 |
90916-03084 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03129 Thermostat[07.2003 - 09.2004] 2AZFE..ACV30 *WAX 82-95,*108; 3MZFE..MCV31 *WAX 82-95 |
90916-03129 |
from US $19.38 |
||
|
16331A
|
16331A
90916-03125 Thermostat[09.2004 - 01.2005] 2AZFE..ACV30 *WAX 82-95,*108 |
90916-03125 |
from US $21.43 |
||
|
16331A
|
16331A
90916-03129 Thermostat[01.2005 - 10.2005] 2AZFE..ACV30 *WAX 82-95,*108 |
90916-03129 |
from US $19.38 |
||
|
90126A0002
|
90126A0002
90126-A0002
New Genuine Part
|
90126-A0002 |
— | ||
|
90178A0032
|
90178A0032
90178-A0032
New Genuine Part
|
90178-A0032 |
— | ||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9008011447
|
9008011447
90080-11447
New Genuine Part
|
90080-11447 |
— | ||
|
9008012001
|
9008012001
90080-12001 New Genuine Part |
90080-12001 |
US $1.16 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.18 |
||
|
9012606022
|
9012606022
90126-06022 STUD HEX LOBULAR |
90126-06022 |
US $3.32 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
