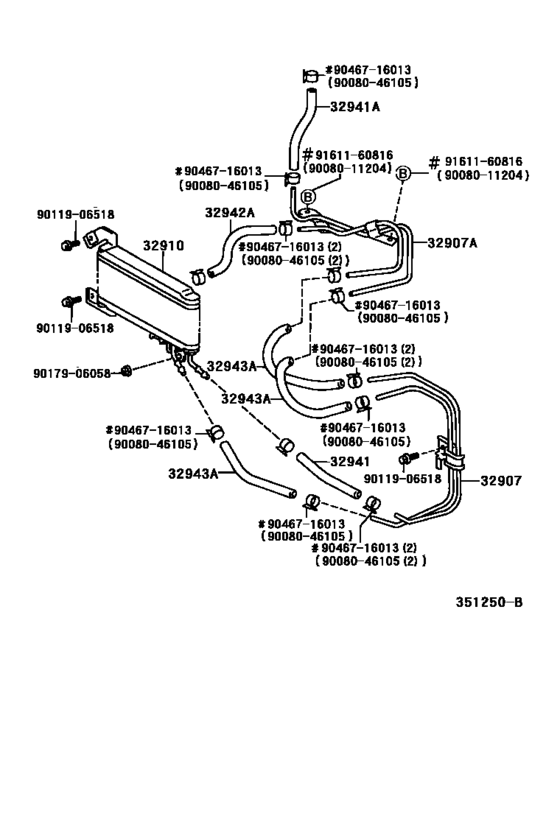

Oil Cooler & Tube (Atm) ([06.1998 - ] A541E,AIR COOLING OIL COOLER (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32907
|
32907
32907-33050
Tube Sub-Assy, Oil Cooler Outlet, No.2
[06.1998 - 12.2002] MCV20..ATM |
32907-33050 |
— | ||
|
32907A
|
32907A
32907-33090
Tube Sub-Assy, Oil Cooler
[06.1998 - 12.2002] MCV20..ATM |
32907-33090 |
— | ||
|
32910
|
32910
32910-33040 Cooler Assy, Oil[06.1998 - 12.2002] MCV20..ATM |
32910-33040 |
US $675.58 |
||
|
32941
|
32941
90445-17101 Hose, Oil Cooler Water Outlet[06.1998 - 12.2002] MCV20..ATM |
90445-17101 |
US $10.75 |
||
|
32941A
|
32941A
90445-17069 Hose, Oil Cooler Water Outlet[06.1998 - 12.2002] MCV20..ATM |
90445-17069 |
from US $9.73 |
||
|
32942A
|
32942A
90445-17151 Hose, Oil Cooler Tube(For Inlet)[06.1998 - 12.2002] MCV20..ATM |
90445-17151 |
US $8.60 |
||
|
32943A
|
32943A
90445-17139 Hose, Transmission Oil Cooler, No.2[06.1998 - 12.2002] MCV20..ATM |
90445-17139 |
US $7.43 |
||
|
9008011204
|
9008011204
90080-11204 New Genuine Part |
90080-11204 |
US $1.75 |
||
|
9008046105
|
9008046105
90080-46105
Clip(For Oil Cooler Hose)
|
90080-46105 |
— | ||
| replacement | |||||
|
9008046105
|
9008046105
90467-A0012 Clip(For Water Inlet Hose) |
90467-A0012 |
from US $1.84 |
||
|
9011906518
|
9011906518
90119-06518 BOLT W-WASHER |
90119-06518 |
from US $0.15 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9046716013
|
9046716013
90467-16013
Clip(For Oil Return Hose)
|
90467-16013 |
— | ||
| replacement | |||||
|
9046716013
|
9046716013
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
