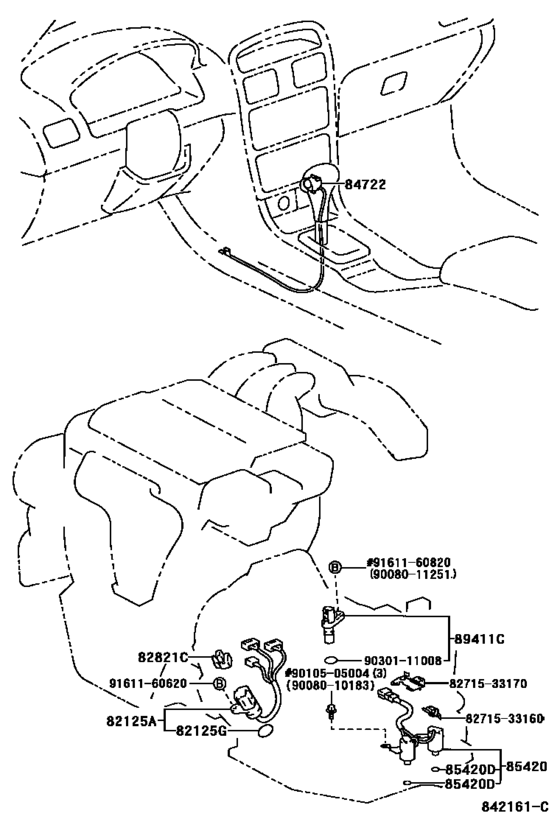

Overdrive & Electronic Controlled Transmission ([06.1998 - ] (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-33010 Wire, Transmission[06.1998 - 12.2002] MCV20..ATM |
82125-33010 |
US $29.41 |
||
|
82125G
|
82125G
90301-21009 Ring, O(For Transmission Wire)[06.1998 - 12.2002] ACV20,MCV20..ATM |
90301-21009 |
from US $2.17 |
||
|
82821C
|
82821C
82821-33050 Cover, Connector[06.1998 - 12.2002] MCV20..ATM |
82821-33050 |
US $7.28 |
||
|
84722
|
84722
84722-06030-C0
Switch, Transmission Control
[06.1998 - 08.1999] MCV20,SXV20..ATM BLACK,TRIM0#,1# |
84722-06030-C0 |
— | ||
|
84722
|
84722
84722-06040-C0
Switch, Transmission Control
[08.1999 - 12.2002] ACV20,MCV20,SXV20..ATM BLACK,TRIM0#,1# |
84722-06040-C0 |
— | ||
|
85420
|
85420
85420-33010 Solenoid Assy, Transmission[06.1998 - 12.2002] MCV20..ATM |
85420-33010 |
from US $264.99 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[06.1998 - 12.2002] MCV20..ATM |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89411-33010
Sensor, Speed
[06.1998 - 12.2002] MCV20..ATM TOYOTA |
89411-33010 |
— | ||
| replacement | |||||
|
89411C
|
89411C
89413-24010 Sensor, Speed[06.1998 - 12.2002] MCV20..ATM TOYOTA |
89413-24010 |
from US $86.89 |
||
|
89411C
|
89411C
89413-24010 Sensor, Speed[06.1998 - 12.2002] MCV20..ATM AISIN |
89413-24010 |
from US $86.89 |
||
|
8271533160
|
8271533160
82715-33160 Bracket,wiring Harness Clamp |
82715-33160 |
US $2.04 |
||
|
8271533170
|
8271533170
82715-33170 Bracket,wiring Harness Clamp |
82715-33170 |
from US $2.66 |
||
|
9008010183
|
9008010183
90080-10183
New Genuine Part
|
90080-10183 |
— | ||
|
9008011251
|
9008011251
90080-11251
Bolt (For Transfer Case Lower Protector)
|
90080-11251 |
— | ||
|
9010505004
|
9010505004
90105-05004 New Genuine Part |
90105-05004 |
US $1.02 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.87 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
