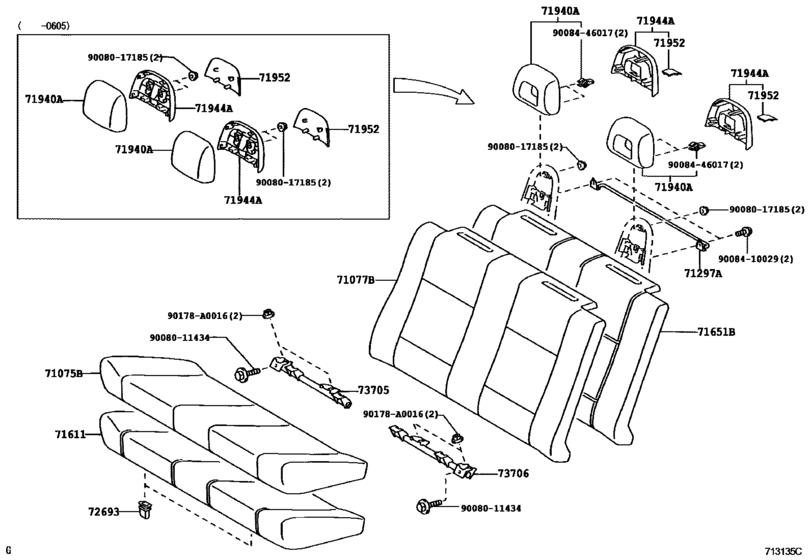

Rear Seat & Seat Track ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71075B
|
71075B
71075-06231-A2
Cover, Rear Seat Cushion (For Bench Type)
[02.2004 - 05.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71075-06231-A2 |
— | ||
|
71075B
|
71075B
71075-06231-B3
Cover, Rear Seat Cushion (For Bench Type)
[02.2004 - 05.2006] MCV31..CVT..SLE DARK STONE,TRIM1# |
71075-06231-B3 |
— | ||
|
71077B
|
71077B
71077-06250-A0
Cover, Rear Seat Back (For Bench Type)
[02.2004 - 08.2004] MCV31..CVT..SLE IVORY,TRIM0# |
71077-06250-A0 |
— | ||
| replacement | |||||
|
71077B
|
71077B
71077-06251-A0
Cover, Rear Seat Back (For Bench Type)
[02.2004 - 08.2004] MCV31..CVT..SLE IVORY,TRIM0# |
71077-06251-A0 |
— | ||
|
71077B
|
71077B
71077-06250-B0
Cover, Rear Seat Back (For Bench Type)
[02.2004 - 08.2004] MCV31..CVT..SLE DARK STONE,TRIM1# |
71077-06250-B0 |
— | ||
| replacement | |||||
|
71077B
|
71077B
71077-06251-B0
Cover, Rear Seat Back (For Bench Type)
[02.2004 - 08.2004] MCV31..CVT..SLE DARK STONE,TRIM1# |
71077-06251-B0 |
— | ||
|
71077B
|
71077B
71077-06251-A0
Cover, Rear Seat Back (For Bench Type)
[08.2004 - 05.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71077-06251-A0 |
— | ||
|
71077B
|
71077B
71077-06251-B0
Cover, Rear Seat Back (For Bench Type)
[08.2004 - 05.2006] MCV31..CVT..SLE DARK STONE,TRIM1# |
71077-06251-B0 |
— | ||
|
71077B
|
71077B
71077-06700-A0
Cover, Rear Seat Back (For Bench Type)
[05.2006 -] MCV31..CVT..SLE IVORY,TRIM0# |
71077-06700-A0 |
— | ||
|
71077B
|
71077B
71077-06700-B0
Cover, Rear Seat Back (For Bench Type)
[05.2006 -] MCV31..CVT..SLE DARK STONE,TRIM1# |
71077-06700-B0 |
— | ||
|
71297A
|
71297A
71297-06020
Wire, Rear Seat Back
[02.2004 - 05.2006] MCV31..CVT |
71297-06020 |
— | ||
|
71611
|
71611
71503-06070
Pad, Rear Seat Cushion
[02.2004 - 05.2006] MCV31..CVT |
71503-06070 |
— | ||
|
71651B
|
71651B
71507-06030
Pad, Rear Seat Back(For Bench Type)
[02.2004 - 05.2006] MCV31..CVT |
71507-06030 |
— | ||
|
71940A
|
71940A
71940-06180-A0
Headrest Assy, Rear Seat
[02.2004 - 08.2004] MCV31..CVT..SLE IVORY,TRIM0# |
71940-06180-A0 |
— | ||
| replacement | |||||
|
71940A
|
71940A
71940-06181-A0
Headrest Assy, Rear Seat
[02.2004 - 08.2004] MCV31..CVT..SLE IVORY,TRIM0# |
71940-06181-A0 |
— | ||
|
71940A
|
71940A
71940-06180-B0
Headrest Assy, Rear Seat
[02.2004 - 08.2004] MCV31..CVT..SLE DARK STONE,TRIM1# |
71940-06180-B0 |
— | ||
| replacement | |||||
|
71940A
|
71940A
71940-06181-B0
Headrest Assy, Rear Seat
[02.2004 - 08.2004] MCV31..CVT..SLE DARK STONE,TRIM1# |
71940-06181-B0 |
— | ||
|
71940A
|
71940A
71940-06181-A0
Headrest Assy, Rear Seat
[08.2004 - 05.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71940-06181-A0 |
— | ||
|
71940A
|
71940A
71940-06181-B0
Headrest Assy, Rear Seat
[08.2004 - 05.2006] MCV31..CVT..SLE DARK STONE,TRIM1# |
71940-06181-B0 |
— | ||
|
71940A
|
71940A
71940-06580-A0
Headrest Assy, Rear Seat
[05.2006 - 09.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71940-06580-A0 |
— | ||
|
71940A
|
71940A
71940-06580-B0
Headrest Assy, Rear Seat
[05.2006 - 09.2006] MCV31..CVT..SLE DARK STONE,TRIM1# |
71940-06580-B0 |
— | ||
|
71940A
|
71940A
71940-06581-A0
Headrest Assy, Rear Seat
[09.2006 -] MCV31..CVT..SLE IVORY,TRIM0# |
71940-06581-A0 |
— | ||
|
71940A
|
71940A
71940-06581-B0
Headrest Assy, Rear Seat
[09.2006 -] MCV31..CVT..SLE DARK STONE,TRIM1# |
71940-06581-B0 |
— | ||
|
71944A
|
71944A
71909-06010-A0
Plate, Rear Seat Headrest
[05.2006 -] MCV31..CVT IVORY,TRIM0# |
71909-06010-A0 |
— | ||
|
71944A
|
71944A
71909-06010-B0
Plate, Rear Seat Headrest
[05.2006 -] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
71909-06010-B0 |
— | ||
|
71944A
|
71944A
71944-06010-A0
Plate, Rear Seat Headrest
[02.2004 - 05.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71944-06010-A0 |
— | ||
|
71944A
|
71944A
71944-06010-B0
Plate, Rear Seat Headrest
[02.2004 - 05.2006] MCV31..CVT..SLE DK. STONE,TRIM1# |
71944-06010-B0 |
— | ||
|
71952
|
71952
71952-06010-A0
Cover, Rear Seat Headrest Plate
[02.2004 - 05.2006] MCV31..CVT..SLE IVORY,TRIM0# |
71952-06010-A0 |
— | ||
|
71952
|
71952
71952-06010-B0
Cover, Rear Seat Headrest Plate
[02.2004 - 05.2006] MCV31..CVT..SLE DK. STONE,TRIM1# |
71952-06010-B0 |
— | ||
|
71952
|
71952
71952-06020-A0
Cover, Rear Seat Headrest Plate
[05.2006 -] MCV31..CVT IVORY,TRIM0# |
71952-06020-A0 |
— | ||
|
71952
|
71952
71952-06020-B0
Cover, Rear Seat Headrest Plate
[05.2006 -] MCV31..CVT..SE DK. STONE,TRIM10; MCV31..CVT..SLE DK. STONE,TRIM1# |
71952-06020-B0 |
— | ||
|
72693
|
72693
72693-12080 Hook, Rear Seat Cushion Lock[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
72693-12080 |
from US $1.25 |
||
|
73705
|
73705
73705-06010
Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
[02.2004 - 07.2004] MCV31..CVT |
73705-06010 |
— | ||
| replacement | |||||
|
73705
|
73705
73705-06011
Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
[02.2004 - 07.2004] MCV31..CVT |
73705-06011 |
— | ||
|
73705
|
73705
73705-06011
Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
[08.2004 - 05.2006] MCV31..CVT |
73705-06011 |
— | ||
|
73706
|
73706
73706-06010
Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
[02.2004 - 07.2004] MCV31..CVT |
73706-06010 |
— | ||
| replacement | |||||
|
73706
|
73706
73706-06011
Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
[02.2004 - 07.2004] MCV31..CVT |
73706-06011 |
— | ||
|
73706
|
73706
73706-06011
Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
[08.2004 - 05.2006] MCV31..CVT |
73706-06011 |
— | ||
|
90178A0016
|
90178A0016
90178-A0016
New Genuine Part
|
90178-A0016 |
— | ||
|
9008011434
|
9008011434
90080-11434 New Genuine Part |
90080-11434 |
US $2.18 |
||
|
9008017185
|
9008017185
90080-17185
New Genuine Part
|
90080-17185 |
— | ||
|
9008410029
|
9008410029
90084-10029 New Genuine Part |
90084-10029 |
US $0.96 |
||
|
9008446017
|
9008446017
90084-46017 Clip(For Roof Console Box) |
90084-46017 |
US $0.35 |
||
