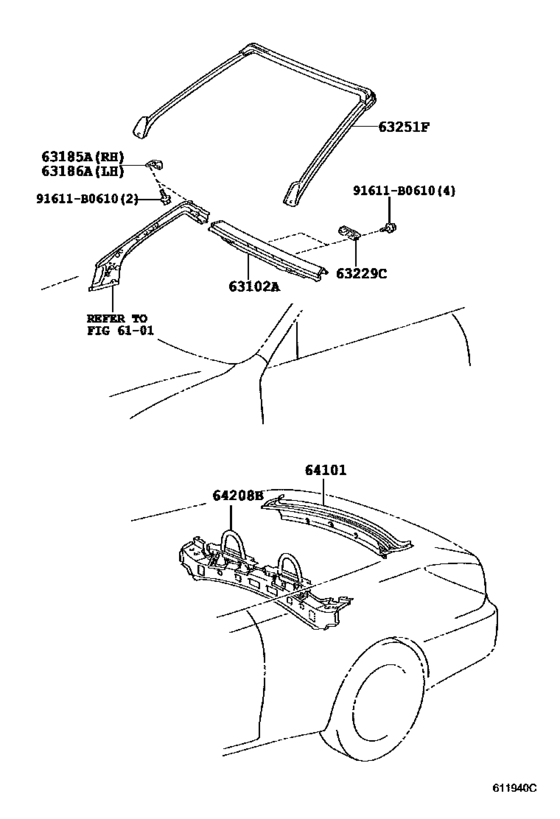

Roof Panel & Back Window Glass ([02.2004 - ] (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-06110
Panel Sub-Assy, Windshield Header
[02.2004 - 05.2006] MCV31..CVT |
63102-06110 |
— | ||
|
63185A
|
63185A
63185-06010
Bracket, Roof Rack, Front Rh
[02.2004 - 05.2006] MCV31..CVT |
63185-06010 |
— | ||
|
63186A
|
63186A
63186-06010
Bracket, Roof Rack, Front Lh
[02.2004 - 05.2006] MCV31..CVT |
63186-06010 |
— | ||
|
63229C
|
63229C
63229-06010
Bracket, Roof Headlining, No.2
[02.2004 - 05.2006] MCV31..CVT |
63229-06010 |
— | ||
|
63251F
|
63251F
63251-06040
Weatherstrip, Removable Roof, Front
[02.2004 - 05.2006] MCV31..CVT |
63251-06040 |
— | ||
|
64101
|
64101
64101-06130
Panel Sub-Assy, Upper Back
[02.2004 - 08.2004] MCV31..CVT |
64101-06130 |
— | ||
|
64101
|
64101
64101-06131
Panel Sub-Assy, Upper Back
[08.2004 - 05.2006] MCV31..CVT |
64101-06131 |
— | ||
|
64208B
|
64208B
64208-06010
Member Sub-Assy, Room Partition Cross
[02.2004 - 05.2006] MCV31..CVT |
64208-06010 |
— | ||
|
64208B
|
64208B
64208-06011
Member Sub-Assy, Room Partition Cross
[05.2006 -] MCV31..CVT |
64208-06011 |
— | ||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
