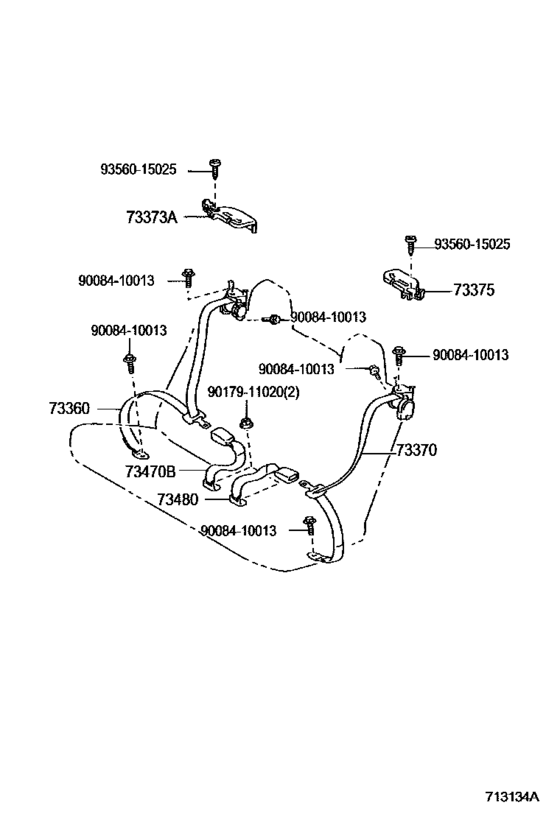

Seat Belt & Child Restraint Seat ([02.2004 - ] REAR (0402- )CVT) Diagram Toyota SOLARA
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CVT
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 02.2004
- To
- 12.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73360
|
73360
73360-06150-A0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
73360-06150-A0 |
— | ||
|
73360
|
73360
73360-06150-B0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM10; MCV31..CVT..SLE SHADOW GRAY,TRIM1# |
73360-06150-B0 |
— | ||
|
73360
|
73360
73360-06150-B1
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM11 |
73360-06150-B1 |
— | ||
|
73370
|
73370
73370-06110-A0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
73370-06110-A0 |
— | ||
|
73370
|
73370
73370-06110-B0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM10; MCV31..CVT..SLE SHADOW GRAY,TRIM1# |
73370-06110-B0 |
— | ||
|
73370
|
73370
73370-06110-B1
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM11 |
73370-06110-B1 |
— | ||
|
73373A
|
73373A
73373-06010-B1
Cover, Rear Seat Shoulder Belt, Rh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM1# |
73373-06010-B1 |
— | ||
|
73373A
|
73373A
73373-06010-E0
Cover, Rear Seat Shoulder Belt, Rh
[02.2004 - 08.2004] MCV31..CVT..SE ORCHID BROWN,TRIM00 |
73373-06010-E0 |
— | ||
|
73375
|
73375
73375-06010-B1
Cover, Rear Seat Shoulder Belt, Lh
[02.2004 - 05.2006] MCV31..CVT DK.GRAY,TRIM10,11 |
73375-06010-B1 |
— | ||
|
73375
|
73375
73375-06010-E0
Cover, Rear Seat Shoulder Belt, Lh
[02.2004 - 08.2004] MCV31..CVT..SE ORCHID BROWN,TRIM00 |
73375-06010-E0 |
— | ||
|
73470B
|
73470B
73470-06050-A0
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
73470-06050-A0 |
— | ||
|
73470B
|
73470B
73470-06050-B0
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM10; MCV31..CVT..SLE SHADOW GRAY,TRIM1# |
73470-06050-B0 |
— | ||
|
73470B
|
73470B
73470-06050-B1
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM11 |
73470-06050-B1 |
— | ||
|
73480
|
73480
73470-06050-A0
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT IVORY,TRIM0# |
73470-06050-A0 |
— | ||
|
73480
|
73480
73470-06050-B0
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM10; MCV31..CVT..SLE SHADOW GRAY,TRIM1# |
73470-06050-B0 |
— | ||
|
73480
|
73480
73470-06050-B1
Belt Assy, Rear Seat Inner W/center, Rh
[02.2004 - 05.2006] MCV31..CVT..SE SHADOW GRAY,TRIM11 |
73470-06050-B1 |
— | ||
|
9008410013
|
9008410013
90084-10013 Bolt |
90084-10013 |
US $1.14 |
||
|
9017911020
|
9017911020
90179-11020 New Genuine Part |
90179-11020 |
US $1.05 |
||
|
9356015025
|
9356015025
93560-15025 New Genuine Part |
93560-15025 |
US $1.60 |
