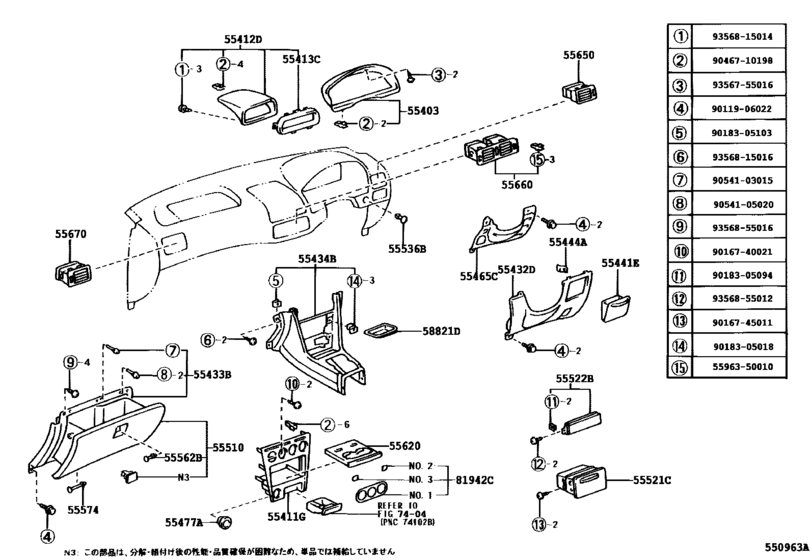

Instrument Panel & Glove Compartment ([04.1997 - ] (9704- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55403
|
55403
55403-12010 Hood Sub-Assy, Meter[04.1997 - 07.2002] AE11# |
55403-12010 |
US $71.64 |
||
|
55411G
|
55411G
55410-1A160 Panel, Instrument Cluster Finish, No.1[08.1995 - 04.1997] AE11# |
55410-1A160 |
US $186.37 |
||
|
55411G
|
55411G
55411-12905-B2
Panel, Instrument Cluster Finish, No.1
[04.1997 - 07.2002] AE111,115..BZT,ZTOUR SILVER,TRIM1# |
55411-12905-B2 |
— | ||
|
55412D
|
55412D
55405-12670 Panel, Instrument Cluster Finish, Center[08.1995 - 04.1997] AE11# |
55405-12670 |
US $45.72 |
||
|
55412D
|
55412D
55405-1A030-B0 Panel, Instrument Cluster Finish, Center[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR 1DIN,SHADOW GRAY,TRIM1# |
55405-1A030-B0 |
US $69.71 |
||
|
55412D
|
55412D
55405-1A050-B2
Panel, Instrument Cluster Finish, Center
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR 2DIN,SHADOW GRAY,TRIM1# |
55405-1A050-B2 |
— | ||
|
55413C
|
55413C
55413-12440 Panel, Instrument Cluster Finish, Center No.2[04.1997 - 07.2002] AE11# 1DIN |
55413-12440 |
US $15.72 |
||
|
55413C
|
55413C
55413-12460-B0
Panel, Instrument Cluster Finish, Center No.2
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR 2DIN,SHADOW GRAY,TRIM1# |
55413-12460-B0 |
— | ||
|
55432D
|
55432D
55432-12380-B0 Panel, Instrument Panel Finish, Lower No.1[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55432-12380-B0 |
US $131.04 |
||
|
55432D
|
55432D
55432-12410-B0 Panel, Instrument Panel Finish, Lower No.1[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55432-12410-B0 |
US $131.04 |
||
| replacement | |||||
|
55432D
|
55432D
55432-12420-B2 Panel, Instrument Panel Finish, Lower No.1[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55432-12420-B2 |
US $131.04 |
||
|
55432D
|
55432D
55432-12420-B0 Panel, Instrument Panel Finish, Lower No.1[04.1998 - 07.2002] AE11#..STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55432-12420-B0 |
US $131.04 |
||
| replacement | |||||
|
55432D
|
55432D
55432-12420-B2 Panel, Instrument Panel Finish, Lower No.1[04.1998 - 07.2002] AE11#..STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55432-12420-B2 |
US $131.04 |
||
|
55433B
|
55433B
55433-12110-B0 Panel, Instrument Panel Finish, Lower No.2[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55433-12110-B0 |
US $75.71 |
||
|
55433B
|
55433B
55433-12180-B0 Panel, Instrument Panel Finish, Lower No.2[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55433-12180-B0 |
US $100.46 |
||
|
55434B
|
55434B
55434-12150-B0 Panel, Instrument Panel Finish, Lower Center[05.1996 - 04.1997] AE111..ZTOUR SHADOW GRAY,TRIM16,17; AE111..BZT,STOUR SHADOW GRAY,TRIM1# |
55434-12150-B0 |
US $180.54 |
||
|
55434B
|
55434B
55434-12190-B0 Panel, Instrument Panel Finish, Lower Center[04.1997 - 07.2002] AE111..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55434-12190-B0 |
US $180.54 |
||
|
55441E
|
55441E
55441-12110-B0 Box, Instrument Panel[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55441-12110-B0 |
US $21.99 |
||
|
55441E
|
55441E
55441-12140-B0 Box, Instrument Panel[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55441-12140-B0 |
US $21.99 |
||
| replacement | |||||
|
55441E
|
55441E
55441-12140-B1 Box, Instrument Panel[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55441-12140-B1 |
US $22.13 |
||
|
55444A
|
55444A
55444-12050 Spring, Instrument Panel Box[08.1995 - 04.1997] AE11# |
55444-12050 |
US $2.91 |
||
|
55465C
|
55465C
55465-12070 Insert, Instrument Panel Lower Pad, Lh[04.1997 - 07.2002] AE11# |
55465-12070 |
US $19.36 |
||
|
55477A
|
55477A
55477-33010 Bezel, Cigar Lighter Hole[08.1995 - 04.1997] AE11# |
55477-33010 |
US $8.24 |
||
|
55510
|
55510
55550-12330-B0 Door Assy, Glove Compartment[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55550-12330-B0 |
US $182 |
||
|
55510
|
55510
55550-12380-B0 Door Assy, Glove Compartment[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55550-12380-B0 |
US $199.47 |
||
|
55521C
|
55521C
55520-12010-C0
Cover, Stereo Opening
[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55520-12010-C0 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55520-12010-B1 Cover, Stereo Opening[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55520-12010-B1 |
US $60.10 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[08.1995 - 04.1997] AE111,115..BZT,ZTOUR ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
55521-16030 |
from US $23.15 |
||
|
55521C
|
55521C
55521-16040
Cover, Stereo Opening
[08.1995 - 04.1997] AE11# |
55521-16040 |
— | ||
| replacement | |||||
|
55521C
|
55521C
55521-36020
Cover, Stereo Opening
[08.1995 - 04.1997] AE11# |
55521-36020 |
— | ||
|
55522B
|
55522B
55522-32010
Cover, Radio Tuner Opening
[08.1995 - 04.1997] AE11# |
55522-32010 |
— | ||
| replacement | |||||
|
55522B
|
55522B
55522-20070 Cover, Radio Tuner Opening[08.1995 - 04.1997] AE11# |
55522-20070 |
US $28.39 |
||
|
55536B
|
55536B
55536-12020-B0 Cover, Light Control Switch Hole[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55536-12020-B0 |
US $3.06 |
||
| replacement | |||||
|
55536B
|
55536B
55536-12020-B1 Cover, Light Control Switch Hole[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55536-12020-B1 |
US $3.06 |
||
|
55562B
|
55562B
55562-10010 Link, Glove Compartment Door Lock[04.1997 - 07.2002] AE11# |
55562-10010 |
US $1.28 |
||
|
55574
|
55574
55574-10010 Shaft, Glove Compartment Door Hinge[08.1995 - 04.1997] AE11# |
55574-10010 |
US $2.87 |
||
|
55620
|
55620
55604-12030-C0 Holder Assy, Instrument Panel Cup[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55604-12030-C0 |
US $77.17 |
||
| replacement | |||||
|
55620
|
55620
55604-12030-B1 Holder Assy, Instrument Panel Cup[04.1997 - 07.2002] AE111,115..BZT,ZTOUR BLACK,TRIM1# |
55604-12030-B1 |
US $77.17 |
||
|
55620
|
55620
55620-12070 Holder Assy, Instrument Panel Cup[08.1995 - 04.1997] AE11# |
55620-12070 |
US $50.96 |
||
|
55650
|
55650
55650-12210 Register Assy, Instrument Panel, No.1[08.1995 - 04.1997] AE11# |
55650-12210 |
US $48.48 |
||
|
55650
|
55650
55650-12240-B0
Register Assy, Instrument Panel, No.1
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55650-12240-B0 |
— | ||
|
55660
|
55660
55660-12250 Register Assy, Instrument Panel, No.2[08.1995 - 04.1997] AE11# |
55660-12250 |
US $113.57 |
||
|
55660
|
55660
55660-12290-B0
Register Assy, Instrument Panel, No.2
[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55660-12290-B0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-12290-B1
Register Assy, Instrument Panel, No.2
[04.1997 - 04.1998] AE11# SHADOW GRAY,TRIM1# |
55660-12290-B1 |
— | ||
|
55660
|
55660
55660-12300-B0 Register Assy, Instrument Panel, No.2[04.1998 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55660-12300-B0 |
US $113.57 |
||
| replacement | |||||
|
55660
|
55660
55660-12300-B1 Register Assy, Instrument Panel, No.2[04.1998 - 07.2002] AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
55660-12300-B1 |
US $113.57 |
||
|
55670
|
55670
55670-12230-B0 Register Assy, Instrument Panel, No.3[05.1996 - 04.1997] AE111,115..ZTOUR SHADOW GRAY,TRIM16,17; AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
55670-12230-B0 |
US $48.48 |
||
|
55670
|
55670
55670-12260-B0
Register Assy, Instrument Panel, No.3
[04.1997 - 07.2002] AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
55670-12260-B0 |
— | ||
|
81942C
|
81942C
81942-12550-C0 Sheet, Heater Control Name[04.1997 - 07.2002] AE111,115..BZT,ZTOUR ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ--ﾌﾟﾂｼﾕｼｷ & ｵ-ﾄｴｱｺﾝ),BLACK,TRIM1# |
81942-12550-C0 |
US $13.10 |
||
| replacement | |||||
|
81942C
|
81942C
81942-12490-B1 Sheet, Heater Control Name[04.1997 - 07.2002] AE111,115..BZT,ZTOUR ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ--ﾌﾟﾂｼﾕｼｷ & ｵ-ﾄｴｱｺﾝ),BLACK,TRIM1# |
81942-12490-B1 |
US $11.36 |
||
|
81942C
|
81942C
81942-12560-C0 Sheet, Heater Control Name[04.1997 - 07.2002] AE111,115..BZT,ZTOUR ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),BLACK,TRIM1# |
81942-12560-C0 |
US $13.10 |
||
| replacement | |||||
|
81942C
|
81942C
81942-12500-B1 Sheet, Heater Control Name[04.1997 - 07.2002] AE111,115..BZT,ZTOUR ｱﾘ(ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ---ﾌﾟﾂｼﾕｼｷ),BLACK,TRIM1# |
81942-12500-B1 |
US $11.36 |
||
|
5596350010
|
5596350010
55963-50010 Retainer, Side Defroster |
55963-50010 |
US $1.69 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9016740021
|
9016740021
90167-40021 SCREW |
90167-40021 |
from US $0.78 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9018305018
|
9018305018
90183-05018
Clip, Instrument Panel Finish, Lower Center
|
90183-05018 |
— | ||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046710198
|
9046710198
90467-10198 Clip(For Instrument Lower Cover) |
90467-10198 |
US $0.96 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.56 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $1.38 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356815016
|
9356815016
93568-15016
Sensor, Automatic Light Control
|
93568-15016 |
— | ||
| replacement | |||||
|
9356815016
|
9356815016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
