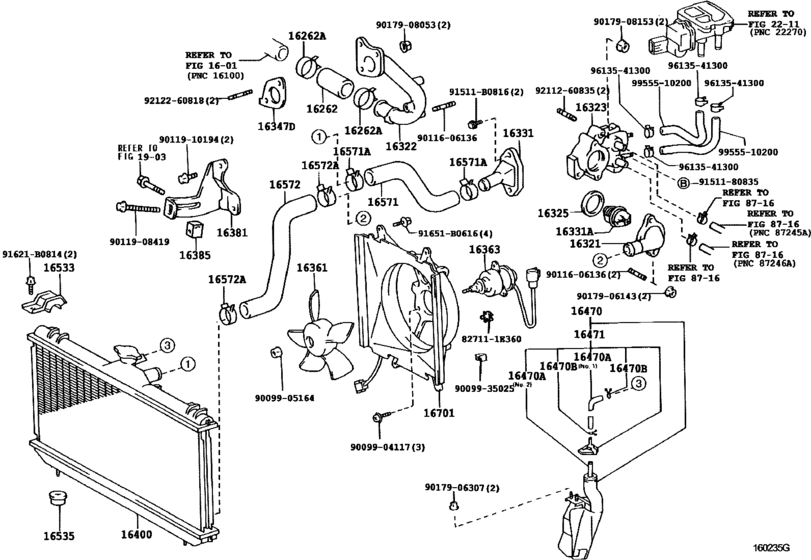

Radiator & Water Outlet ([08.1995 - ] (9508- )4AFE,7AFE) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1996 - 2002
- Sales region
- Japan
- Frame
- AE111
- grade
- ZTOUR
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 05.1996
- To
- 07.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16262
|
16262
16262-15040 Hose, Water Inlet[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16262-15040 |
US $12.23 |
||
| replacement | |||||
|
16262
|
16262
16262-16030 Hose, Water Inlet[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16262-16030 |
from US $10.06 |
||
|
16262
|
16262
16262-16030 Hose, Water Inlet[02.1998 - 07.2002] 4AFE,7AFE..AE11# |
16262-16030 |
from US $10.06 |
||
|
16262A
|
16262A
90467-37002
Clip(For Water Inlet Hose)
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-37002 |
— | ||
| replacement | |||||
|
16262A
|
16262A
90467-37005 Clip(For Water Inlet Hose)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-37005 |
from US $3.98 |
||
|
16321
|
16321
16321-15040 Inlet, Water[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16321-15040 |
from US $30.21 |
||
|
16322
|
16322
16322-15050 Pipe, Water Inlet[08.1995 - 04.1997] 4AFE..AE111,114 |
16322-15050 |
US $81.54 |
||
|
16323
|
16323
16323-15180 Housing, Water Inlet[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16323-15180 |
US $112.11 |
||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16325-63011 |
from US $3.88 |
||
|
16331
|
16331
16331-15080 Outlet, Water[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16331-15080 |
from US $11.04 |
||
|
16331A
|
16331A
90916-03046 Thermostat[08.1995 - 08.1996] 4AFE,7AFE..AE11# ＊ＷＡＸ ８２−９５ |
90916-03046 |
from US $22.27 |
||
|
16331A
|
16331A
90916-03109 Thermostat[08.1996 - 04.1997] 4AFE,7AFE..AE11# ＊ＷＡＸ ８２−９５ |
90916-03109 |
US $29.56 |
||
| replacement | |||||
|
16331A
|
16331A
90916-03115 Thermostat[08.1996 - 04.1997] 4AFE,7AFE..AE11# ＊ＷＡＸ ８２−９５ |
90916-03115 |
from US $22.68 |
||
|
16331A
|
16331A
90916-03115 Thermostat[03.1998 - 07.2002] 4AFE,7AFE..AE11# ＊ＷＡＸ ８２−９５ |
90916-03115 |
from US $22.68 |
||
|
16347D
|
16347D
16347-15010 Gasket, Water By-Pass[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16347-15010 |
from US $0.76 |
||
|
16361
|
16361
16361-63020
Fan
[08.1995 - 04.1997] 4AFE,7AFE..AE11#..4FC |
16361-63020 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-74070 Fan[08.1995 - 04.1997] 4AFE,7AFE..AE11#..4FC |
16361-74070 |
US $60.13 |
||
|
16363
|
16363
16363-74030
Motor, Cooling Fan
[08.1995 - 04.1997] 4AFE,7AFE..AE11#..4FC |
16363-74030 |
— | ||
|
16381
|
16381
16381-15080 Bar, Fan Belt Adjusting[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16381-15080 |
US $26.21 |
||
|
16385
|
16385
16385-15020
Slider, Fan Belt Adjusting
[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16385-15020 |
— | ||
| replacement | |||||
|
16385
|
16385
16385-15030 Slider, Fan Belt Adjusting[08.1995 - 04.1997] 4AFE,7AFE..AE11# |
16385-15030 |
US $15.05 |
||
|
16400
|
16400
16400-15511
Radiator Assy
[05.1996 - 04.1997] 4AFE..AE111..4FC |
16400-15511 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-16710 Radiator Assy[05.1996 - 04.1997] 4AFE..AE111..4FC |
16400-16710 |
from US $605.70 |
||
|
16400
|
16400
16400-16701 Radiator Assy[04.1998 - 07.2002] 4AFE..AE111..4FC |
16400-16701 |
US $645.01 |
||
| replacement | |||||
|
16400
|
16400
16400-16710 Radiator Assy[04.1998 - 07.2002] 4AFE..AE111..4FC |
16400-16710 |
from US $605.70 |
||
|
16400
|
16400
16400-16710 Radiator Assy[04.1997 - 04.1998] 4AFE..AE111..4FC |
16400-16710 |
from US $605.70 |
||
|
16470
|
16470
16470-15090
Tank Assy, Radiator Reserve
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
16470-15090 |
— | ||
|
16470
|
16470
16470-15100
Tank Assy, Radiator Reserve
[04.1997 - 07.2002] 4A#,7AFE..AE11# |
16470-15100 |
— | ||
|
16470A
|
16470A
16478-15090
Hose Or Pipe(For Radiator Reserve Tank)
[08.1995 - 04.1997] 4A#,7AFE..AE11# ＮＯ．１ |
16478-15090 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1995 - 04.1997] 4A#,7AFE..AE11# ＮＯ．２ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-15100
Cap Sub-Assy, Reserve Tank
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
16405-15100 |
— | ||
|
16533
|
16533
16533-02020
Support, Radiator, Upper
[08.1995 - 04.1997] 4A#,7AFE..AE11# -15120 TO DOUTOU |
16533-02020 |
— | ||
|
16533
|
16533
16533-15120 Support, Radiator, Upper[08.1995 - 04.1997] 4A#,7AFE..AE11# -02020 TO DOUTOU |
16533-15120 |
from US $28.74 |
||
|
16535
|
16535
90916-04002 Support, Radiator, Lower[08.1995 - 04.1997] 4A#..AE111;4AFE,7AFE..AE114,115..5F 東海ゴム |
90916-04002 |
from US $10.10 |
||
|
16535
|
16535
90916-04003 Support, Radiator, Lower[08.1995 - 04.1997] 4A#..AE111;4AFE,7AFE..AE114,115..5F TOYOTA GOUSEI |
90916-04003 |
US $4.89 |
||
|
16535
|
16535
90916-04006 Support, Radiator, Lower[04.1997 - 07.2002] 4AFE..AE111,114;7AFE..AE115..5F |
90916-04006 |
US $4.89 |
||
|
16571
|
16571
16571-15160 Hose, Radiator, Inlet[08.1995 - 04.1997] 4AFE..AE111,114 |
16571-15160 |
from US $18.12 |
||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-34004 |
from US $3.41 |
||
|
16572
|
16572
16572-15210 Hose, Radiator, Outlet[08.1995 - 04.1997] 4AFE..AE111,114 |
16572-15210 |
from US $26.21 |
||
|
16572A
|
16572A
90467-34003
Clip(For Oil Return Hose)
[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-34003 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1995 - 04.1997] 4A#,7AFE..AE11# |
90467-34004 |
from US $3.41 |
||
|
16701
|
16701
16711-15281 Shroud Sub-Assy, Fan[08.1995 - 04.1997] 4AFE,7AFE..AE11#..4FC |
16711-15281 |
US $94.64 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
91621B0814
|
91621B0814
91621-B0814
Bolt (For Transmission Control Cable Bracket)
|
91621-B0814 |
— | ||
| replacement | |||||
|
91621B0814
|
91621B0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.62 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9009935025
|
9009935025
90099-35025
New Genuine Part
|
90099-35025 |
— | ||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.33 |
||
|
9011908419
|
9011908419
90119-08419 BOLT |
90119-08419 |
US $5.02 |
||
|
9011910194
|
9011910194
90119-10194 New Genuine Part |
90119-10194 |
US $2.04 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9017906307
|
9017906307
90179-06307 New Genuine Part |
90179-06307 |
US $1.60 |
||
| replacement | |||||
|
9017906307
|
9017906307
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.44 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9151180835
|
9151180835
91511-80835 Bolt(For Transaxle Case & Engine Setting) |
91511-80835 |
US $1.75 |
||
| replacement | |||||
|
9151180835
|
9151180835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.84 |
||
|
9211260835
|
9211260835
92112-60835 Bolt, Stud(For Cylinder Head Cover Set) |
92112-60835 |
US $3.40 |
||
|
9212260818
|
9212260818
92122-60818 Bolt, Stud(For Water Pump Pulley Seat) |
92122-60818 |
US $2.87 |
||
|
9613541300
|
9613541300
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
96135-41300 |
— | ||
| replacement | |||||
|
9613541300
|
9613541300
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9955510200
|
9955510200
99555-10200 Hose, Water By-Pass |
99555-10200 |
from US $5.13 |
||
