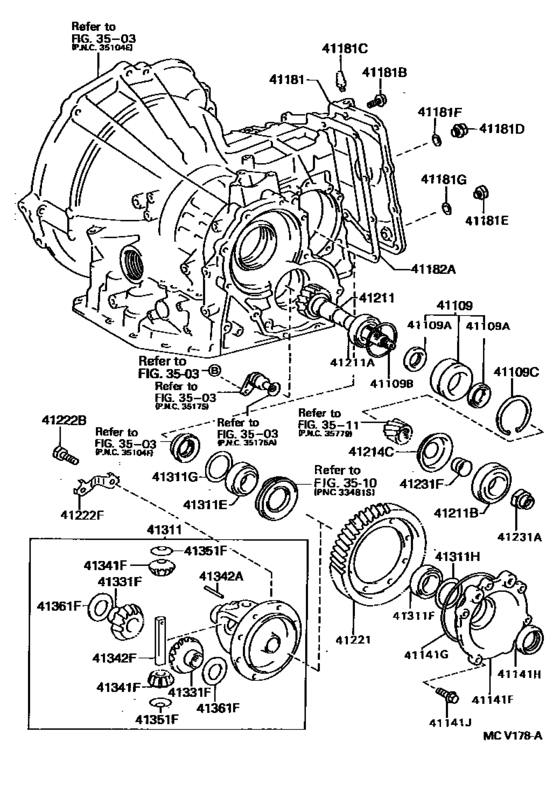

Front Axle Housing & Differential ([01.1996 - ] A132L (9601- )3FC) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41109
|
41109
41109-20011
Cage Sub-Assy, Differential Drive Pinion Bearing
[01.1996 - 07.1999] EP9#..3FC |
41109-20011 |
— | ||
|
41109A
|
41109A
90310-34005 Seal, Oil (For Differential Drive Pinion Bearing Cage)[01.1996 - 07.1999] EP9#..3FC |
90310-34005 |
US $3.58 |
||
|
41109B
|
41109B
90301-65003 Ring, O (For Differential Drive Pinion Bearing Cage)[01.1996 - 07.1999] EP9#..3FC |
90301-65003 |
US $9.26 |
||
|
41109C
|
41109C
90521-76002
Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)
[01.1996 - 07.1999] EP9#..3FC |
90521-76002 |
— | ||
|
41141F
|
41141F
41141-12020 Retainer, Rear Differential Side Bearing[01.1996 - 03.1998] EP9#..3FC |
41141-12020 |
US $84.45 |
||
| replacements | |||||
|
41141F
|
41141F
41141-12021 Retainer, Front Differential Side Bearing[01.1996 - 03.1998] EP9#..3FC |
41141-12021 |
US $84.45 |
||
|
41141F
|
41141F
90311-34022 Seal, Type T Oil, No.1(For Cvt)[01.1996 - 03.1998] EP9#..3FC |
90311-34022 |
from US $4.30 |
||
|
41141F
|
41141F
41141-12021 Retainer, Front Differential Side Bearing[03.1998 - 07.1999] EP9#..3FC |
41141-12021 |
US $84.45 |
||
|
41141G
|
41141G
90301-99026 Ring, O(For Rear Differential Side Bearing Retainer)[01.1996 - 07.1999] EP9#..3FC |
90301-99026 |
US $4.66 |
||
| replacement | |||||
|
41141G
|
41141G
90301-99142 Ring, O (For Brake Piston No.4)[01.1996 - 07.1999] EP9#..3FC |
90301-99142 |
US $4.40 |
||
|
41141H
|
41141H
90311-34012 Oil Seal[01.1996 - 03.1998] EP9#..3FC |
90311-34012 |
from US $6.27 |
||
|
41141H
|
41141H
90311-34022 Seal, Type T Oil, No.1(For Cvt)[03.1998 - 07.1999] EP9#..3FC |
90311-34022 |
from US $4.30 |
||
|
41141J
|
41141J
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[01.1996 - 07.1999] EP9#..3FC *8-1.25PX25-25 |
91611-60825 |
— | ||
| replacement | |||||
|
41141J
|
41141J
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[01.1996 - 07.1999] EP9#..3FC *8-1.25PX25-25 |
91611-B0825 |
from US $1.11 |
||
|
41181
|
41181
41181-12020 Cover, Front Differential Carrier[01.1996 - 07.1999] EP9#..3FC |
41181-12020 |
US $47.90 |
||
|
41181B
|
41181B
90105-08062 Bolt (For Overdrive Case & Transaxle Case Setting)[01.1996 - 07.1999] EP9#..3FC *8-1.25PX29-24 |
90105-08062 |
US $2.34 |
||
|
41181C
|
41181C
90930-03031 Plug, Breather(For Parking Cover)[01.1996 - 07.1999] EP9#..3FC |
90930-03031 |
from US $6.34 |
||
|
41181D
|
41181D
90341-18006 Plug (No magnet)[01.1996 - 07.1999] EP9#..3FC |
90341-18006 |
from US $3.23 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[01.1996 - 07.1999] EP9#..3FC |
90341-18021 |
from US $2.32 |
||
|
41181F
|
41181F
90430-18008 Gasket[01.1996 - 07.1999] EP9#..3FC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181F
|
41181F
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1996 - 07.1999] EP9#..3FC |
90430-T0021 |
US $1.01 |
||
|
41181G
|
41181G
90430-18008 Gasket[01.1996 - 07.1999] EP9#..3FC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1996 - 07.1999] EP9#..3FC |
90430-T0021 |
US $1.01 |
||
|
41182A
|
41182A
41182-12010 Gasket, Differential Carrier Cover[01.1996 - 07.1999] EP9#..3FC |
41182-12010 |
US $3.64 |
||
|
41211
|
41211
41211-20200
Pinion, Differential Drive
[01.1996 - 07.1999] EP90..3FC |
41211-20200 |
— | ||
|
41211A
|
41211A
90366-35084 Bearing, Tapered Roller (For Front Drive Pinion Front)[01.1996 - 07.1999] EP9#..3FC |
90366-35084 |
US $24.11 |
||
|
41211B
|
41211B
90366-40010 Bearing (For Rear Drive Pinion Front)[01.1996 - 07.1999] EP9#..3FC |
90366-40010 |
from US $31.01 |
||
|
41214C
|
41214C
41214-32010 Slinger, Rear Differential Drive Pinion Oil[01.1996 - 07.1999] EP9#..3FC |
41214-32010 |
US $3.20 |
||
|
41221
|
41221
41221-12160 Gear, Front Differential Ring[10.1997 - 07.1999] EP90..3FC |
41221-12160 |
US $186.37 |
||
| replacements | |||||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[10.1997 - 07.1999] EP90..3FC |
90105-11040 |
US $2.33 |
||
|
41221
|
41221
41221-52281 Gear, Front Differential Ring[10.1997 - 07.1999] EP90..3FC |
41221-52281 |
US $102.14 |
||
|
41221
|
41221
41221-12310 Gear, Front Differential Ring[01.1996 - 10.1997] EP90..3FC |
41221-12310 |
US $157.25 |
||
| replacements | |||||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[01.1996 - 10.1997] EP90..3FC |
90105-11040 |
US $2.33 |
||
|
41221
|
41221
41221-52281 Gear, Front Differential Ring[01.1996 - 10.1997] EP90..3FC |
41221-52281 |
US $102.14 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[01.1996 - 07.1999] EP9#..3FC |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[01.1996 - 07.1999] EP9#..3FC |
41222-12050 |
US $3.49 |
||
|
41231A
|
41231A
90179-20004 Nut(For Counter Driven Gear)[01.1996 - 07.1999] EP9#..3FC |
90179-20004 |
US $4.69 |
||
|
41231F
|
41231F
41231-32010
Spacer, Rear Differential Drive Pinion Bearing
[01.1996 - 07.1999] EP9#..3FC |
41231-32010 |
— | ||
|
41311
|
41311
41301-12051 Case, Front Differential[01.1996 - 07.1999] EP9#..3FC |
41301-12051 |
US $464.46 |
||
|
41311E
|
41311E
90366-38014 Bearing, Tapered Roller (For Front Differential Case Front)[03.1997 - 07.1999] EP9#..3FC |
90366-38014 |
US $18.93 |
||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[01.1996 - 03.1997] EP9#..3FC |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90366-38014 Bearing, Tapered Roller (For Front Differential Case Front)[03.1997 - 07.1999] EP9#..3FC |
90366-38014 |
US $18.93 |
||
|
41311F
|
41311F
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[01.1996 - 03.1997] EP9#..3FC |
90368-38002 |
US $15.72 |
||
|
41311G
|
41311G
90201-41002 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.60 |
90201-41002 |
US $5.39 |
||
|
41311G
|
41311G
90201-41003 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.65 |
90201-41003 |
US $5.39 |
||
|
41311G
|
41311G
90201-41004 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.70 |
90201-41004 |
US $5.39 |
||
|
41311G
|
41311G
90201-41005 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.75 |
90201-41005 |
US $5.39 |
||
|
41311G
|
41311G
90201-41006 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.80 |
90201-41006 |
US $5.39 |
||
|
41311G
|
41311G
90201-41007 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.85 |
90201-41007 |
US $5.39 |
||
|
41311G
|
41311G
90201-41008
Washer, Plate (For Front Differential Case Front)
[01.1996 - 07.1999] EP9#..3FC T=1.90 |
90201-41008 |
— | ||
|
41311G
|
41311G
90201-41009 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=1.95 |
90201-41009 |
US $5.39 |
||
|
41311G
|
41311G
90201-41010 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.00 |
90201-41010 |
US $5.39 |
||
|
41311G
|
41311G
90201-41011 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.05 |
90201-41011 |
US $5.39 |
||
|
41311G
|
41311G
90201-41012 Washer, Plate (For Front Differential Case Front)[01.1996 - 05.1998] EP9# T=2.10 |
90201-41012 |
US $5.39 |
||
|
41311G
|
41311G
90201-41013 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.15 |
90201-41013 |
US $5.39 |
||
|
41311G
|
41311G
90201-41014 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.20 |
90201-41014 |
US $5.39 |
||
|
41311G
|
41311G
90201-41015
Washer, Plate (For Front Differential Case Front)
[01.1996 - 07.1999] EP9#..3FC T=2.25 |
90201-41015 |
— | ||
|
41311G
|
41311G
90201-41016 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.30 |
90201-41016 |
US $5.39 |
||
|
41311G
|
41311G
90201-41017 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.35 |
90201-41017 |
US $5.39 |
||
|
41311G
|
41311G
90201-41018 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.40 |
90201-41018 |
US $5.39 |
||
|
41311G
|
41311G
90201-41019 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.45 |
90201-41019 |
US $5.39 |
||
|
41311G
|
41311G
90201-41020
Washer, Plate (For Front Differential Case Front)
[01.1996 - 07.1999] EP9#..3FC T=2.50 |
90201-41020 |
— | ||
|
41311G
|
41311G
90201-41021
Washer, Plate (For Front Differential Case Front)
[01.1996 - 07.1999] EP9#..3FC T=2.55 |
90201-41021 |
— | ||
|
41311G
|
41311G
90201-41022 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.60 |
90201-41022 |
US $5.39 |
||
|
41311G
|
41311G
90201-41023 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.65 |
90201-41023 |
US $5.39 |
||
|
41311H
|
41311H
90201-41012 Washer, Plate (For Front Differential Case Front)[01.1996 - 07.1999] EP9#..3FC T=2.10 |
90201-41012 |
US $5.39 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[01.1996 - 07.1999] EP9#..3FC |
41331-12011 |
from US $32.15 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[01.1996 - 07.1999] EP9#..3FC |
41341-12030 |
US $23.06 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[01.1996 - 07.1999] EP9#..3FC |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[01.1996 - 07.1999] EP9#..3FC |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[01.1996 - 07.1999] EP9#..3FC |
41351-12020 |
from US $1.41 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=0.95 |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=1.00 |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=1.05 |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=1.10 |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=1.15 |
41361-17050 |
US $2.62 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 12.1997] EP9#..3FC T=1.20 |
41361-17060 |
US $2.62 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=1.00,MARK 02 |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=1.10,MARK 03 |
41361-22030 |
US $2.80 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=1.20,MARK 04 |
41361-22040 |
from US $3.92 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=0.95,MARK 14 |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=1.05,MARK 15 |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 08.1997] EP9#..3FC T=1.15,MARK 16 |
41361-22160 |
US $2.62 |
||
