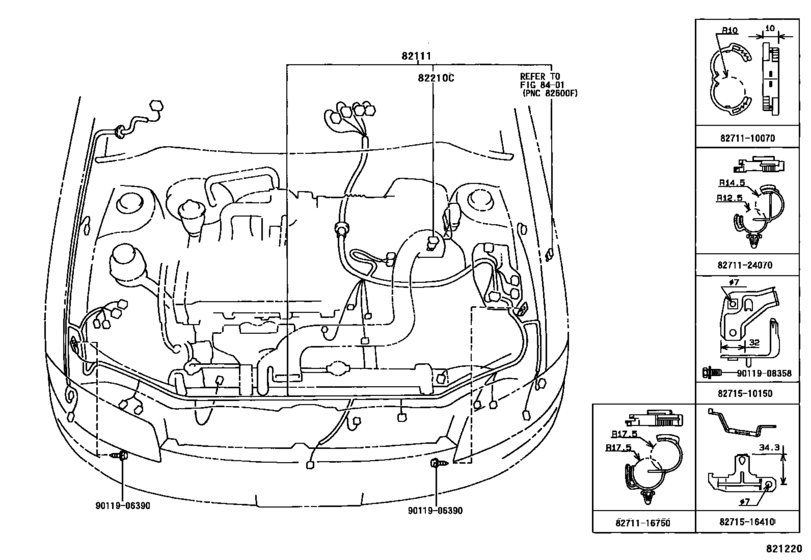

Wiring & Clamp ([01.1996 - ] ENGINE ROOM WIRE (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-1C130 Wire, Engine Room MainENGINE ROOM MAIN [01.1996 - 04.1996] EP90..RHD..MTM |
82111-1C130 |
US $417.87 |
||
|
82111
|
82111
82111-1C131 Wire, Engine Room MainENGINE ROOM MAIN [04.1996 - 04.1997] EP90..RHD..MTM |
82111-1C131 |
US $417.87 |
||
|
82111
|
82111
82111-1C132 Wire, Engine Room MainENGINE ROOM MAIN [04.1997 - 12.1997] EP90..RHD..MTM |
82111-1C132 |
US $457.18 |
||
|
82111
|
82111
82111-1C150 Wire, Engine Room MainENGINE ROOM MAIN [01.1996 - 04.1996] EP90..RHD..MTM W(ABS) |
82111-1C150 |
US $537.26 |
||
|
82111
|
82111
82111-1C151 Wire, Engine Room MainENGINE ROOM MAIN [04.1996 - 04.1997] EP90..RHD..MTM W(ABS) |
82111-1C151 |
US $578.03 |
||
|
82111
|
82111
82111-1C152 Wire, Engine Room MainENGINE ROOM MAIN [04.1997 - 12.1997] EP90..RHD..MTM W(ABS) |
82111-1C152 |
US $540.18 |
||
|
82111
|
82111
82111-1C550 Wire, Engine Room MainENGINE ROOM MAIN [12.1997 -] EP90..RHD |
82111-1C550 |
US $457.18 |
||
|
82111
|
82111
82111-1C560 Wire, Engine Room MainENGINE ROOM MAIN [12.1997 -] EP90..RHD W(AIR CONDITIONER & BOOST VENTILATOR OR MANUAL AIR CONDITIONER---DIAL TYPE) |
82111-1C560 |
US $540.18 |
||
|
82111
|
82111
82111-1C570 Wire, Engine Room MainENGINE ROOM MAIN [12.1997 -] EP90..RHD W(ABS) |
82111-1C570 |
US $620.26 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[01.1996 -] EP9# 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[01.1996 -] EP9# 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[01.1996 -] EP9# 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[01.1996 -] EP9# 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
8271110070
|
8271110070
82711-10070 Clamp, Wiring Harness |
82711-10070 |
US $3.20 |
||
|
8271116750
|
8271116750
82711-16750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-16750 |
US $5.42 |
||
|
8271124070
|
8271124070
82711-24070 Clamp(For Hood Lock Control Cable) |
82711-24070 |
US $3.94 |
||
|
8271510150
|
8271510150
82715-10150 Bracket,wiring Harness Clamp |
82715-10150 |
US $10.05 |
||
|
8271516410
|
8271516410
82715-16410 Bracket,wiring Harness Clamp |
82715-16410 |
US $7.28 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011908358
|
9011908358
90119-08358 BOLT WWASHER |
90119-08358 |
US $2.33 |
||
| replacement | |||||
|
9011908358
|
9011908358
91621-G0816 BOLT WWASHER |
91621-G0816 |
US $2.51 |
||
