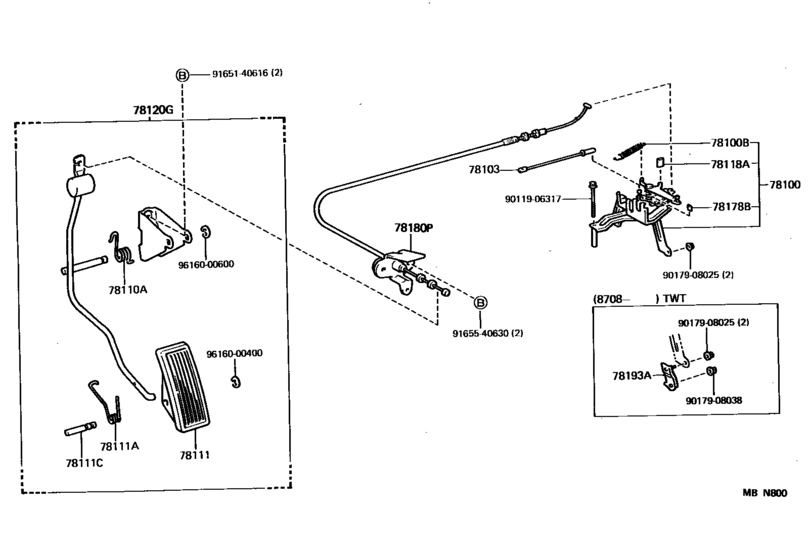

Accelerator Link ([08.1988 - ] (8808- )LHD) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGTE
- TRANSMISSION
- ATM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-14081
Link Assy, Accelerator
[08.1988 - 05.1993] MA70..LHD..4FC..C |
78100-14081 |
— | ||
|
78100B
|
78100B
90507-09001
Spring,tension (For Accelerator Link)
[08.1988 - 05.1993] MA70..LHD |
90507-09001 |
— | ||
|
78103
|
78103
78103-14240
Rod Sub-Assy, Accelerator Connecting, No.1
[08.1988 - 05.1993] MA70..LHD..4FC..C |
78103-14240 |
— | ||
|
78110A
|
78110A
90508-18060 Spring (For Accelerator Pedal Rod)[08.1988 - 05.1993] MA70..4FC;MA70..LHD..5F |
90508-18060 |
US $1.44 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1988 - 05.1993] MA70 |
78111-12100 |
from US $20.50 |
||
|
78111A
|
78111A
90508-23088 Spring (For Accelerator Pedal)[08.1988 - 05.1993] MA70 |
90508-23088 |
US $1.40 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1988 - 05.1993] MA70 |
90249-05001 |
US $3.32 |
||
|
78118A
|
78118A
78118-12010 Stopper, Accelerator Link[08.1988 - 05.1993] MA70..LHD |
78118-12010 |
US $3.20 |
||
|
78120G
|
78120G
78120-14481 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1988 - 05.1993] MA70..LHD |
78120-14481 |
US $49.50 |
||
|
78178B
|
78178B
78178-14010
Damper, Accel Control No.4 Rod Bracket
[08.1988 - 05.1993] MA70..LHD..4FC..C |
78178-14010 |
— | ||
|
78180P
|
78180P
78180-1B050
Wire Assy, Accelerator
[08.1988 - 05.1993] MA70..LHD..TWT |
78180-1B050 |
— | ||
|
78193A
|
78193A
78193-14020
Support, Accelerator Control Cable, No.3
[08.1988 - 05.1993] MA70..LHD..TWT |
78193-14020 |
— | ||
|
9011906317
|
9011906317
90119-06317 New Genuine Part |
90119-06317 |
US $2.18 |
||
| replacement | |||||
|
9011906317
|
9011906317
91611-60665 New Genuine Part |
91611-60665 |
US $1.31 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165540630
|
9165540630
91655-40630 New Genuine Part |
91655-40630 |
US $1.89 |
||
| replacement | |||||
|
9165540630
|
9165540630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
