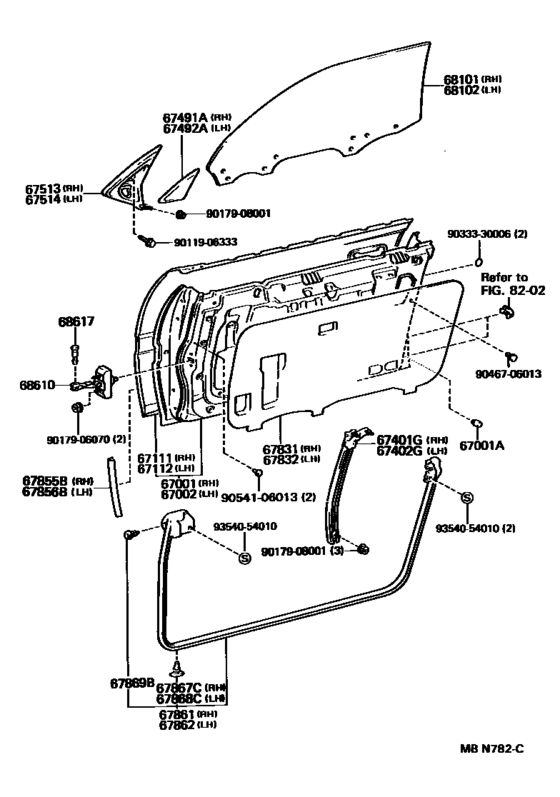

Front Door Panel & Glass ([08.1988 - ] (8808- )) Diagram Toyota SUPRA
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1989
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-14330 Panel Sub-Assy, Front Door, Rh[08.1988 - 08.1991] MA70..LB..(C,EUR,GEN) |
67001-14330 |
US $1,042.50 |
||
|
67001
|
67001
67001-14340
Panel Sub-Assy, Front Door, Rh
[08.1991 - 05.1993] MA70..LB |
67001-14340 |
— | ||
|
67001A
|
67001A
90541-09051
Cushion, Front Door Panel
[08.1988 - 08.1991] MA70..C,EUR,GEN; MA70..ARL,V |
90541-09051 |
— | ||
|
67002
|
67002
67002-14360 Panel Sub-Assy, Front Door, Lh[08.1988 - 08.1991] MA70..LB..(C,EUR,GEN) |
67002-14360 |
US $1,042.50 |
||
|
67002
|
67002
67002-14370
Panel Sub-Assy, Front Door, Lh
[08.1991 - 05.1993] MA70..LB |
67002-14370 |
— | ||
|
67111
|
67111
67111-14220
Panel, Front Door, Outer Rh
[08.1988 - 05.1993] MA70 |
67111-14220 |
— | ||
|
67112
|
67112
67112-14230
Panel, Front Door, Outer Lh
[08.1988 - 05.1993] MA70 |
67112-14230 |
— | ||
|
67401G
|
67401G
67401-14230 Frame Sub-Assy, Front Door, Front Lower Rh[08.1988 - 05.1993] MA70 |
67401-14230 |
US $59.55 |
||
|
67402G
|
67402G
67402-14220 Frame Sub-Assy, Front Door, Front Lower Lh[08.1988 - 05.1993] MA70 |
67402-14220 |
US $59.55 |
||
|
67491A
|
67491A
67491-14111
Garnish, Front Door Lower Frame Bracket, Rh
[08.1988 - 05.1993] MA70 |
67491-14111 |
— | ||
|
67492A
|
67492A
67492-14111
Garnish, Front Door Lower Frame Bracket, Lh
[08.1988 - 05.1993] MA70 |
67492-14111 |
— | ||
|
67513
|
67513
67513-14012
Bracket, Front Door Mirror, Rh
[08.1988 - 05.1993] MA70 |
67513-14012 |
— | ||
|
67514
|
67514
67514-14012
Bracket, Front Door Mirror, Lh
[08.1988 - 05.1993] MA70 |
67514-14012 |
— | ||
|
67831
|
67831
67831-14180
Cover, Front Door Service Hole, Rh
[08.1988 - 08.1990] MA70..C,EUR,GEN |
67831-14180 |
— | ||
|
67831
|
67831
67831-14190 Cover, Front Door Service Hole, Rh[08.1990 - 08.1991] MA70..C,GEN |
67831-14190 |
US $18.20 |
||
|
67832
|
67832
67832-14090
Cover, Front Door Service Hole, Lh
[08.1988 - 08.1990] MA70..C,EUR,GEN |
67832-14090 |
— | ||
|
67832
|
67832
67832-14100 Cover, Front Door Service Hole, Lh[08.1990 - 08.1991] MA70..C,GEN |
67832-14100 |
US $18.20 |
||
|
67855B
|
67855B
67855-14010 Protector, Front Door Panel, RhFRONT DOOR PANEL, RH [08.1988 - 05.1993] MA70..C,EUR |
67855-14010 |
US $5.39 |
||
| replacement | |||||
|
67855B
|
67855B
58743-14010
Protecter, Front Fender Panel, Rh
[08.1988 - 05.1993] MA70..C,EUR |
58743-14010 |
— | ||
|
67856B
|
67856B
67855-14010 Protector, Front Door Panel, RhFRONT DOOR PANEL, RH [08.1988 - 05.1993] MA70..C,EUR |
67855-14010 |
US $5.39 |
||
| replacement | |||||
|
67856B
|
67856B
58743-14010
Protecter, Front Fender Panel, Rh
[08.1988 - 05.1993] MA70..C,EUR |
58743-14010 |
— | ||
|
67861
|
67861
67861-14300
Weatherstrip, Front Door, Rh
[08.1988 - 05.1993] MA70 |
67861-14300 |
— | ||
|
67862
|
67862
67862-14300
Weatherstrip, Front Door, Lh
[08.1988 - 05.1993] MA70 |
67862-14300 |
— | ||
|
67867C
|
67867C
67868-20130 Retainer, Front Door Weatherstrip, Rh[07.1989 - 05.1993] MA70 |
67868-20130 |
US $3.23 |
||
|
67868C
|
67868C
67868-20130 Retainer, Front Door Weatherstrip, Rh[07.1989 - 05.1993] MA70 |
67868-20130 |
US $3.23 |
||
|
67869B
|
67869B
67869-30020 Clip, Headlamp Door Filler[08.1988 - 05.1993] MA70 |
67869-30020 |
US $3.94 |
||
|
68101
|
68101
68111-14330
Glass Sub-Assy, Front Door, Rh
[08.1988 - 05.1993] MA70 *TT,T=5.0 |
68111-14330 |
— | ||
|
68102
|
68102
68112-14340
Glass Sub-Assy, Front Door, Lh
[08.1988 - 05.1993] MA70 *TT,T=5.0 |
68112-14340 |
— | ||
|
68610
|
68610
68610-14060
Check Assy, Front Door
[08.1988 - 05.1993] MA70 |
68610-14060 |
— | ||
|
68617
|
68617
68617-50010 Pin(For Front Door Check)[02.1991 - 05.1993] MA70 |
68617-50010 |
from US $1.76 |
||
|
68617
|
68617
68617-90K00 Pin(For Front Door Check)[08.1988 - 02.1991] MA70 |
68617-90K00 |
from US $2.89 |
||
|
9011906333
|
9011906333
90119-06333
New Genuine Part
|
90119-06333 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9033330006
|
9033330006
90333-30006 New Genuine Part |
90333-30006 |
US $1.75 |
||
|
9046706013
|
9046706013
90467-06013 Plug, Hole (For Visor) |
90467-06013 |
US $2.33 |
||
|
9054106013
|
9054106013
90541-06013 Cushion, Front Door Panel |
90541-06013 |
US $1.46 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $2.15 |
||
