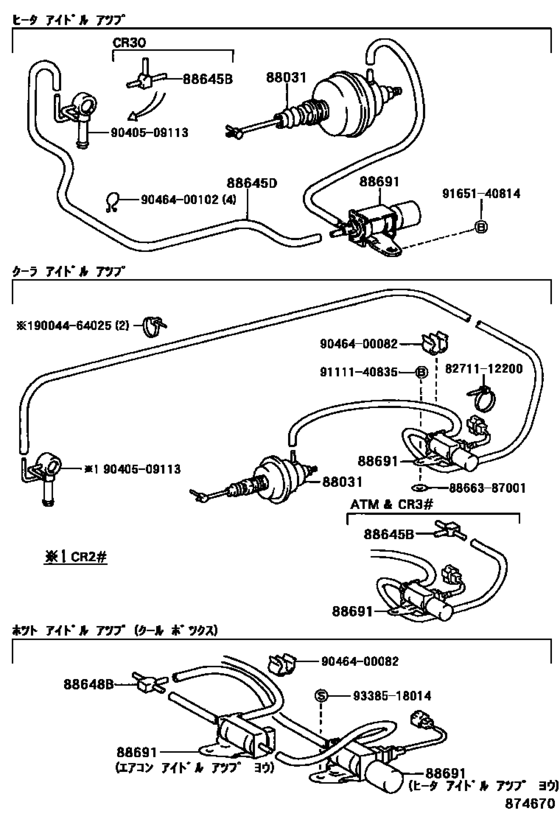

Heating & Air Conditioning - Vacuum Piping ([08.1988 - ] (8808- )CR2#,3#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- N
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V5D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-27040
Actuator Set, Idle-Up
[08.1988 - 08.1990] CR27,30,36..5F;CR21..5F..(E,G,Q); CR21,28,37..B,D,F;CR21,27,30,36..4FC |
88031-27040 |
— | ||
|
88031
|
88031
88031-28020
Actuator Set, Idle-Up
[08.1988 - 08.1990] CR27,36..5F ｱﾘ(ﾌﾛﾝﾄ ｼﾝｸﾞﾙ ｴｱｺﾝ) |
88031-28020 |
— | ||
|
88645B
|
88645B
90413-04001 Way, 3(For Transfer Breather Hose)[08.1988 - 12.1988] CR27,30,36..5F;CR21..5F..(E,G,Q); CR27..4FC ｱﾘ(ﾌﾛﾝﾄ ｼﾝｸﾞﾙ ｴｱｺﾝ); CR21..4FC..Q ｱﾘ(ﾃﾞﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ); CR21..4FC..08S ｱﾘ(ﾃﾞﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ﾋ-ﾀ) |
90413-04001 |
US $5.56 |
||
|
88648B
|
88648B
82711-12200 Clamp (For Fuel Lid Lock Control Cable)[08.1988 -] CR2#,3#,KR2#,YR2#,3# |
82711-12200 |
US $2.15 |
||
|
88691
|
88691
88690-87036
Valve, Magnet (For Idle Up Device)
[08.1988 - 08.1990] CR27,36..5F; CR27..4FC ｱﾘ(ﾌﾛﾝﾄ ｼﾝｸﾞﾙ ｴｱｺﾝ) |
88690-87036 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8866387001
|
8866387001
88663-87001
Spacer (for Cooler Idler Pulley And Belt)
|
88663-87001 |
— | ||
|
9004464025
|
9004464025
90044-64025 Clamp, Wiring Harness |
90044-64025 |
US $3.06 |
||
|
9040509113
|
9040509113
90405-09113 Union, Vacuum Hose(For Vacuum Pump) |
90405-09113 |
US $7.43 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9111140835
|
9111140835
91111-40835 New Genuine Part |
91111-40835 |
US $4.22 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9338518014
|
9338518014
93385-18014
New Genuine Part
|
93385-18014 |
— | ||
