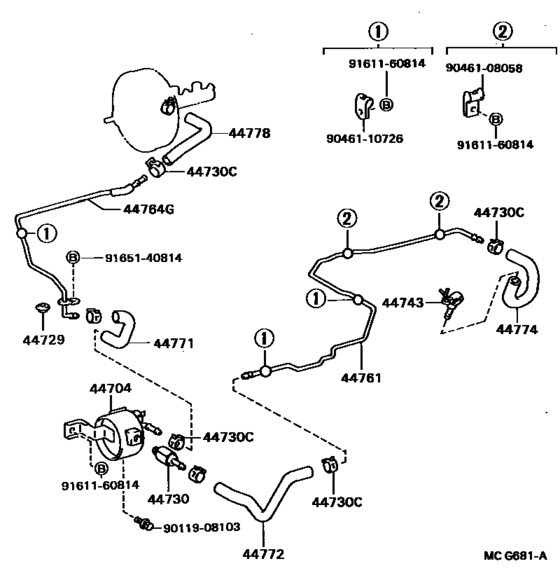

Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )CR2#,3#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- D
- body
- V
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-28030 Reservoir Sub-Assy, Vacuum[08.1988 - 01.1992] CR2#,3# |
44704-28030 |
US $82.99 |
||
|
44729
|
44729
44729-25010 Gasket, Vacuum Tube[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
44729-25010 |
US $3.93 |
||
|
44730
|
44730
44730-60040 Booster Kit, Brake[08.1988 - 08.1990] CR2#,3# |
44730-60040 |
US $77.93 |
||
|
44730
|
44730
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1990 - 01.1992] CR2#,3# |
44730-60050 |
from US $22.85 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1988 - 01.1992] CR2#,3#,YR20 |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1988 - 01.1992] CR2#,3#,YR20 |
96133-41500 |
from US $2.32 |
||
|
44743
|
44743
90405-09113 Union, Vacuum Hose(For Vacuum Pump)[08.1988 - 01.1992] CR3#;CR2#..4FC; CR2#..5F ｱﾘ(ｴｱｺﾝ) |
90405-09113 |
US $7.43 |
||
|
44761
|
44761
44761-28100 Tube, Intake Manifold Or Vacuum Pump To Connector[08.1988 - 01.1992] CR2#,3# |
44761-28100 |
US $48.63 |
||
|
44764G
|
44764G
44764-28040 Tube, Booster Vacuum[08.1988 - 01.1992] CR2#,3# |
44764-28040 |
US $30.43 |
||
|
44771
|
44771
44771-28030 Hose, Vacuum Tube Connector[08.1988 - 01.1992] CR2#,3# |
44771-28030 |
US $13.25 |
||
| replacement | |||||
|
44771
|
44771
44771-28070 Hose, Vacuum Tube Connector[08.1988 - 01.1992] CR2#,3# |
44771-28070 |
US $19.22 |
||
|
44772
|
44772
44772-28030 Hose, Check Valve To Connector Tube[08.1988 - 01.1992] CR2#,3# |
44772-28030 |
US $15.87 |
||
|
44774
|
44774
44774-28100 Hose, Union To Connector Tube[08.1988 - 01.1992] CR2#,3# |
44774-28100 |
US $17.33 |
||
| replacement | |||||
|
44774
|
44774
44774-28151
Hose, Union To Connector Tube
[08.1988 - 01.1992] CR2#,3# |
44774-28151 |
— | ||
|
44778
|
44778
44778-28010 Hose, Connector To Check Valve[08.1988 - 01.1992] CR27,28,KR2#,YR25,28 |
44778-28010 |
US $13.54 |
||
|
9011908103
|
9011908103
90119-08103 New Genuine Part |
90119-08103 |
US $1.61 |
||
|
9046108058
|
9046108058
90461-08058 New Genuine Part |
90461-08058 |
US $7.28 |
||
|
9046110726
|
9046110726
90461-10726 New Genuine Part |
90461-10726 |
US $3.64 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
