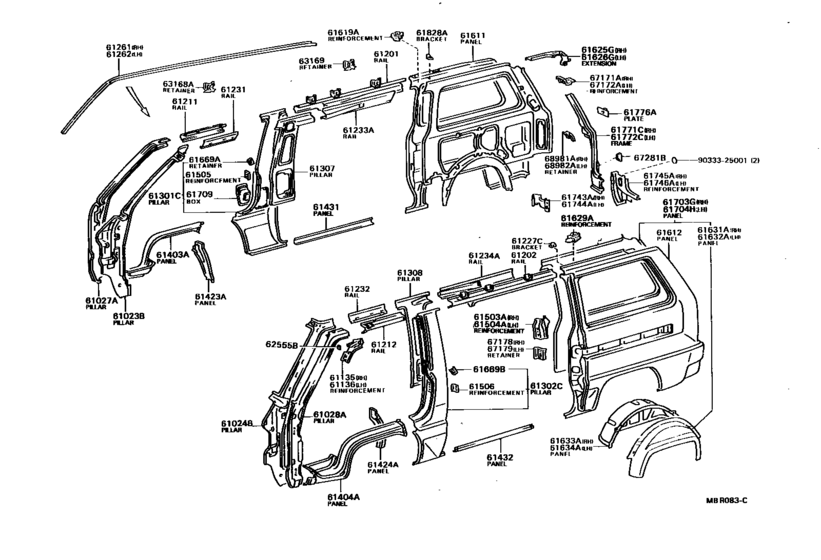

Side Member ([08.1988 - ] (8808- )V5D) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- CR27
- grade
- D
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1990
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- V5D
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-87020 Pillar Sub-Assy, Front Body, Inner Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N |
61023-87020 |
US $409.14 |
||
|
61024B
|
61024B
61024-87017 Pillar Sub-Assy, Front Body, Inner Lh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D |
61024-87017 |
US $320.32 |
||
|
61024B
|
61024B
61024-87019 Pillar Sub-Assy, Front Body, Inner Lh[08.1988 - 01.1992] CR2#,30,36,YR20,21,25,30..E,F,G,N; CR2#,36,37,KR2#,YR20,25,28,36..B,D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
61024-87019 |
US $409.14 |
||
|
61027A
|
61027A
61027-87010 Pillar Sub-Assy, Front Body, Outer Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# ﾀｳﾝｴ-ｽ |
61027-87010 |
US $409.14 |
||
|
61028A
|
61028A
61028-87016 Pillar Sub-Assy, Front Body, Outer Lh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N |
61028-87016 |
US $409.14 |
||
|
61135
|
61135
61135-87002 Reinforcement, Front Body Pillar, Upper Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61135-87002 |
US $18.78 |
||
|
61136
|
61136
61136-87002 Reinforcement, Front Body Pillar, Upper Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61136-87002 |
US $18.78 |
||
|
61201
|
61201
61201-87005 Rail Sub-Assy, Roof Side, Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D..HRF |
61201-87005 |
US $147.06 |
||
| replacement | |||||
|
61201
|
61201
61201-28090 Rail Sub-Assy, Roof Side, Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D..HRF |
61201-28090 |
US $170.35 |
||
|
61202
|
61202
61202-87013 Rail Sub-Assy, Roof Side, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..HRF..(B,D,E,G,N) |
61202-87013 |
US $147.06 |
||
| replacement | |||||
|
61202
|
61202
61202-28090 Rail Sub-Assy, Roof Side, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..HRF..(B,D,E,G,N) |
61202-28090 |
US $170.35 |
||
|
61211
|
61211
61211-87005 Rail, Roof Side, Outer Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N; CR21,YR21..Q ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
61211-87005 |
US $40.33 |
||
|
61212
|
61212
61212-87007 Rail, Roof Side, Outer Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N; CR21,YR21..Q ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
61212-87007 |
US $40.33 |
||
|
61227C
|
61227C
61227-87001 Bracket, Rear Door Rail[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61227-87001 |
US $5.82 |
||
|
61231
|
61231
61231-87002 Rail, Roof Side, Inner Rh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D |
61231-87002 |
US $61.30 |
||
|
61232
|
61232
61232-87002 Rail, Roof Side, Inner Lh[08.1988 - 01.1992] CR2#,36,37,KR2#,YR20,25,28,36..B,D |
61232-87002 |
US $84.45 |
||
|
61233A
|
61233A
61233-87002 Rail, Roof Side, Inner No.2 Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61233-87002 |
US $96.10 |
||
|
61234A
|
61234A
61234-87002 Rail, Roof Side, Inner No.2 Lh[03.1989 - 01.1992] CR36..5F;CR36..4FC..D;CR2#,37,KR2#,YR20,25,28,36..B,D,N |
61234-87002 |
US $96.10 |
||
|
61261
|
61261
61261-87005 Channel, Roof Drip, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61261-87005 |
US $82.99 |
||
|
61262
|
61262
61262-87005 Channel, Roof Drip, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61262-87005 |
US $82.99 |
||
|
61301C
|
61301C
61301-87004 Pillar, Center Body, Outer Rh[08.1988 - 01.1992] CR27,KR2#,YR25..V5D |
61301-87004 |
US $477.57 |
||
| replacement | |||||
|
61301C
|
61301C
61301-28070 Pillar, Center Body, Outer RhCENTER BODY, OUTER RH [08.1988 - 01.1992] CR27,KR2#,YR25..V5D |
61301-28070 |
US $481.94 |
||
|
61302C
|
61302C
61302-87003 Pillar, Center Body, Outer Lh[08.1988 - 01.1992] CR27,KR2#,YR25 |
61302-87003 |
US $477.57 |
||
| replacement | |||||
|
61302C
|
61302C
61302-87012 Pillar Sub-Assy, Center Body, Outer Lh[08.1988 - 01.1992] CR27,KR2#,YR25 |
61302-87012 |
US $477.57 |
||
|
61307
|
61307
61307-87017 Pillar Sub-Assy, Center Body, Inner Rh[08.1988 - 01.1992] CR27,36..V5D;YR25..V5D..N |
61307-87017 |
US $372.74 |
||
|
61307
|
61307
61307-87021 Pillar Sub-Assy, Center Body, Inner Rh[08.1988 - 01.1992] CR27,36..V5D;YR25..V5D..N ｶﾝﾚｲﾁ ｼﾖｳ |
61307-87021 |
US $372.74 |
||
| replacement | |||||
|
61307
|
61307
61307-87017 Pillar Sub-Assy, Center Body, Inner Rh[08.1988 - 01.1992] CR27,36..V5D;YR25..V5D..N ｶﾝﾚｲﾁ ｼﾖｳ |
61307-87017 |
US $372.74 |
||
|
61308
|
61308
61308-87031 Pillar Sub-Assy, Center Body, Inner Lh[08.1988 - 01.1992] CR27,36,YR25..02S,05S |
61308-87031 |
US $372.74 |
||
|
61308
|
61308
61308-87041 Pillar Sub-Assy, Center Body, Inner Lh[08.1988 - 01.1992] CR27,36,YR25..02S,05S ｶﾝﾚｲﾁ ｼﾖｳ |
61308-87041 |
US $372.74 |
||
|
61403A
|
61403A
61403-87008 Panel Sub-Assy, Fender, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61403-87008 |
US $327.60 |
||
| replacement | |||||
|
61403A
|
61403A
61403-87007 Panel Sub-Assy, Fender, RhFENDER, RH [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61403-87007 |
US $331.97 |
||
|
61404A
|
61404A
61404-87007 Panel Sub-Assy, Fender, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61404-87007 |
US $327.60 |
||
| replacement | |||||
|
61404A
|
61404A
61404-87006 Panel Sub-Assy, Fender, LhFENDER, LH [08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61404-87006 |
US $331.97 |
||
|
61423A
|
61423A
61423-87001 Panel, Fender, Inner Lower Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61423-87001 |
US $46.30 |
||
|
61424A
|
61424A
61424-87001 Panel, Fender, Inner Lower Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61424-87001 |
US $46.01 |
||
|
61431
|
61431
61431-87001 Panel, Rocker, Outer Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61431-87001 |
US $32.76 |
||
|
61432
|
61432
61431-87001 Panel, Rocker, Outer Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61431-87001 |
US $32.76 |
||
|
61503A
|
61503A
61503-87001 Reinforce Sub-Assy, Slide Door Lock Striker, Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61503-87001 |
US $26.21 |
||
|
61504A
|
61504A
61504-87001 Reinforce Sub-Assy, Slide Door Lock Striker, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61504-87001 |
US $41.20 |
||
|
61505
|
61505
61505-87001 Reinforce Sub-Assy, Front Door Lock Striker, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61505-87001 |
US $11.50 |
||
|
61506
|
61506
61505-87001 Reinforce Sub-Assy, Front Door Lock Striker, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61505-87001 |
US $11.50 |
||
|
61611
|
61611
61611-87017 Panel, Quarter, Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61611-87017 |
US $739.65 |
||
|
61612
|
61612
61612-87009 Panel, Quarter, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N |
61612-87009 |
US $739.65 |
||
|
61625G
|
61625G
61625-87007 Extension, Quarter Panel Rear, Rh[08.1988 - 01.1992] CR36..V4D..HRF..D;CR27,28,37,KR2#,YR25,28,36..HRF..(B,D) |
61625-87007 |
US $160.16 |
||
| replacement | |||||
|
61625G
|
61625G
61625-87006 Extension, Quarter Panel Rear, Rh[08.1988 - 01.1992] CR36..V4D..HRF..D;CR27,28,37,KR2#,YR25,28,36..HRF..(B,D) |
61625-87006 |
US $225.68 |
||
|
61625G
|
61625G
61625-87008 Extension, Quarter Panel Rear, Rh[08.1988 - 01.1992] CR2#,30,36,YR20,21,25,30..HRF..(E,F,G,N,Q); CR27,28,36,37,KR2#,YR25,28,36..HRF..(B,D) ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
61625-87008 |
US $160.16 |
||
| replacement | |||||
|
61625G
|
61625G
61625-87006 Extension, Quarter Panel Rear, Rh[08.1988 - 01.1992] CR2#,30,36,YR20,21,25,30..HRF..(E,F,G,N,Q); CR27,28,36,37,KR2#,YR25,28,36..HRF..(B,D) ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
61625-87006 |
US $225.68 |
||
|
61626G
|
61626G
61626-87004 Extension, Quarter Panel, Rear Lh[08.1988 - 01.1992] CR21,YR20..MRF..(D,G); CR2#,3#,KR2#,YR2#,3#..HRF |
61626-87004 |
US $160.16 |
||
|
61631A
|
61631A
61631-87003 Panel, Quarter Wheel House, Outer Rh[11.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61631-87003 |
US $96.10 |
||
|
61632A
|
61632A
61632-87005 Panel, Quarter Wheel House, Outer Lh[01.1990 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61632-87005 |
US $96.10 |
||
|
61633A
|
61633A
61633-87003 Panel, Quarter Wheel House, Inner Rh[08.1988 - 01.1992] CR27,28,36,37,KR2#,YR25,28,36 |
61633-87003 |
US $164.53 |
||
|
61634A
|
61634A
61634-87003 Panel, Quarter Wheel House, Inner Lh[08.1988 - 01.1992] CR27,28,36,37,KR2#,YR25,28,36 |
61634-87003 |
US $164.53 |
||
|
61703G
|
61703G
61703-87K45 Panel Sub-Assy, Quarter, Inner Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D..HRF |
61703-87K45 |
US $481.94 |
||
|
61704H
|
61704H
61704-87068 Panel Sub-Assy, Quarter, Inner Lh[08.1988 - 01.1992] CR27,36,KR2#,YR25..HRF |
61704-87068 |
US $481.94 |
||
|
61709
|
61709
61709-87007 Box Sub-Assy, Fuel Inlet[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61709-87007 |
US $56.64 |
||
| replacement | |||||
|
61709
|
61709
61709-28010 Box Sub-Assy, Fuel InletFUEL INLET [08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61709-28010 |
US $57.37 |
||
|
61743A
|
61743A
61743-87001 Reinforcement, Back Door Opening Side, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61743-87001 |
US $29.27 |
||
|
61744A
|
61744A
61744-87001 Reinforcement, Back Door Opening Side, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61744-87001 |
US $29.27 |
||
|
61745A
|
61745A
61745-87001 Reinforcement, Back Door Opening, Lower Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61745-87001 |
US $84.45 |
||
|
61746A
|
61746A
61746-87001 Reinforcement, Back Door Opening, Lower Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61746-87001 |
US $84.45 |
||
|
61771C
|
61771C
61771-87001 Frame Sub-Assy, Back Door Opening Side, Rh[08.1988 - 01.1992] CR36..SRF;CR36..V5D;CR2#,KR2#,YR20,25,28..B,D |
61771-87001 |
US $151.42 |
||
|
61771C
|
61771C
61771-87003 Frame Sub-Assy, Back Door Opening Side, Rh[08.1988 - 01.1992] CR37,YR36;CR36..V4D..HRF;CR2#,30,YR20,21,25,30..E,F,G,N,Q; CR36..SRF;CR36..V5D;CR2#,KR2#,YR20,25,28..B,D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
61771-87003 |
US $151.42 |
||
|
61772C
|
61772C
61772-87001 Frame Sub-Assy, Back Door Opening Side, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61772-87001 |
US $151.42 |
||
|
61776A
|
61776A
61776-87004 Nut, W/plate[01.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61776-87004 |
US $2.33 |
||
| replacement | |||||
|
61776A
|
61776A
61776-87003 Retainer, Rear Seat Cushion[01.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
61776-87003 |
US $2.48 |
||
|
61828A
|
61828A
61828-87001 Bracket, Rear Door Rail, Center Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
61828-87001 |
US $8.74 |
||
|
62555B
|
62555B
62555-87003 Pad, Pillar, No.5[04.1989 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
62555-87003 |
US $2.18 |
||
|
63168A
|
63168A
63168-87001 Retainer, Roof Reinforcement, No.1[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D..HRF ROOF SIDE RAIL RH; CR30..E;CR36..V4D..HRF..D;CR27,KR2#,YR25..V4D..HRF;CR21,28,37,YR20,21,28,3#..(HRF, MRF)..(05S,06S,08S,09S) QUARTER PANEL RH; CR2#,3#,KR2#,YR2#,3#..(HRF,MRF)..(B,D,E,G,N) ROOF SIDE RAIL LH |
63168-87001 |
US $11.50 |
||
|
63169
|
63169
63169-87001 Retainer, Roof Reinforcement, No.2[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..(HRF,MRF)..(02S,05S,06S,08S,09S) QUARTER PANEL LH; CR27,36,KR2#,YR25..V5D..HRF; CR2#,3#,KR2#,YR2#,3#..(HRF,MRF)..(B,D,E,G,N) ROOF SIDE RAIL LH; YR20..MRF..E;CR27,36,KR2#,YR25..V5D..HRF QUARTER PANEL RH |
63169-87001 |
US $11.50 |
||
|
67171A
|
67171A
67171-87002 Reinforcement, Door Hinge, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3#..HRF |
67171-87002 |
US $6.26 |
||
|
67172A
|
67172A
67172-87002 Reinforcement, Door Hinge, Lh[08.1988 - 01.1992] YR20..HRF;YR20..MRF..(D,G);CR2#,3#,KR2#,YR21,25,28,3#..HRF,MRF |
67172-87002 |
US $6.26 |
||
|
67178
|
67178
67178-87003 Retainer, Rear Door Switch, Rh[08.1988 - 01.1992] CR27,36,KR2#,YR25..V5D |
67178-87003 |
US $26.21 |
||
|
67179
|
67179
67179-87001 Retainer, Rear Door Switch, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
67179-87001 |
US $26.21 |
||
|
67281B
|
67281B
67281-87002 Stopper, Back Door, Lower[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
67281-87002 |
US $8.59 |
||
|
68981A
|
68981A
68981-87002 Retainer, Back Door Stay, Rh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
68981-87002 |
US $8.59 |
||
|
68982A
|
68982A
68982-87001 Retainer, Back Door Stay, Lh[08.1988 - 01.1992] CR2#,3#,KR2#,YR2#,3# |
68982-87001 |
US $8.59 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
