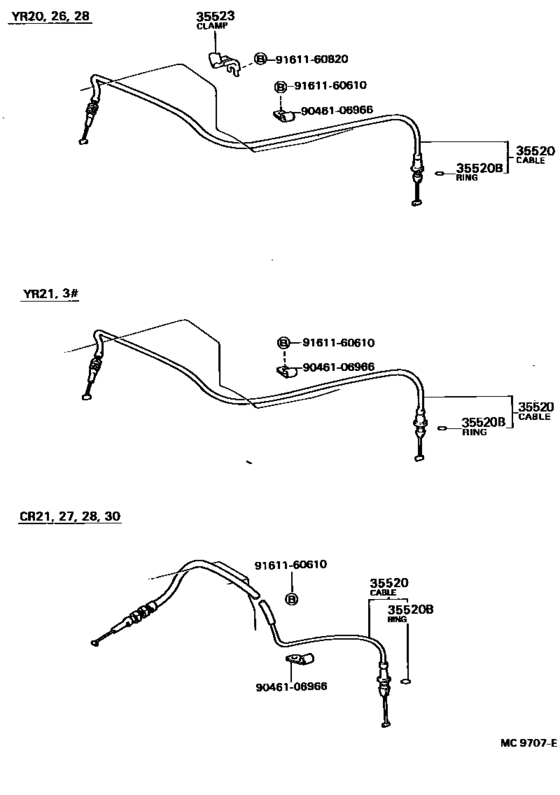

Throttle Link & Valve Lever (Atm) ([11.1982 - ] (8211- )4FC) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- CR27
- grade
- N
- body
- V
- Roof
- HRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- TOWN ACE/MASTER ACE
- From
- 09.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- No.of Doors
- V4D
- Seating Capacity
- 05S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-20100 Cable Assy, Throttle[08.1984 - 08.1988] CR21,27,28,30..4FC |
35520-20100 |
US $74.26 |
||
|
35520B
|
35520B
90301-09004
Ring, O(For Throttle Cable)
[04.1983 - 08.1988] CR21,27,28,30,YR2#,3#..4FC |
90301-09004 |
— | ||
|
9046106966
|
9046106966
90461-06966
New Genuine Part
|
90461-06966 |
— | ||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
