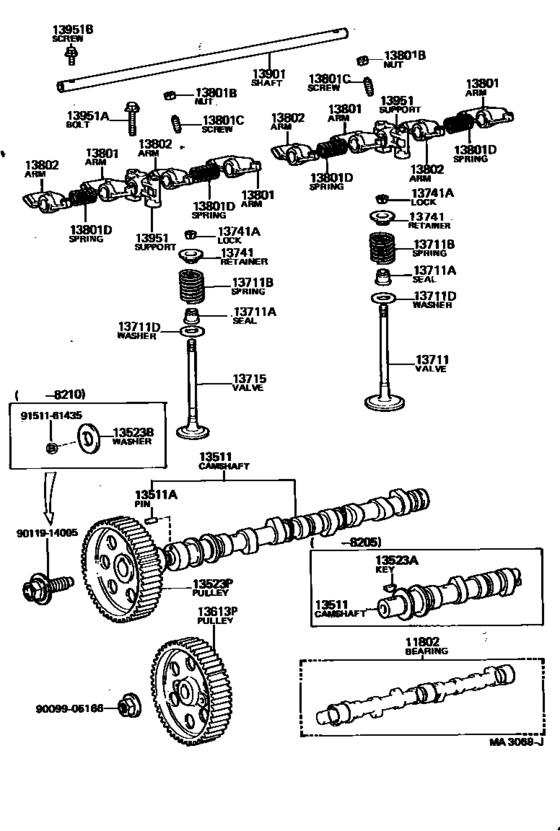

Camshaft & Valve ([03.1979 - 08.1983] (7903-8308)L) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- LY30
- body
- T3
- ENGINE
- L
- DESTINATION
- GEN
- Model
- TOYO ACE
- From
- 03.1979
- To
- 08.1983
- Gear Shift Type
- 5H
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-54010
Bearing Set, Camshaft
[03.1979 - 07.1985] L,2L..LY20,3# STD,STD |
11802-54010 |
— | ||
|
11802
|
11802
11803-54010 Bearing Set, Camshaft (0.125)[03.1979 - 07.1985] L,2L..LY20,3# U/S 0.125,U/S 0.125 |
11803-54010 |
US $80.08 |
||
|
11802
|
11802
11804-54010
Bearing Set, Camshaft (0.25)
[03.1979 - 07.1985] L,2L..LY20,3# U/S 0.25,U/S 0.250 |
11804-54010 |
— | ||
|
13511
|
13511
13501-54030
Camshaft
[05.1982 - 08.1983] L..LY30 |
13501-54030 |
— | ||
|
13511
|
13511
13511-54010
Camshaft
[03.1979 - 05.1982] L..LY20,30 |
13511-54010 |
— | ||
| replacement | |||||
|
13511
|
13511
13501-54H00
Camshaft
[03.1979 - 05.1982] L..LY20,30 |
13501-54H00 |
— | ||
|
13511A
|
13511A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[05.1982 - 07.1985] L,2L..LY3# L=15,OD=5 |
90250-05121 |
from US $1.19 |
||
|
13523A
|
13523A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[03.1979 - 05.1982] L..LY20,30 |
90280-05008 |
US $3.94 |
||
|
13523B
|
13523B
90201-14007
Washer, Plate(For Crankshaft Pulley Set)
[03.1979 - 10.1982] L..LY20,30 |
90201-14007 |
— | ||
| replacement | |||||
|
13523B
|
13523B
90201-14030 Washer, Plate(For Crankshaft Pulley Set)[03.1979 - 10.1982] L..LY20,30 |
90201-14030 |
US $10.93 |
||
|
13523P
|
13523P
13523-54010
Pulley, Camshaft Timing
[03.1979 - 05.1982] L..LY20,30 N=42 |
13523-54010 |
— | ||
|
13523P
|
13523P
13523-54020
Pulley, Camshaft Timing
[05.1982 - 07.1985] L,2L..LY3# N=42 |
13523-54020 |
— | ||
|
13613P
|
13613P
13613-54010 Pulley, Injection Pump Drive[03.1979 - 05.1982] L..LY20,30 N=42 |
13613-54010 |
US $208.21 |
||
| replacement | |||||
|
13613P
|
13613P
13613-54030
Pulley, Injection Pump Drive
[03.1979 - 05.1982] L..LY20,30 N=42 |
13613-54030 |
— | ||
|
13613P
|
13613P
13613-54020
Pulley, Injection Pump Drive
[05.1982 - 07.1985] L,2L..LY3# N=42 |
13613-54020 |
— | ||
| replacement | |||||
|
13613P
|
13613P
13603-54020
Pulley, Injection Pump Drive
[05.1982 - 07.1985] L,2L..LY3# N=42 |
13603-54020 |
— | ||
|
13711
|
13711
13711-54010 Valve, Intake[03.1979 - 07.1985] L,2L..LY20,3# |
13711-54010 |
US $38 |
||
|
13711A
|
13711A
90913-02036
Seal Or Ring, O(For Valve Stem Oil)
[03.1979 - 07.1981] L..LY20,30 |
90913-02036 |
— | ||
|
13711A
|
13711A
90913-02060
Seal Or Ring, O(For Valve Stem Oil)
[07.1981 - 07.1985] L,2L..LY20,3# |
90913-02060 |
— | ||
| replacement | |||||
|
13711A
|
13711A
90913-02059 Seal Or Ring, O(For Valve Stem Oil)[07.1981 - 07.1985] L,2L..LY20,3# |
90913-02059 |
US $8.24 |
||
|
13711B
|
13711B
90501-44002 Spring, Compression(For Inner)[03.1979 - 07.1985] L,2L..LY20,3# WD=4.35,CW=6.25 |
90501-44002 |
US $6.74 |
||
|
13711D
|
13711D
90201-20579 Washer, Plate(For Valve Spring Seat)[03.1979 - 07.1985] L,2L..LY20,3# |
90201-20579 |
US $1.09 |
||
|
13715
|
13715
13715-54010 Valve, Exhaust[03.1979 - 07.1985] L,2L..LY20,3# |
13715-54010 |
US $51.25 |
||
|
13741
|
13741
13741-54010
Retainer, Valve Spring
[03.1979 - 07.1985] L,2L..LY20,3# |
13741-54010 |
— | ||
|
13741A
|
13741A
90913-03016 Lock, Valve Spring Retainer[03.1979 - 07.1985] L,2L..LY20,3# |
90913-03016 |
US $3.23 |
||
|
13801
|
13801
13801-54010 Arm Sub-Assy, Valve Rocker, No.1[03.1979 - 06.1981] L..LY20,30 |
13801-54010 |
US $42.52 |
||
| replacement | |||||
|
13801
|
13801
13801-54011
Arm Sub-Assy, Valve Rocker, No.1
[03.1979 - 06.1981] L..LY20,30 |
13801-54011 |
— | ||
|
13801
|
13801
13801-54011
Arm Sub-Assy, Valve Rocker, No.1
[06.1981 - 07.1982] L..LY20,30 |
13801-54011 |
— | ||
|
13801
|
13801
13801-54012 Arm Sub-Assy, Valve Rocker, No.1[07.1982 - 08.1983] L..LY30 |
13801-54012 |
US $47.03 |
||
|
13801B
|
13801B
90170-08210 Nut, Hexagon(For Valve Adjusting)[03.1979 - 07.1985] L,2L..LY20,3# |
90170-08210 |
US $2.04 |
||
| replacement | |||||
|
13801B
|
13801B
90170-08005 Nut, Hexagon(For Valve Adjusting)[03.1979 - 07.1985] L,2L..LY20,3# |
90170-08005 |
US $2.51 |
||
|
13801C
|
13801C
90913-05016 Screw, Valve Adjusting[03.1979 - 02.1981] L..LY20,30 |
90913-05016 |
US $3.79 |
||
| replacement | |||||
|
13801C
|
13801C
90913-05019 Screw, Valve Adjusting[03.1979 - 02.1981] L..LY20,30 |
90913-05019 |
from US $3.90 |
||
|
13801C
|
13801C
90913-05019 Screw, Valve Adjusting[02.1981 - 07.1985] L,2L..LY20,3# |
90913-05019 |
from US $3.90 |
||
|
13801D
|
13801D
90501-16163
Spring, Compression(For Rocker Arm)
[03.1979 - 07.1985] 2J..JY30 WD=1.6,CW=7.5; L,2L..LY20,3# WD=1.6,CW=7.5 |
90501-16163 |
— | ||
|
13802
|
13802
13802-54010
Arm Sub-Assy, Valve Rocker, No.2
[03.1979 - 06.1981] L..LY20,30 |
13802-54010 |
— | ||
| replacement | |||||
|
13802
|
13802
13802-54011
Arm Sub-Assy, Valve Rocker, No.2
[03.1979 - 06.1981] L..LY20,30 |
13802-54011 |
— | ||
|
13802
|
13802
13802-54011
Arm Sub-Assy, Valve Rocker, No.2
[06.1981 - 08.1983] L..LY20,30 |
13802-54011 |
— | ||
|
13901
|
13901
13901-54010 Shaft Sub-Assy, Valve Rocker, No.1[03.1979 - 07.1985] L,2L..LY20,3# |
13901-54010 |
US $61.33 |
||
|
13951
|
13951
13951-54010 Support, Valve Rocker, No.1[03.1979 - 08.1983] L..LY20,30 |
13951-54010 |
US $35.38 |
||
|
13951A
|
13951A
90119-08191 Bolt(For Head To Camshaft Bearing Cap)[03.1979 - 07.1985] L,2L..LY20,3# *8-1.25PX55-30 |
90119-08191 |
US $2.33 |
||
|
13951B
|
13951B
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
[03.1979 - 07.1982] L..LY20,30 |
91611-60614 |
— | ||
| replacement | |||||
|
13951B
|
13951B
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)[03.1979 - 07.1982] L..LY20,30 |
91611-B0614 |
from US $0.80 |
||
|
13951B
|
13951B
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)[07.1982 - 07.1985] L,2L..LY3# |
91611-60620 |
US $1.61 |
||
|
9009905166
|
9009905166
90099-05166 Nut, Timer Round |
90099-05166 |
US $2.10 |
||
|
9011914005
|
9011914005
90119-14005 Washer, Plate(For Crankshaft Pulley Set) |
90119-14005 |
US $6.27 |
||
|
9151161435
|
9151161435
91511-61435 Bolt(For Crankshaft Pulley Set) |
91511-61435 |
US $4.51 |
||
| replacement | |||||
|
9151161435
|
9151161435
90105-14089 Bolt(For Crankshaft Pulley Set) |
90105-14089 |
from US $3.30 |
||
