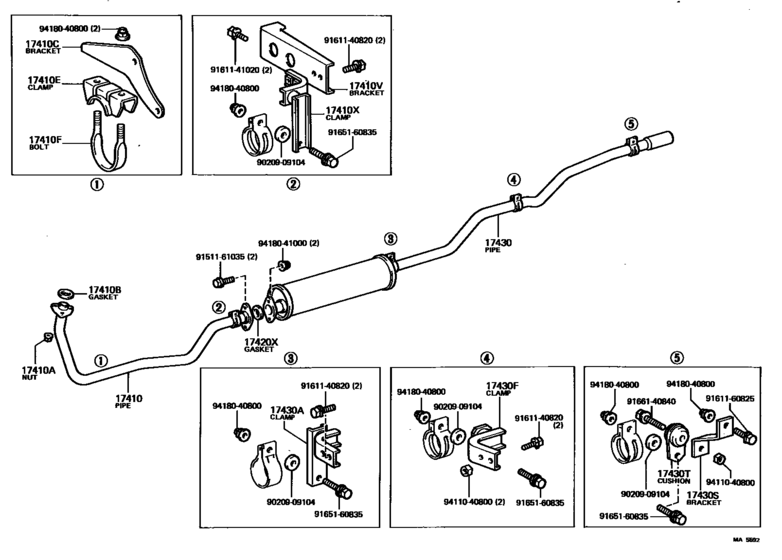

Exhaust Pipe ([01.1982 - ] (8201- )L,2L) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- LY30
- body
- T3
- ENGINE
- L
- DESTINATION
- GEN
- Model
- TOYO ACE
- From
- 03.1979
- To
- 08.1983
- Gear Shift Type
- 5H
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-54010 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [03.1979 - 01.1982] L..LY20,30 |
17401-54010 |
US $85.90 |
||
|
17410
|
17410
17410-54160 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1982 - 07.1985] L,2L..LY3# |
17410-54160 |
US $90.27 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [03.1979 - 07.1985] L,2L,5R..LY20,3#,RY31 |
90179-10118 |
US $4.84 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[03.1979 - 07.1985] L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[03.1979 - 07.1985] L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
90917-06039 |
from US $2.26 |
||
|
17410C
|
17410C
17571-54020 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [03.1979 - 01.1982] L..LY20,30 |
17571-54020 |
US $22.42 |
||
|
17410C
|
17410C
17571-54110 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [01.1982 - 07.1985] L,2L..LY3# |
17571-54110 |
US $36.98 |
||
|
17410E
|
17410E
90917-04021 Clamp No.1, Exhaust Pipe Front (For Front)[03.1979 - 07.1985] L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
90917-04021 |
US $7.28 |
||
|
17410F
|
17410F
90117-08205 Bolt Or Ring, Exhaust Pipe Front (For Front)[03.1979 - 07.1985] L,12R,2J,2L..JY30,LY20,3#,RY20,30 |
90117-08205 |
from US $6.08 |
||
|
17410V
|
17410V
17572-54010 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [03.1979 - 07.1985] L,2L..LY20,3# |
17572-54010 |
US $28.10 |
||
|
17410X
|
17410X
17561-31100 Clamp No.1, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [03.1979 - 01.1982] L..LY20,30 |
17561-31100 |
US $29.12 |
||
|
17410X
|
17410X
17561-54020 Clamp No.1, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [01.1982 - 07.1985] L,2L..LY3# |
17561-54020 |
US $32.03 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[03.1979 - 07.1985] L,12R,2L..LY3#,RY20,30; 5R..RY31..20T RR |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[03.1979 - 07.1985] L,12R,2L..LY3#,RY20,30; 5R..RY31..20T RR |
90917-06039 |
from US $2.26 |
||
|
17430
|
17430
17430-31200 Pipe Assy, Exhaust, TailEXHAUST, TAIL [03.1979 - 01.1982] L,12R..LY30,RY20,30 |
17430-31200 |
US $313.04 |
||
|
17430
|
17430
17430-54260 Pipe Assy, Exhaust, TailEXHAUST, TAIL [01.1982 - 08.1983] L..LY30 |
17430-54260 |
US $301.39 |
||
|
17430A
|
17430A
17561-31100 Clamp No.1, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [03.1979 - 01.1982] L,12R..LY30,RY20,30 |
17561-31100 |
US $29.12 |
||
|
17430A
|
17430A
17561-54020 Clamp No.1, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [01.1982 - 07.1985] L,2L..LY3# |
17561-54020 |
US $32.03 |
||
|
17430F
|
17430F
17563-31070 Bracket, Exhaust Tail Pipe(For Center)EXHAUST TAIL PIPE(FOR CENTER) [03.1979 - 01.1982] L,12R..LY20,30,RY20,30 |
17563-31070 |
US $14.41 |
||
|
17430F
|
17430F
17563-54030 Bracket, Exhaust Tail Pipe(For Center)EXHAUST TAIL PIPE(FOR CENTER) [01.1982 - 07.1985] L,2L..LY3# |
17563-54030 |
US $50.52 |
||
|
17430S
|
17430S
17573-44020 Bracket, Exhaust Tail Pipe (For Rear)[03.1979 - 07.1985] L,12R,2L..LY20,3#,RY20,30 |
17573-44020 |
US $4.51 |
||
|
17430T
|
17430T
90917-08004 Cushion, Exhaust Pipe Front (For Front)[03.1979 - 01.1982] L,12R,2J,5R..JY30,LY20,30,RY20,3# |
90917-08004 |
US $14.34 |
||
|
17430T
|
17430T
90917-08009 Cushion, Exhaust Tail Pipe (For Rear)[01.1982 - 07.1985] L,12R,2J,2L,5R..JY30,LY3#,RY20,3# |
90917-08009 |
from US $9.72 |
||
|
9020909104
|
9020909104
90209-09104 New Genuine Part |
90209-09104 |
US $5.10 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.94 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9166140840
|
9166140840
91661-40840 New Genuine Part |
91661-40840 |
US $2.04 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
