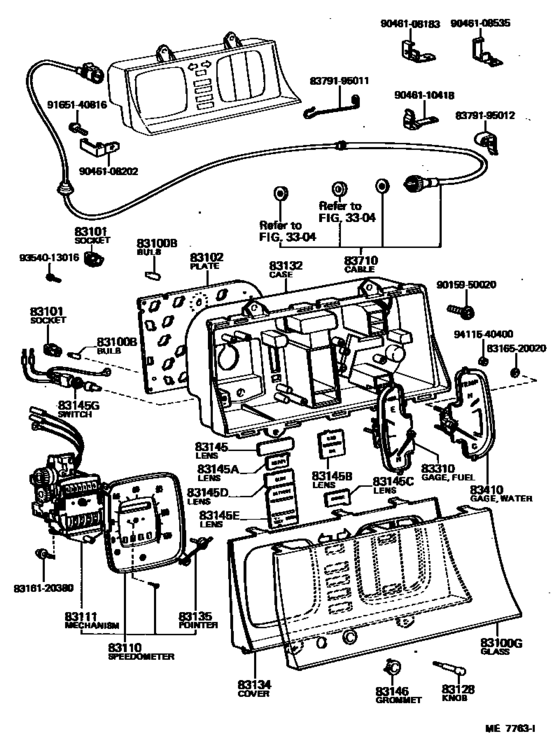

Meter ([03.1979 - ] (7903- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- LY30
- body
- T3
- ENGINE
- L
- DESTINATION
- GEN
- Model
- TOYO ACE
- From
- 03.1979
- To
- 08.1983
- Gear Shift Type
- 5H
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[03.1979 - 01.1982] LY20,30 12V 1.2W W/O SOCKET,12V 1.4KW |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[01.1982 - 07.1985] JY30,LY3#,RY20,3# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[01.1982 - 07.1985] JY30,LY3#,RY20,3# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-95020 Glass, Combination MeterCOMBINATION METER [01.1982 - 07.1985] LY3# |
83138-95020 |
US $48.34 |
||
|
83100G
|
83100G
83138-95040
Glass, Combination Meter
[03.1979 - 01.1982] LY20,30 |
83138-95040 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# 12V 3.4W |
83101-20040 |
from US $1.56 |
||
|
83101
|
83101
83101-22010
Socket & Wire, Indicator Lamp
[03.1979 - 01.1982] LY20,30 12V 1.4W |
83101-22010 |
— | ||
| replacement | |||||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[03.1979 - 01.1982] LY20,30 12V 1.4W |
83101-14040 |
US $2.44 |
||
|
83102
|
83102
83102-95060
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1982 - 07.1985] LY3#..GEN |
83102-95060 |
— | ||
|
83102
|
83102
83247-95030
Plate Sub-Assy, Combination Meter Circuit, No.1
[03.1979 - 01.1982] LY20,30 |
83247-95030 |
— | ||
|
83110
|
83110
83110-95013
Speedometer Assy
[03.1979 - 01.1982] LY20,30 KM |
83110-95013 |
— | ||
|
83110
|
83110
83110-95017 Speedometer Assy[03.1979 - 09.1981] LY20,30 MILE |
83110-95017 |
US $329.06 |
||
| replacement | |||||
|
83110
|
83110
83110-95025
Speedometer Assy
[03.1979 - 09.1981] LY20,30 MILE |
83110-95025 |
— | ||
|
83110
|
83110
83110-95021
Speedometer Assy
[01.1982 - 07.1985] LY3#..GEN KM |
83110-95021 |
— | ||
|
83110
|
83110
83110-95024
Speedometer Assy
[01.1982 - 07.1985] LY3#..GEN MILE |
83110-95024 |
— | ||
|
83110
|
83110
83110-95025
Speedometer Assy
[09.1981 - 01.1982] LY20,30 MILE |
83110-95025 |
— | ||
|
83111
|
83111
83112-95013
Mechanism, Speedometer
[03.1979 - 01.1982] LY20,30 KM |
83112-95013 |
— | ||
|
83111
|
83111
83112-95017
Mechanism, Speedometer
[03.1979 - 01.1982] LY20,30 MILE |
83112-95017 |
— | ||
|
83128
|
83128
83128-95010 Knob, Trip Counter[01.1982 - 07.1985] JY30,LY3#,RY20,3# |
83128-95010 |
US $3.93 |
||
|
83132
|
83132
83132-95010 Case, Combination MeterCOMBINATION METER [03.1979 - 07.1985] JY30,LY20,3#,RY20,3#..GEN |
83132-95010 |
US $58.53 |
||
|
83134
|
83134
83134-95010 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
83134-95010 |
US $41.06 |
||
|
83135
|
83135
83135-95A03
Pointer, Speedometer
[03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83135-95A03 |
— | ||
|
83145
|
83145
83145-95013 Lens, Meter, No.1[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
83145-95013 |
US $4.08 |
||
|
83145A
|
83145A
83145-95014 Lens, Meter, No.1[03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83145-95014 |
US $4.08 |
||
|
83145A
|
83145A
83145-95A15 Lens, Meter, No.2[01.1982 - 07.1985] JY30,LY3#,RY20,3# |
83145-95A15 |
US $5.53 |
||
|
83145B
|
83145B
83145-95015
Lens, Meter, No.3
[03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83145-95015 |
— | ||
|
83145B
|
83145B
83145-95026 Lens, Meter, No.3METER, NO.3 [01.1982 - 07.1985] JY30,LY3#,RY20,3#..GEN |
83145-95026 |
US $5.53 |
||
|
83145C
|
83145C
83145-95016 Lens, Meter, No.4METER, NO.4 [03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83145-95016 |
US $4.08 |
||
|
83145C
|
83145C
83145-95027 Lens, Meter, No.4METER, NO.4 [01.1982 - 07.1985] JY30,LY3#,RY20,3#..GEN |
83145-95027 |
US $4.66 |
||
|
83145D
|
83145D
83145-95019
Lens, Meter, No.5
[03.1979 - 01.1982] JY30,LY20,30 |
83145-95019 |
— | ||
|
83145D
|
83145D
83145-95A12 Lens, Meter, No.3METER, NO.5 [01.1982 - 07.1985] JY30,LY3#..GEN |
83145-95A12 |
US $6.41 |
||
|
83145E
|
83145E
83145-95010
Lens, Meter, No.6
[03.1979 - 01.1982] LY20,30 |
83145-95010 |
— | ||
|
83145E
|
83145E
83145-95A20
Lens, Meter, No.6
[01.1982 - 07.1985] LY3#..GEN |
83145-95A20 |
— | ||
|
83145G
|
83145G
83125-95010 Switch Assy, Meter[03.1979 - 07.1985] LY20,3# |
83125-95010 |
US $63.04 |
||
|
83146
|
83146
83145-89117 Grommet, Meter Glass[03.1979 - 11.1983] LY20,3# |
83145-89117 |
US $4.08 |
||
|
83310
|
83310
83243-95010 Gage Assy, Fuel ReceiverFUEL RECEIVER [03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83243-95010 |
US $50.23 |
||
|
83310
|
83310
83243-95012 Gage Assy, Fuel ReceiverFUEL RECEIVER [01.1982 - 07.1985] JY30,LY30,RY20,3#..GEN |
83243-95012 |
US $58.68 |
||
|
83410
|
83410
83244-95010
Gage Assy, Water Temperature Receiver
[03.1979 - 12.1979] JY30,LY20,30,RY20,3# SENDER GAGE=83420-20011 |
83244-95010 |
— | ||
|
83410
|
83410
83244-95012 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [01.1982 - 07.1985] JY30,LY30,RY20,3#..GEN |
83244-95012 |
US $38.58 |
||
|
83410
|
83410
83244-95020 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [12.1979 - 01.1982] JY30,LY20,30,RY20,3# SENDER GAGE=83420-20020 |
83244-95020 |
US $50.23 |
||
|
83710
|
83710
83710-29605 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [03.1979 - 01.1982] LY20,30 |
83710-29605 |
US $53.14 |
||
|
83710
|
83710
83710-95016 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [01.1982 - 07.1985] LY3# |
83710-95016 |
US $52.85 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316520020
|
8316520020
83165-20020 Mirror, Combination Meter, No.2 |
83165-20020 |
US $1.16 |
||
|
8379195011
|
8379195011
83791-95011
New Genuine Part
|
83791-95011 |
— | ||
|
8379195012
|
8379195012
83791-95012 Clamp, Rear Washer Hose |
83791-95012 |
US $3.35 |
||
| replacement | |||||
|
8379195012
|
8379195012
82711-30660 Clamp, Rear Washer Hose |
82711-30660 |
US $3.20 |
||
|
9015950020
|
9015950020
90159-50020 New Genuine Part |
90159-50020 |
US $1.89 |
||
|
9046108183
|
9046108183
90461-08183
Wire, Fuse To Fuse(for Combustion Heater)
|
90461-08183 |
— | ||
| replacement | |||||
|
9046108183
|
9046108183
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9046108202
|
9046108202
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.30 |
||
|
9046108535
|
9046108535
90461-08535 New Genuine Part |
90461-08535 |
US $7.28 |
||
|
9046110418
|
9046110418
90461-10418 New Genuine Part |
90461-10418 |
US $6.99 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9354013016
|
9354013016
93540-13016
Bulb, Combination Meter, No.1
|
93540-13016 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
