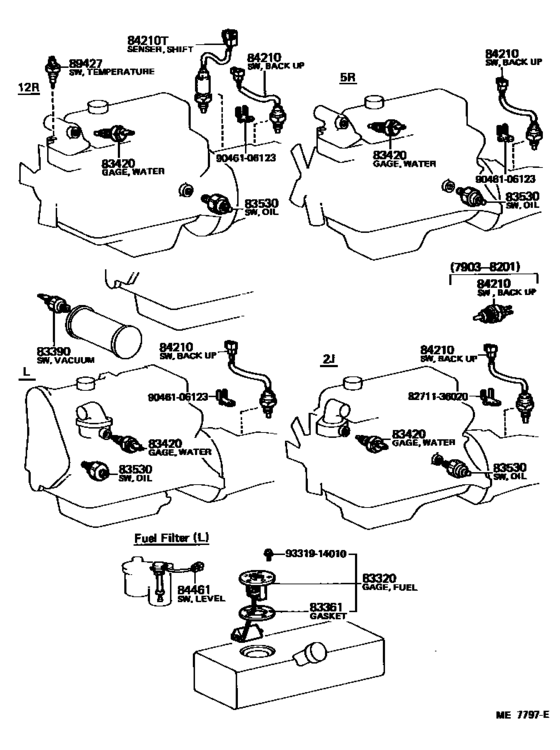

Switch & Relay & Computer ([03.1979 - ] (7903- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1979 - 1983
- Sales region
- General
- Frame
- LY30
- body
- T3
- ENGINE
- L
- DESTINATION
- GEN
- Model
- TOYO ACE
- From
- 03.1979
- To
- 08.1983
- Gear Shift Type
- 5H
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-29016 Gage Assy, Fuel Sender[03.1979 - 01.1982] JY30,LY20,30,RY20,3# |
83320-29016 |
US $58.68 |
||
|
83320
|
83320
83320-29345
Gage Assy, Fuel Sender
[01.1982 - 07.1985] JY30,LY3#,RY20,3# |
83320-29345 |
— | ||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[03.1979 - 07.1985] JY30,LY20,3#,RY20,3# |
83361-20030 |
from US $2.30 |
||
|
83390
|
83390
83390-60010
Switch Assy, Vacuum Warning
[03.1979 - 08.1983] JY30,LY20,30 |
83390-60010 |
— | ||
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[12.1979 - 07.1985] JY30,LY20,3#,RY20,3# DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1985] JY30,LY20,3#,RY20,3# DENSO |
83420-20020 |
from US $29.21 |
||
|
83420
|
83420
83420-20011 Gage Assy, Water Temperature Sender[03.1979 - 12.1979] JY30,LY20,30,RY20,3# BLUE,YAZAKI |
83420-20011 |
US $57.62 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1985] JY30,LY20,3#,RY20,3# PINK,YAZAKI |
83420-20020 |
from US $29.21 |
||
|
83530
|
83530
83530-36011
Switch Assy, Oil Pressure (For Engine)
[03.1979 - 01.1982] LY20,30,RY20,30 |
83530-36011 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[03.1979 - 01.1982] LY20,30,RY20,30 |
83530-60030 |
from US $23.52 |
||
|
84210
|
84210
84210-25020 Switch Assy, Back-Up LampBACK-UP LAMP [03.1979 - 07.1985] LY20,3#,RY20,3# |
84210-25020 |
US $41.35 |
||
|
84461
|
84461
84461-30030 Switch, Level Warning[03.1979 - 02.1980] LY20,30 |
84461-30030 |
US $78.62 |
||
| replacement | |||||
|
84461
|
84461
84461-30040
Switch, Level Warning
[03.1979 - 02.1980] LY20,30 |
84461-30040 |
— | ||
|
84461
|
84461
84461-30040
Switch, Level Warning
[02.1980 - 08.1983] LY20,30 |
84461-30040 |
— | ||
|
8271136020
|
8271136020
82711-36020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-36020 |
US $8.59 |
||
|
9046106123
|
9046106123
90461-06123 New Genuine Part |
90461-06123 |
US $3.35 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
