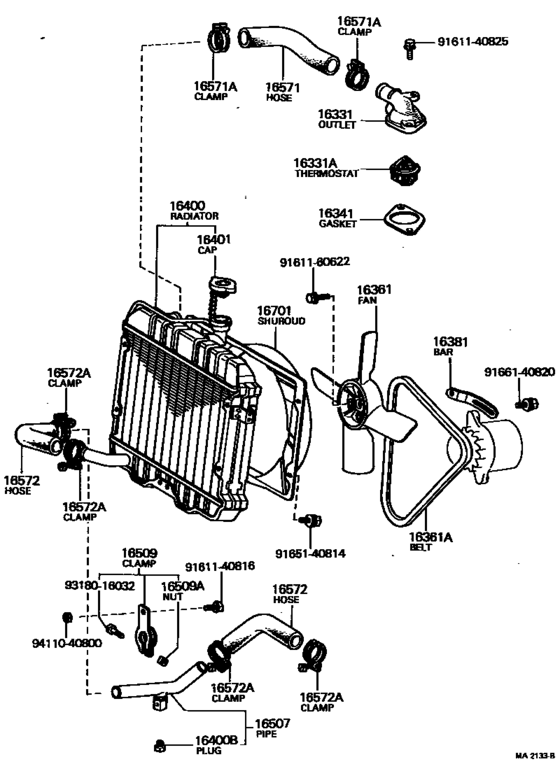

Radiator & Water Outlet ([11.1975 - 02.1979] (7511-7902)12R) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16331
|
16331
16331-31010
Outlet, Water
[09.1971 - 11.1975] 12R..RY10,12 |
16331-31010 |
— | ||
| replacements | |||||
|
16331
|
16331
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[09.1971 - 11.1975] 12R..RY10,12 |
91611-B0825 |
from US $1.11 |
||
|
16331
|
16331
16331-26031
Outlet, Water
[09.1971 - 11.1975] 12R..RY10,12 |
16331-26031 |
— | ||
|
16331
|
16331
91611-60830 Bolt(For Clutch Release Cylinder Setting)[09.1971 - 11.1975] 12R..RY10,12 |
91611-60830 |
from US $1.44 |
||
|
16331
|
16331
16331-31020
Outlet, Water
[09.1971 - 09.1973] 12R..RY10,12 CAST IRON BODY |
16331-31020 |
— | ||
|
16331
|
16331
16331-31031 Outlet, WaterWATER [11.1975 - 02.1979] 12R..RY10,12 |
16331-31031 |
US $43.39 |
||
|
16331A
|
16331A
90916-03016 Thermostat[09.1971 - 08.1972] 12R..RY10,12 WAX 82-95 FUJI-THOMSON |
90916-03016 |
US $15 |
||
| replacement | |||||
|
16331A
|
16331A
90916-03034 Thermostat[09.1971 - 08.1972] 12R..RY10,12 WAX 82-95 FUJI-THOMSON |
90916-03034 |
US $17.02 |
||
|
16331A
|
16331A
90916-03020
Thermostat
[08.1972 - 09.1973] 12R..RY10,12 WAX 82-95 FUJI-THOMSON |
90916-03020 |
— | ||
|
16331A
|
16331A
90916-03021
Thermostat
[09.1971 - 09.1973] 12R..RY10,12 WAX 82-95 KUZEH |
90916-03021 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[09.1971 - 09.1973] 12R..RY10,12 WAX 82-95 KUZEH |
90916-03083 |
from US $17.14 |
||
|
16331A
|
16331A
90916-03024 Thermostat[09.1971 - 09.1973] 12R..RY10,12 WAX 75-85 KUZEH |
90916-03024 |
US $9.43 |
||
|
16331A
|
16331A
90916-03034 Thermostat[09.1973 - 02.1979] 12R..RY10,12 WAX 82-95 FUJI-THOMSON |
90916-03034 |
US $17.02 |
||
|
16331A
|
16331A
90916-03037
Thermostat
[09.1973 - 02.1979] 12R,5R..RY1# WAX 82-95 KUZEH |
90916-03037 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[09.1973 - 02.1979] 12R,5R..RY1# WAX 82-95 KUZEH |
90916-03083 |
from US $17.14 |
||
|
16341
|
16341
16341-38010
Gasket, Water Outlet
[09.1978 - 02.1979] 12R,5R..RY1# |
16341-38010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-34010 Gasket, Water Outlet[09.1978 - 02.1979] 12R,5R..RY1# |
16341-34010 |
US $5.73 |
||
|
16341
|
16341
16341-49010
Gasket, Water Outlet
[09.1971 - 01.1977] 12R..RY10,12 |
16341-49010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-34010 Gasket, Water Outlet[09.1971 - 01.1977] 12R..RY10,12 |
16341-34010 |
US $5.73 |
||
|
16361
|
16361
16361-31020 Fan[09.1971 - 06.1972] 12R..RY1# 4 BLADES |
16361-31020 |
US $49.80 |
||
| replacement | |||||
|
16361
|
16361
16361-31021
Fan
[09.1971 - 06.1972] 12R..RY1# 4 BLADES |
16361-31021 |
— | ||
|
16361
|
16361
16361-31021
Fan
[06.1972 - 02.1979] 12R..RY10,12 4 BLADES |
16361-31021 |
— | ||
|
16361A
|
16361A
90916-02052 Belt, V(For Fan & Alternator)V(FOR FAN & ALTERNATOR) [11.1975 - 12.1976] 12R..RY10,12 L=890 |
90916-02052 |
US $21.55 |
||
| replacement | |||||
|
16361A
|
16361A
99332-00890
Belt, V(For Fan & Alternator)
[11.1975 - 12.1976] 12R..RY10,12 L=890 |
99332-00890 |
— | ||
|
16361A
|
16361A
90916-02060 Belt, V(For Fan & Alternator)V(FOR FAN & ALTERNATOR) [12.1976 - 04.1978] 12R..RY10,12 L=890 |
90916-02060 |
US $21.55 |
||
| replacement | |||||
|
16361A
|
16361A
99332-00890
Belt, V(For Fan & Alternator)
[12.1976 - 04.1978] 12R..RY10,12 L=890 |
99332-00890 |
— | ||
|
16361A
|
16361A
99332-00890
Belt, V(For Fan & Alternator)
[04.1978 - 02.1979] 12R..RY10,12 L=890 |
99332-00890 |
— | ||
|
16361A
|
16361A
99521-10873 Belt, V(For Fan & Alternator)V(FOR FAN & ALTERNATOR) [09.1971 - 06.1972] 12R..RY1# L=873 |
99521-10873 |
US $10.48 |
||
| replacement | |||||
|
16361A
|
16361A
99321-00870
Belt, V(For Fan & Alternator)
[09.1971 - 06.1972] 12R..RY1# L=873 |
99321-00870 |
— | ||
|
16361A
|
16361A
99521-10887
Belt, V(For Fan & Alternator)
[12.1973 - 11.1975] 12R..RY10,12 L=887 |
99521-10887 |
— | ||
| replacement | |||||
|
16361A
|
16361A
99321-00885 Belt, V(For Fan & Alternator)[12.1973 - 11.1975] 12R..RY10,12 L=887 |
99321-00885 |
US $12.90 |
||
|
16361A
|
16361A
99521-10897
Belt, V(For Fan & Alternator)
[06.1972 - 12.1973] 12R..RY10,12 L=897 |
99521-10897 |
— | ||
| replacement | |||||
|
16361A
|
16361A
99321-00895
Belt, V(For Fan & Alternator)
[06.1972 - 12.1973] 12R..RY10,12 L=897 |
99321-00895 |
— | ||
|
16381
|
16381
16381-31011 Bar, Fan Belt AdjustingFAN BELT ADJUSTING [09.1971 - 11.1975] 12R..RY10,12 |
16381-31011 |
US $11.36 |
||
| replacement | |||||
|
16381
|
16381
16381-31012
Bar, Fan Belt Adjusting
[09.1971 - 11.1975] 12R..RY10,12 |
16381-31012 |
— | ||
|
16381
|
16381
16381-31012
Bar, Fan Belt Adjusting
[11.1975 - 02.1979] 12R..RY10,12 |
16381-31012 |
— | ||
|
16400
|
16400
16400-29025 Radiator Assy[09.1971 - 05.1975] 12R..RY10,12 |
16400-29025 |
US $665.39 |
||
| replacement | |||||
|
16400
|
16400
16400-29026
Radiator Assy
[09.1971 - 05.1975] 12R..RY10,12 |
16400-29026 |
— | ||
|
16400
|
16400
16400-29026
Radiator Assy
[05.1975 - 11.1975] 12R..RY10,12 |
16400-29026 |
— | ||
|
16400
|
16400
16400-31200 Radiator Assy[11.1975 - 02.1979] 12R..RY10,12 |
16400-31200 |
US $1,354.08 |
||
|
16400B
|
16400B
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[09.1971 - 02.1979] 2J..JY16; 12R..RY10,12 |
96431-23814 |
from US $6.94 |
||
|
16401
|
16401
16401-23070 Cap Sub-Assy, RadiatorRADIATOR [09.1971 - 02.1979] 12R,5R..RY1# |
16401-23070 |
US $22.86 |
||
| replacement | |||||
|
16401
|
16401
16401-41021 Cap Sub-Assy, Radiator[09.1971 - 02.1979] 12R,5R..RY1# |
16401-41021 |
from US $21.67 |
||
|
16507
|
16507
16507-31010
Pipe Sub-Assy, Radiator
[07.1974 - 02.1979] 12R..RY10,12 |
16507-31010 |
— | ||
|
16507
|
16507
16577-23010 Pipe Sub-Assy, RadiatorRADIATOR [09.1971 - 07.1974] 12R..RY10,12 |
16577-23010 |
US $53.73 |
||
| replacement | |||||
|
16507
|
16507
16507-31010
Pipe Sub-Assy, Radiator
[09.1971 - 07.1974] 12R..RY10,12 |
16507-31010 |
— | ||
|
16509
|
16509
16509-31010
Clamp Sub-Assy, Radiator Pipe
[09.1971 - 02.1979] 12R..RY10,12 |
16509-31010 |
— | ||
|
16509A
|
16509A
90173-06009
Nut, Square(For Radiator Pipe Clamp)
[09.1971 - 02.1979] 12R..RY10,12 |
90173-06009 |
— | ||
|
16571
|
16571
16572-31010
Hose, Radiator, Inlet
[09.1971 - 07.1974] 12R..RY10,12 |
16572-31010 |
— | ||
|
16571
|
16571
16572-31030
Hose, Radiator, Inlet
[07.1974 - 11.1975] 12R..RY10,12 |
16572-31030 |
— | ||
|
16571
|
16571
16572-31031 Hose, Radiator, InletRADIATOR, INLET [11.1975 - 02.1979] 12R..RY10,12 |
16572-31031 |
US $24.17 |
||
|
16571A
|
16571A
90460-43005
Clamp Or Clip, Hose(For Radiator Inlet)
[09.1971 - 11.1974] 12R,5R..RY1# |
90460-43005 |
— | ||
| replacement | |||||
|
16571A
|
16571A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[09.1971 - 11.1974] 12R,5R..RY1# |
96111-10430 |
from US $2.15 |
||
|
16571A
|
16571A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[11.1974 - 12.1978] 12R,5R..RY1# |
96111-10430 |
from US $2.15 |
||
|
16572
|
16572
90916-01110 Hose, Radiator, OutletRADIATOR, OUTLET [09.1971 - 11.1975] 12R..RY10,12 PUMP SIDE |
90916-01110 |
US $21.69 |
||
|
16572
|
16572
90916-01111 Hose, Radiator, OutletRADIATOR, OUTLET [09.1971 - 02.1979] 2J..JY16 RADIATOR SIDE; 12R..RY10,12 RADIATOR SIDE |
90916-01111 |
US $16.89 |
||
|
16572
|
16572
90916-01145 Hose, Radiator, OutletRADIATOR, OUTLET [11.1975 - 02.1979] 12R..RY10,12 PUMP SIDE |
90916-01145 |
US $28.39 |
||
|
16572A
|
16572A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[09.1971 - 11.1974] 12R..RY10,12 ID=47 |
90460-47036 |
US $3.94 |
||
|
16572A
|
16572A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[11.1974 - 02.1979] 12R..RY10,12 ID=46 |
96111-10460 |
from US $2.83 |
||
|
16701
|
16701
16711-31010
Shroud Sub-Assy, Fan
[09.1971 - 02.1979] 12R..RY10,12 |
16711-31010 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
|
9318016032
|
9318016032
93180-16032
New Genuine Part
|
93180-16032 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
