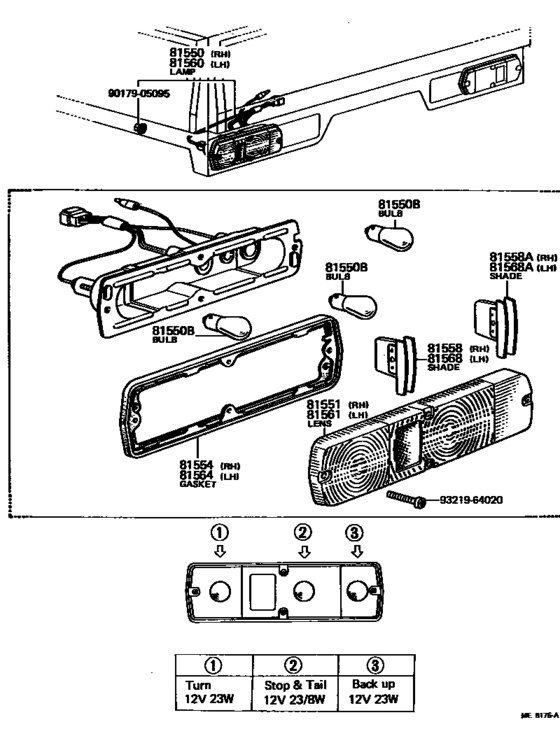

Rear Combination Lamp ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T1
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-29415 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [09.1971 - 04.1974] JY16,RY1# |
81550-29415 |
US $91.73 |
||
| replacement | |||||
|
81550
|
81550
81550-29696
Lamp Assy, Rear Combination, Rh
[09.1971 - 04.1974] JY16,RY1# |
81550-29696 |
— | ||
|
81550
|
81550
81550-29696
Lamp Assy, Rear Combination, Rh
[04.1974 - 01.1975] JY16,RY1# |
81550-29696 |
— | ||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[09.1971 - 02.1979] JY16,RY1# 12V 23W,12V 23W |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[09.1971 - 02.1979] JY16,RY1# 12V 23/8W,12V 23/8W |
99132-21230 |
US $3.40 |
||
|
81551
|
81551
81551-25060 Lens, Rear Combination Lamp, Rh[09.1971 - 04.1974] JY16,RY1# |
81551-25060 |
from US $12.32 |
||
|
81554
|
81554
81552-25060 Gasket, Rear Combination Lamp Lens, Rh[09.1971 - 02.1979] JY16,RY1# |
81552-25060 |
US $25.54 |
||
|
81558
|
81558
81557-25060 Shade, Rear Combination Lamp, No.1 Rh[09.1971 - 02.1979] JY16,RY1# |
81557-25060 |
US $9.49 |
||
|
81558A
|
81558A
81557-25060 Shade, Rear Combination Lamp, No.1 Rh[09.1971 - 02.1979] JY16,RY1# |
81557-25060 |
US $9.49 |
||
|
81560
|
81560
81560-29405 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [09.1971 - 04.1974] JY16,RY1# |
81560-29405 |
US $65.08 |
||
| replacement | |||||
|
81560
|
81560
81560-29686
Lamp Assy, Rear Combination, Lh
[09.1971 - 04.1974] JY16,RY1# |
81560-29686 |
— | ||
|
81560
|
81560
81560-29686
Lamp Assy, Rear Combination, Lh
[04.1974 - 01.1975] JY16,RY1# |
81560-29686 |
— | ||
|
81560
|
81560
81560-29687 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [01.1975 - 02.1979] JY16,RY1# |
81560-29687 |
US $125.22 |
||
| replacement | |||||
|
81560
|
81560
81560-80120 Lamp Assy, Rear Combination, Lh[01.1975 - 02.1979] JY16,RY1# |
81560-80120 |
US $104.83 |
||
|
81561
|
81561
81561-25040 Lens, Rear Combination Lamp, Lh[09.1971 - 04.1974] JY16,RY1# |
81561-25040 |
US $37.63 |
||
|
81564
|
81564
81552-25060 Gasket, Rear Combination Lamp Lens, Rh[09.1971 - 12.1977] JY16,RY1# |
81552-25060 |
US $25.54 |
||
|
81564
|
81564
81562-25040 Gasket, Rear Combination Lamp Lens, Lh[12.1977 - 02.1979] JY16,RY1# |
81562-25040 |
US $25.54 |
||
|
81568
|
81568
81557-25060 Shade, Rear Combination Lamp, No.1 Rh[09.1971 - 02.1979] JY16,RY1# |
81557-25060 |
US $9.49 |
||
|
81568A
|
81568A
81557-25060 Shade, Rear Combination Lamp, No.1 Rh[09.1971 - 02.1979] JY16,RY1# |
81557-25060 |
US $9.49 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9321964020
|
9321964020
93219-64020
Screw
|
93219-64020 |
— | ||
| replacement | |||||
|
9321964020
|
9321964020
81559-10050 Screw |
81559-10050 |
US $5.73 |
||
