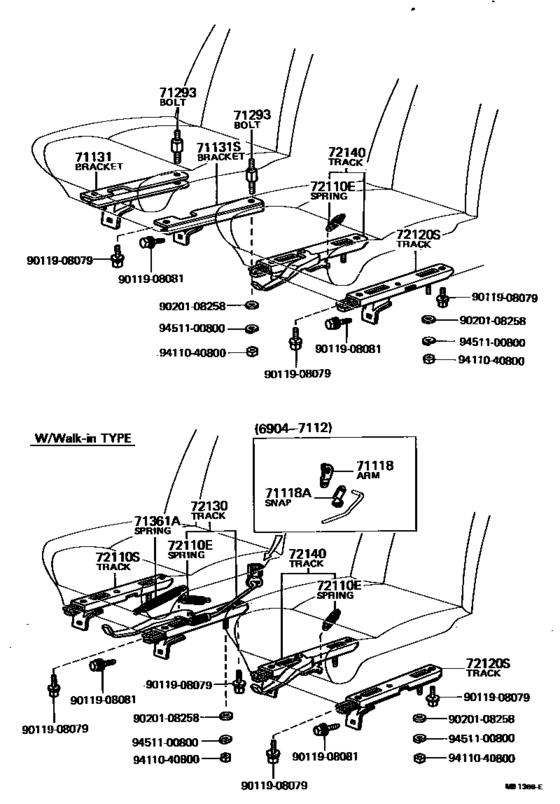

Front Seat & Seat Track ([04.1969 - ] (6904- )LHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71118
|
71118
71118-10090
Arm, Front Seat Control
[04.1969 - 12.1971] KP3#..SED,V |
71118-10090 |
— | ||
|
71118A
|
71118A
69768-13010
Snap, Front Seat Control Arm
[04.1969 - 12.1971] KP3#..SED,V |
69768-13010 |
— | ||
|
71131
|
71131
71250-10020
Bracket, Front Seat Set, Outer Rh
[04.1969 - 08.1988] KP30,36..LHD |
71250-10020 |
— | ||
|
71131S
|
71131S
71270-10010
Bracket, Front Seat Set, Inner Rh
[04.1969 - 08.1988] KP30,36..LHD |
71270-10010 |
— | ||
|
71293
|
71293
71293-10010
Bolt, Front Seat Set
[04.1969 - 08.1988] KP3# |
71293-10010 |
— | ||
|
71361A
|
71361A
90506-18231
Spring, Tension (For Seat Track)
[04.1969 - 12.1971] KP3#..SED,V |
90506-18231 |
— | ||
|
72110E
|
72110E
90506-16143 Spring, Tension, No.1 (For Seat Track)TENSION, NO.1 (FOR SEAT TRACK) [04.1969 - 08.1988] KP3# |
90506-16143 |
US $3.20 |
||
|
72110S
|
72110S
72120-10040 Track Assy, Lh Seat, Outer (For Separate Seat)RH SEAT, OUTER (FOR SEPARATE SEAT) [04.1969 - 09.1978] KP30,36..(SED,V)..LHD W/WALK-IN TYPE |
72120-10040 |
US $38.88 |
||
|
72120S
|
72120S
72120-10040 Track Assy, Lh Seat, Outer (For Separate Seat)RH SEAT, OUTER (FOR SEPARATE SEAT) [04.1969 - 08.1988] KP30,36..LHD |
72120-10040 |
US $38.88 |
||
|
72130
|
72130
72130-10030
Track Assy, Rh Seat, Inner
[04.1969 - 10.1970] KP3#..(SED,V)..LHD W/WALK-IN TYPE |
72130-10030 |
— | ||
|
72130
|
72130
72130-10031
Track Assy, Rh Seat, Inner
[10.1970 - 10.1973] KP3#..(SED,V)..LHD W/WALK-IN TYPE |
72130-10031 |
— | ||
|
72130
|
72130
72130-10032
Track Assy, Rh Seat, Inner
[10.1973 - 09.1978] KP30,36..(SED,V)..LHD W/WALK-IN TYPE |
72130-10032 |
— | ||
|
72140
|
72140
72140-10020
Track Assy, Lh Seat, Inner
[04.1969 - 10.1973] KP3#..(SED,V)..LHD |
72140-10020 |
— | ||
|
72140
|
72140
72140-10021
Track Assy, Lh Seat, Inner
[10.1973 - 09.1978] KP30,36..(SED,V)..LHD |
72140-10021 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
|
9011908081
|
9011908081
90119-08081 New Genuine Part |
90119-08081 |
US $3.35 |
||
|
9020108258
|
9020108258
90201-08258 New Genuine Part |
90201-08258 |
US $3.35 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
