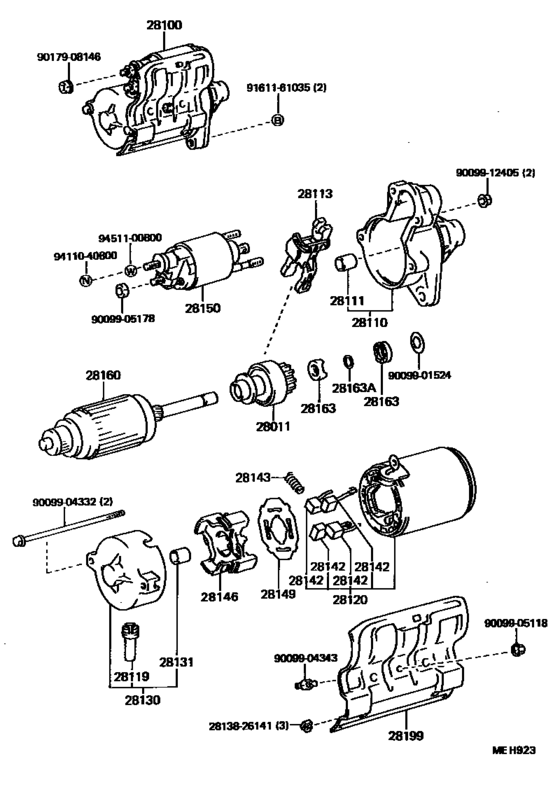

Starter ([08.1986 - ] (8608- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- General
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-13060 Clutch Sub-Assy, Starter[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28011-13060 |
US $42.66 |
||
|
28011
|
28011
28011-22020 Clutch Sub-Assy, Starter[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28011-22020 |
US $64.79 |
||
|
28100
|
28100
28100-13060 Starter Assy[08.1986 - 05.1987] 2K..KP36 12V 0.6KW,12V 0.6KW |
28100-13060 |
US $837.20 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[08.1986 - 05.1987] 2K..KP36 12V 0.6KW,12V 0.6KW |
28100-13130 |
— | ||
|
28100
|
28100
28100-13061 Starter Assy[05.1987 - 08.1988] 2K..KP36 12V 0.6KW,12V 0.6KW |
28100-13061 |
US $837.20 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[05.1987 - 08.1988] 2K..KP36 12V 0.6KW,12V 0.6KW |
28100-13130 |
— | ||
|
28100
|
28100
28100-22012 Starter Assy[08.1969 - 04.1974] 2K..KP3#..RHD 12V 0.6KW |
28100-22012 |
US $835.74 |
||
| replacement | |||||
|
28100
|
28100
28100-12040
Starter Assy
[08.1969 - 04.1974] 2K..KP3#..RHD 12V 0.6KW |
28100-12040 |
— | ||
|
28100
|
28100
28100-22021
Starter Assy
[04.1969 - 04.1974] 2K..KP3#..RHD 12V 0.8KW |
28100-22021 |
— | ||
|
28100
|
28100
28100-24022 Starter Assy[04.1974 - 11.1975] 2K..KP3# 12V 0.8KW |
28100-24022 |
US $741.10 |
||
| replacement | |||||
|
28100
|
28100
28100-24110
Starter Assy
[04.1974 - 11.1975] 2K..KP3# 12V 0.8KW |
28100-24110 |
— | ||
|
28100
|
28100
28100-24030 Starter Assy[04.1974 - 11.1975] 2K..KP3# 12V 0.6KW |
28100-24030 |
US $661.02 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[04.1974 - 11.1975] 2K..KP3# 12V 0.6KW |
28100-13130 |
— | ||
|
28100
|
28100
28100-24031 Starter Assy[11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6W,12V 0.6KW |
28100-24031 |
US $883.79 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6W,12V 0.6KW |
28100-13130 |
— | ||
|
28100
|
28100
28100-24060 Starter Assy[11.1975 - 01.1982] 2K..KP30,36..RHD 12V 0.8KW |
28100-24060 |
US $936.21 |
||
| replacement | |||||
|
28100
|
28100
28100-13020 Starter Assy[11.1975 - 01.1982] 2K..KP30,36..RHD 12V 0.8KW |
28100-13020 |
US $984.26 |
||
|
28110
|
28110
28110-13060 Housing Assy, Starter Drive[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28110-13060 |
US $74.26 |
||
|
28110
|
28110
28110-22012
Housing Assy, Starter Drive
[04.1969 - 04.1974] 2K..KP3#..RHD 12V 0.6KW,0.8KW |
28110-22012 |
— | ||
|
28110
|
28110
28110-24010
Housing Assy, Starter Drive
[04.1974 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28110-24010 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28111-51011 |
— | ||
|
28111
|
28111
90099-10158
Bush(For Starter Housing)
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
90099-10158 |
— | ||
|
28113
|
28113
28113-13060 Lever, Starter Pinion Drive[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28113-13060 |
US $9.32 |
||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28113-41011 |
— | ||
|
28119
|
28119
28199-15090
Cover, Starter End Frame
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28199-15090 |
— | ||
|
28120
|
28120
28120-13060
Yoke Assy, Starter
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28120-13060 |
— | ||
|
28120
|
28120
28120-22011
Yoke Assy, Starter
[04.1969 - 11.1975] 2K..KP3# 12V 0.6KW |
28120-22011 |
— | ||
|
28120
|
28120
28120-24020
Yoke Assy, Starter
[11.1975 - 01.1982] 2K..KP30,36 12V 0.8KW |
28120-24020 |
— | ||
|
28120
|
28120
28120-24030
Yoke Assy, Starter
[11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6KW |
28120-24030 |
— | ||
|
28120
|
28120
28120-89101
Yoke Assy, Starter
[04.1969 - 11.1975] 2K..KP3# 12V 0.8KW |
28120-89101 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-36040
Yoke Assy, Starter
[04.1969 - 11.1975] 2K..KP3# 12V 0.8KW |
28120-36040 |
— | ||
|
28130
|
28130
28130-13060 Frame Assy, Starter Commutator End[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28130-13060 |
US $43.97 |
||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28130-21011 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW,STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW,U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW,U/S 0.5 |
90099-10040 |
— | ||
|
28131
|
28131
90099-10157
Bearing, Starter Flange
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
90099-10157 |
— | ||
|
28142
|
28142
28142-10011
Brush, Starter
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW |
28142-10011 |
— | ||
|
28142
|
28142
28142-10020 Brush, Starter[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28142-10020 |
from US $3.85 |
||
|
28142
|
28142
28142-21010
Brush, Starter
[04.1969 - 01.1982] 2K..KP30,36 12V 0.8KW |
28142-21010 |
— | ||
|
28143
|
28143
28143-10020
Spring, Starter Brush
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28143-10020 |
— | ||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28143-40040 |
— | ||
|
28146
|
28146
28149-10020
Holder, Starter Brush
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28149-10020 |
— | ||
|
28149
|
28149
28141-10020
Insulator, Brush Holder
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28141-10020 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-22011
Switch Assy, Magnet Starter
[04.1969 - 04.1974] 2K..KP3# 12V 0.6KW,0.8KW |
28150-22011 |
— | ||
|
28150
|
28150
28150-24010
Switch Assy, Magnet Starter
[04.1974 - 11.1975] 2K..KP3# 12V 0.8KW |
28150-24010 |
— | ||
|
28150
|
28150
28150-24060 Switch Assy, Magnet Starter[11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6KW |
28150-24060 |
US $122.30 |
||
| replacement | |||||
|
28150
|
28150
28150-24061 Switch Assy, Magnet StarterMAGNET STARTER [11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6KW |
28150-24061 |
US $115.02 |
||
|
28150
|
28150
28150-24061 Switch Assy, Magnet StarterMAGNET STARTER [11.1975 - 01.1982] 2K..KP30,36..RHD 12V 0.8KW |
28150-24061 |
US $115.02 |
||
|
28160
|
28160
28160-10020 Armature Assy, Starter[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-22011 Armature Assy, Starter[08.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW |
28160-22011 |
US $237.33 |
||
|
28160
|
28160
28160-22021 Armature Assy, StarterSTARTER [08.1969 - 04.1974] 2K..KP3#..RHD 12V 0.8KW |
28160-22021 |
US $218.40 |
||
|
28163
|
28163
28163-10020
Nut Or Collar, Pinion Stop, Starter
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28163-10020 |
— | ||
| replacement | |||||
|
28163
|
28163
28163-10021
Nut Or Collar, Pinion Stop, Starter
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28163-10021 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[04.1969 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
90099-07047 |
— | ||
|
28163A
|
28163A
90099-07124
Bearing(For Starter Housing)
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
90099-07124 |
— | ||
|
28199
|
28199
28159-13060
Cover, Starter
[08.1986 - 08.1988] 2K..KP36 12V 0.6KW |
28159-13060 |
— | ||
|
28199
|
28199
28199-24030
Cover, Starter
[11.1975 - 08.1986] 2K,3KH..KP3# 12V 0.6KW,0.8KW |
28199-24030 |
— | ||
|
2813826141
|
2813826141
28138-26141
Rubber(for Starter Bearing Cover)
|
28138-26141 |
— | ||
|
9009901524
|
9009901524
90099-01524
New Genuine Part
|
90099-01524 |
— | ||
|
9009904332
|
9009904332
90099-04332
New Genuine Part
|
90099-04332 |
— | ||
|
9009904343
|
9009904343
90099-04343
New Genuine Part
|
90099-04343 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
