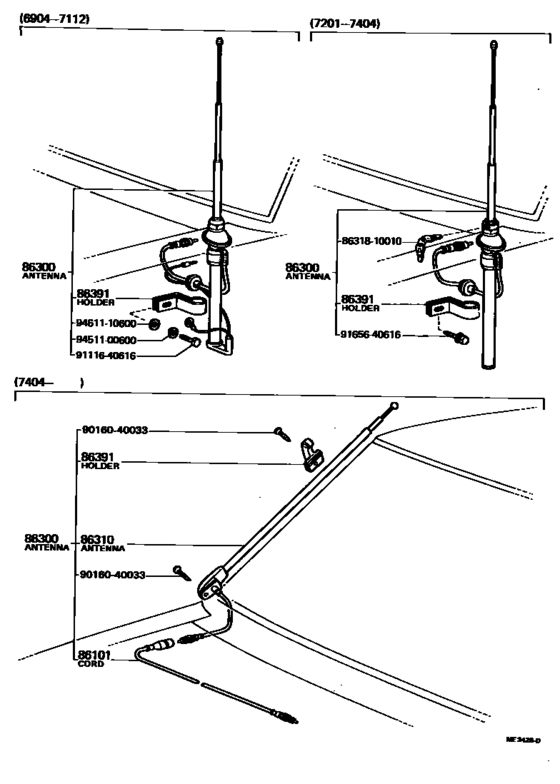

Antenna ([04.1969 - ] (6904- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- Europe
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-10020 Cord Sub-Assy, AntennaANTENNA [04.1974 - 08.1988] KP30,36 |
86101-10020 |
US $22.57 |
||
|
86300
|
86300
86300-10050
Antenna Assy, W/holder
[04.1969 - 12.1971] KP3#..LHD |
86300-10050 |
— | ||
|
86300
|
86300
86300-10070
Antenna Assy, W/holder
[01.1972 - 04.1974] KP3#..LHD |
86300-10070 |
— | ||
|
86300
|
86300
86300-10090 Antenna Assy, W/holderW/HOLDER [04.1974 - 06.1974] KP3# |
86300-10090 |
US $51.11 |
||
| replacement | |||||
|
86300
|
86300
86300-10091 Antenna Assy, W/holderW/HOLDER [04.1974 - 06.1974] KP3# |
86300-10091 |
US $51.25 |
||
|
86300
|
86300
86300-10091 Antenna Assy, W/holderW/HOLDER [06.1974 - 08.1988] KP30,36 |
86300-10091 |
US $51.25 |
||
|
86310
|
86310
86310-10040
Antenna Assy, W/o Holder
[04.1974 - 06.1974] KP3# |
86310-10040 |
— | ||
| replacement | |||||
|
86310
|
86310
86310-10041
Antenna Assy, W/o Holder
[04.1974 - 06.1974] KP3# |
86310-10041 |
— | ||
|
86310
|
86310
86310-10041
Antenna Assy, W/o Holder
[06.1974 - 08.1988] KP30,36 |
86310-10041 |
— | ||
|
86391
|
86391
86391-10030
Holder, Antenna
[04.1974 - 08.1988] KP30,36 |
86391-10030 |
— | ||
|
86391
|
86391
86391-12020
Holder, Antenna
[04.1969 - 04.1974] KP3#..LHD |
86391-12020 |
— | ||
|
8631810010
|
8631810010
86318-10010
New Genuine Part
|
86318-10010 |
— | ||
|
9016040033
|
9016040033
90160-40033 New Genuine Part |
90160-40033 |
US $1.89 |
||
| replacement | |||||
|
9016040033
|
9016040033
93510-64020 New Genuine Part |
93510-64020 |
US $1.75 |
||
|
9111640616
|
9111640616
91116-40616 New Genuine Part |
91116-40616 |
US $2.18 |
||
| replacement | |||||
|
9111640616
|
9111640616
91116-50616 New Genuine Part |
91116-50616 |
US $1.60 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.61 |
||
