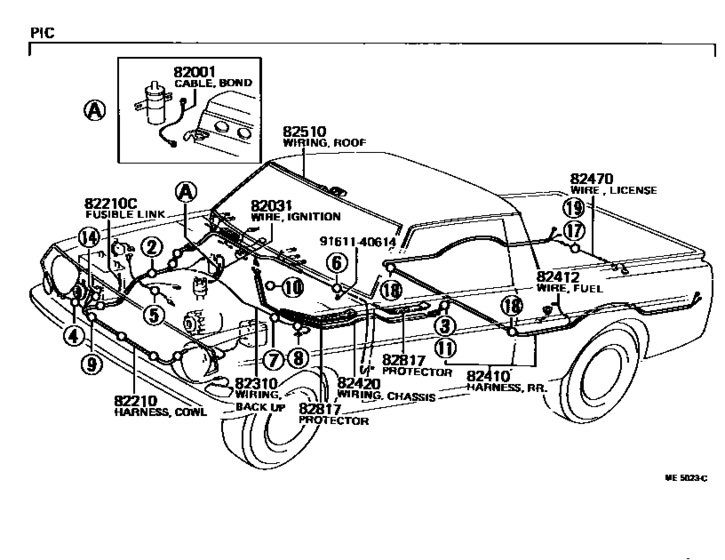

Wiring & Clamp ([11.1969 - 12.1971] (6911-7112)PIC) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- Europe
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07015 Cable, Bond, No.1BOND, NO.1 [04.1969 - 08.1988] KP3# L=165 |
90980-07015 |
US $7.72 |
||
|
82031
|
82031
82031-10010
Wire Sub-Assy, Ignition Coil
[04.1969 - 11.1975] KP3# |
82031-10010 |
— | ||
|
82210
|
82210
82210-10302
Harness Assy, Wiring Cowl To Headlamp, No.1
[01.1972 - 10.1973] KP3#..LHD |
82210-10302 |
— | ||
|
82210
|
82210
82210-10303
Harness Assy, Wiring Cowl To Headlamp, No.1
[10.1973 - 04.1974] KP3#..LHD |
82210-10303 |
— | ||
|
82210
|
82210
82210-10304
Harness Assy, Wiring Cowl To Headlamp, No.1
[04.1974 - 07.1974] KP3#..LHD |
82210-10304 |
— | ||
|
82210
|
82210
82210-10305
Harness Assy, Wiring Cowl To Headlamp, No.1
[07.1974 - 10.1974] KP3#..LHD |
82210-10305 |
— | ||
|
82210
|
82210
82210-10306
Harness Assy, Wiring Cowl To Headlamp, No.1
[10.1974 - 11.1975] KP3#..LHD |
82210-10306 |
— | ||
|
82210
|
82210
82210-10308 Harness Assy, Wiring Cowl To Headlamp, No.1WIRING COWL TO HEADLAMP, NO.1 [11.1975 - 08.1988] KP30,36..LHD |
82210-10308 |
US $412.05 |
||
|
82210
|
82210
82210-11101
Harness Assy, Wiring Cowl To Headlamp, No.1
[10.1970 - 12.1971] KP36..PIC |
82210-11101 |
— | ||
|
82210
|
82210
82210-11120
Harness Assy, Wiring Cowl To Headlamp, No.1
[11.1969 - 10.1970] KP36..PIC..LHD |
82210-11120 |
— | ||
|
82210C
|
82210C
90982-08012 Fusible Link[10.1970 - 08.1988] KP3# |
90982-08012 |
US $7.28 |
||
|
82310
|
82310
82310-10040
Wiring Assy, To Back Up Lamp Switch
[04.1969 - 04.1970] KP3# |
82310-10040 |
— | ||
|
82310
|
82310
82310-10041
Wiring Assy, To Back Up Lamp Switch
[04.1970 - 10.1970] KP3# |
82310-10041 |
— | ||
|
82310
|
82310
82310-10042
Wiring Assy, To Back Up Lamp Switch
[10.1970 - 12.1971] KP3# |
82310-10042 |
— | ||
|
82310
|
82310
82310-10043
Wiring Assy, To Back Up Lamp Switch
[01.1972 - 01.1985] KP30,36 |
82310-10043 |
— | ||
|
82310
|
82310
82310-10321 Wiring Assy, To Back Up Lamp SwitchTO BACK UP LAMP SWITCH [01.1985 - 08.1988] KP36 |
82310-10321 |
US $13.25 |
||
|
82410
|
82410
82410-11120 Harness Assy, Wiring To Rear LampWIRING TO REAR LAMP [11.1969 - 10.1970] KP36..PIC |
82410-11120 |
US $36.40 |
||
| replacement | |||||
|
82410
|
82410
82410-11121
Harness Assy, Wiring To Rear Lamp
[11.1969 - 10.1970] KP36..PIC |
82410-11121 |
— | ||
|
82410
|
82410
82410-11121
Harness Assy, Wiring To Rear Lamp
[10.1970 - 10.1973] KP36..PIC |
82410-11121 |
— | ||
|
82410
|
82410
82410-11122
Harness Assy, Wiring To Rear Lamp
[10.1973 - 11.1975] KP36..PIC |
82410-11122 |
— | ||
|
82410
|
82410
82410-11125 Harness Assy, Wiring To Rear LampWIRING TO REAR LAMP [11.1975 - 08.1988] KP36,37..PIC |
82410-11125 |
US $158.70 |
||
|
82412
|
82412
82412-11040
Wire, Fuel Gage
[11.1969 - 11.1975] KP36..PIC |
82412-11040 |
— | ||
|
82412
|
82412
82412-11041
Wire, Fuel Gage
[11.1975 - 08.1988] KP36,37..PIC |
82412-11041 |
— | ||
|
82420
|
82420
82420-11010
Wiring Assy, Chassis
[11.1969 - 10.1973] KP36..PIC |
82420-11010 |
— | ||
|
82420
|
82420
82420-11011
Wiring Assy, Chassis
[10.1973 - 11.1975] KP36..PIC |
82420-11011 |
— | ||
|
82470
|
82470
82470-11030
Wire Assy, License Lamp Feed
[11.1969 - 08.1988] KP36,37..PIC |
82470-11030 |
— | ||
|
82510
|
82510
82520-10030 Wiring Assy, RoofROOF [04.1969 - 08.1976] KP3# |
82520-10030 |
US $4.37 |
||
|
82510
|
82510
82520-10040 Wiring Assy, RoofROOF [08.1976 - 08.1988] KP3# |
82520-10040 |
US $10.19 |
||
|
82817
|
82817
82817-10020 Protector, Wiring Harness, No.1WIRING HARNESS, NO.1 [04.1969 - 08.1988] KP3# L=750 |
82817-10020 |
US $8.88 |
||
|
82817
|
82817
82817-10030 Protector, Wiring Harness, No.1WIRING HARNESS, NO.1 [04.1969 - 12.1971] KP3# L=450 |
82817-10030 |
US $4.66 |
||
| replacement | |||||
|
82817
|
82817
82817-10020 Protector, Wiring Harness, No.1WIRING HARNESS, NO.1 [04.1969 - 12.1971] KP3# L=450 |
82817-10020 |
US $8.88 |
||
|
82817
|
82817
82817-11010
Protector, Wiring Harness, No.1
[04.1969 - 07.1977] KP36 L=350 |
82817-11010 |
— | ||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
