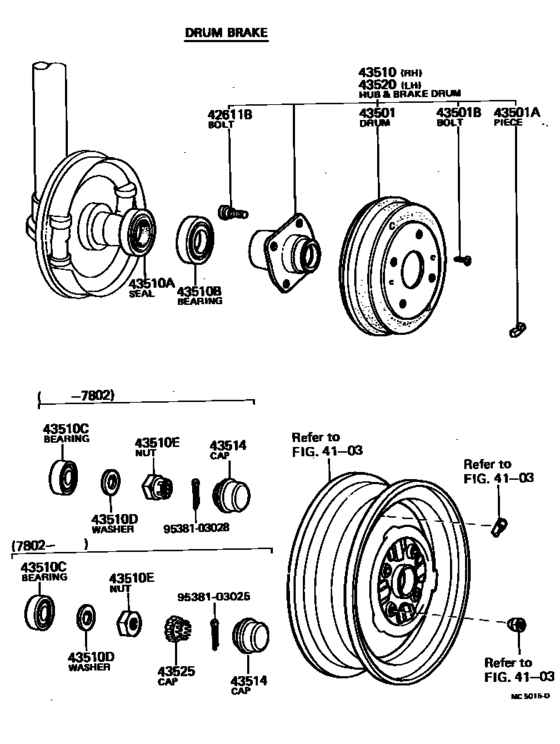

Front Axle Hub ([04.1969 - ] (6904- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- Europe
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90942-02021
Bolt, Hub (For Front Axle)
[04.1969 - 10.1974] KP3# *12-1.5PX38-24 |
90942-02021 |
— | ||
| replacement | |||||
|
42611B
|
42611B
90942-02047 Bolt, Hub[04.1969 - 10.1974] KP3# *12-1.5PX38-24 |
90942-02047 |
from US $3.40 |
||
|
42611B
|
42611B
90942-02032
Bolt, Hub (For Front Axle)
[10.1974 - 03.1977] KP3# *12-1.5PX38-25.5 |
90942-02032 |
— | ||
| replacement | |||||
|
42611B
|
42611B
90942-02047 Bolt, Hub[10.1974 - 03.1977] KP3# *12-1.5PX38-25.5 |
90942-02047 |
from US $3.40 |
||
|
42611B
|
42611B
90942-02035
Bolt, Hub (For Front Axle)
[03.1977 - 06.1983] KP3# *12-1.5PX36-23.5,DRUM BRAKE |
90942-02035 |
— | ||
| replacement | |||||
|
42611B
|
42611B
90942-02047 Bolt, Hub[03.1977 - 06.1983] KP3# *12-1.5PX36-23.5,DRUM BRAKE |
90942-02047 |
from US $3.40 |
||
|
42611B
|
42611B
90942-02036 Bolt, Hub (For Front Axle)[03.1977 - 02.1978] KP30,36 *12-1.5PX33-20.5,DISC BRAKE |
90942-02036 |
US $3.35 |
||
| replacement | |||||
|
42611B
|
42611B
90942-02048 Bolt, Hub (For Front Axle)[03.1977 - 02.1978] KP30,36 *12-1.5PX33-20.5,DISC BRAKE |
90942-02048 |
US $8.24 |
||
|
43501
|
43501
43512-12011 Drum Sub-Assy, Front BrakeFRONT BRAKE [04.1969 - 12.1970] KP3# |
43512-12011 |
US $85.90 |
||
| replacement | |||||
|
43501
|
43501
43512-12012 Drum Sub-Assy, Front BrakeFRONT BRAKE [04.1969 - 12.1970] KP3# |
43512-12012 |
US $109.20 |
||
|
43501
|
43501
43512-12012 Drum Sub-Assy, Front BrakeFRONT BRAKE [12.1970 - 08.1988] KP3# |
43512-12012 |
US $109.20 |
||
|
43501A
|
43501A
90937-01096 Piece, Balance (For Front Brake Drum)BALANCE (FOR FRONT BRAKE DRUM) [04.1969 - 08.1988] KP3# 8.5G,8.5G |
90937-01096 |
US $2.48 |
||
|
43501A
|
43501A
90937-01097
Piece, Balance (For Front Brake Drum)
[04.1969 - 08.1988] KP3# 16.5G,16.5G |
90937-01097 |
— | ||
|
43501A
|
43501A
90937-01098
Piece, Balance (For Front Brake Drum)
[04.1969 - 08.1988] KP3# 24.5G,24.5G |
90937-01098 |
— | ||
|
43501A
|
43501A
90937-01099
Piece, Balance (For Front Brake Drum)
[04.1969 - 08.1988] KP3# 32.5G,32.5G |
90937-01099 |
— | ||
|
43501A
|
43501A
90937-01100 Piece, Balance (For Rear Brake Drum)[04.1969 - 08.1988] KP3# 40.5G,40.5G |
90937-01100 |
US $1.14 |
||
|
43501B
|
43501B
90113-10007 Bolt, Set (For Rear Brake Drum Setting)[04.1969 - 08.1988] KP3# |
90113-10007 |
US $1.38 |
||
|
43510
|
43510
43510-12011
Hub And Brake Drum Assy, Front Axle, Rh
[04.1969 - 12.1970] KP3# |
43510-12011 |
— | ||
| replacement | |||||
|
43510
|
43510
43510-12012 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [04.1969 - 12.1970] KP3# |
43510-12012 |
US $211.12 |
||
|
43510
|
43510
43510-12012 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [12.1970 - 08.1988] KP3# |
43510-12012 |
US $211.12 |
||
|
43510A
|
43510A
90311-40108 Seal, Oil (For Front Axle Hub)OIL (FOR FRONT AXLE HUB) [04.1971 - 08.1988] KP3# |
90311-40108 |
US $6.27 |
||
|
43510A
|
43510A
90312-40011 Seal, Oil (For Front Axle Hub)OIL (FOR FRONT AXLE HUB) [04.1969 - 04.1971] KP3# |
90312-40011 |
US $5.10 |
||
| replacement | |||||
|
43510A
|
43510A
90311-40108 Seal, Oil (For Front Axle Hub)OIL (FOR FRONT AXLE HUB) [04.1969 - 04.1971] KP3# |
90311-40108 |
US $6.27 |
||
|
43510B
|
43510B
90368-26027 Bearing, Tapered Roller (For Front Axle Inner Bearing)TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) [04.1969 - 08.1988] KP3# |
90368-26027 |
US $15.90 |
||
|
43510C
|
43510C
90368-17017 Bearing (For Rear Axle Shaft Outer)[04.1969 - 08.1988] KP3# |
90368-17017 |
from US $27.05 |
||
|
43510D
|
43510D
90214-16010 Washer, Claw (For Rear Axle Shaft)[04.1969 - 08.1988] KP3# |
90214-16010 |
from US $1.69 |
||
|
43510E
|
43510E
90170-16137
Nut, Hexagon (For Drive Pinion Extension Shaft)
[02.1978 - 08.1988] KP3# |
90170-16137 |
— | ||
| replacement | |||||
|
43510E
|
43510E
94125-41600 Nut (For Rear Axle Shaft)[02.1978 - 08.1988] KP3# |
94125-41600 |
from US $1.27 |
||
|
43510E
|
43510E
90171-16025 Nut (For Steering Knuckle)[04.1969 - 08.1969] KP3# |
90171-16025 |
US $2.62 |
||
| replacement | |||||
|
43510E
|
43510E
90171-16033
Nut (For Steering Knuckle)
[04.1969 - 08.1969] KP3# |
90171-16033 |
— | ||
|
43510E
|
43510E
90171-16033
Nut (For Steering Knuckle)
[08.1969 - 02.1978] KP3# |
90171-16033 |
— | ||
|
43514
|
43514
43514-12010 Cap, Rear Hub Grease[04.1969 - 08.1988] KP3# |
43514-12010 |
US $3.32 |
||
|
43520
|
43520
43510-12011
Hub And Brake Drum Assy, Front Axle, Rh
[04.1969 - 12.1970] KP3# |
43510-12011 |
— | ||
| replacement | |||||
|
43520
|
43520
43510-12012 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [04.1969 - 12.1970] KP3# |
43510-12012 |
US $211.12 |
||
|
43520
|
43520
43510-12012 Hub And Brake Drum Assy, Front Axle, RhFRONT AXLE, RH [12.1970 - 08.1988] KP3# |
43510-12012 |
US $211.12 |
||
|
43525
|
43525
43525-20011 Cap, Front Wheel Adjusting Lock[02.1978 - 08.1988] KP3# |
43525-20011 |
from US $3.38 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
||
|
9538103028
|
9538103028
95381-03028 PIN |
95381-03028 |
US $1.65 |
||
