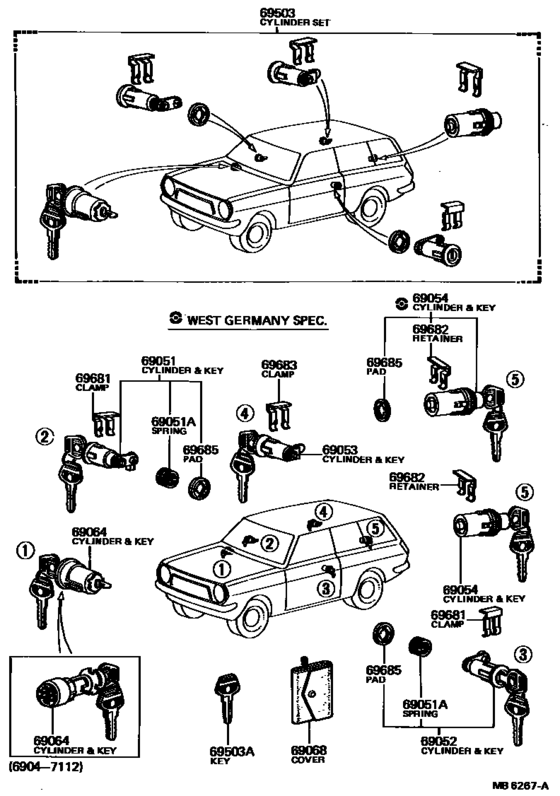

Lock Cylinder Set ([04.1969 - 09.1978] (6904-7809)V) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- Europe
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-11030
Cylinder & Key Set, Door Lock, Rh
[04.1969 - 10.1970] KP36 |
69051-11030 |
— | ||
|
69051
|
69051
69051-19025
Cylinder & Key Set, Door Lock, Rh
[10.1970 - 11.1975] KP36 |
69051-19025 |
— | ||
| replacement | |||||
|
69051
|
69051
69051-19105
Cylinder & Key Set, Door Lock, Rh
[10.1970 - 11.1975] KP36 |
69051-19105 |
— | ||
|
69051
|
69051
69051-19105
Cylinder & Key Set, Door Lock, Rh
[11.1975 - 08.1988] KP36,37 |
69051-19105 |
— | ||
|
69051A
|
69051A
90508-09280
Spring, Door Lock Cylinder
[10.1970 - 05.1971] KP36 |
90508-09280 |
— | ||
|
69051A
|
69051A
90508-10278 Spring, Door Lock CylinderDOOR LOCK CYLINDER [05.1971 - 08.1988] KP36,37 |
90508-10278 |
US $1.89 |
||
|
69052
|
69052
69052-11020
Cylinder & Key Set, Door Lock, Lh
[04.1969 - 10.1970] KP36 |
69052-11020 |
— | ||
|
69052
|
69052
69052-19025 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [10.1970 - 11.1975] KP36 |
69052-19025 |
US $37.42 |
||
| replacement | |||||
|
69052
|
69052
69052-19105 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [10.1970 - 11.1975] KP36 |
69052-19105 |
US $47.32 |
||
|
69052
|
69052
69052-19105 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [11.1975 - 08.1988] KP36,37 |
69052-19105 |
US $47.32 |
||
|
69053
|
69053
69053-11013 Cylinder & Key Set, Fuel Inlet LockFUEL INLET LOCK [11.1975 - 08.1988] KP36,37 |
69053-11013 |
US $39.17 |
||
|
69053
|
69053
69053-11020 Cylinder & Key Set, Fuel Inlet LockFUEL INLET LOCK [04.1969 - 10.1970] KP36 |
69053-11020 |
US $35.67 |
||
| replacement | |||||
|
69053
|
69053
69053-11021
Cylinder & Key Set, Fuel Inlet Lock
[04.1969 - 10.1970] KP36 |
69053-11021 |
— | ||
|
69053
|
69053
69053-11021
Cylinder & Key Set, Fuel Inlet Lock
[10.1970 - 12.1971] KP36 |
69053-11021 |
— | ||
|
69053
|
69053
69053-11022 Cylinder & Key Set, Fuel Inlet LockFUEL INLET LOCK [01.1972 - 11.1975] KP36 |
69053-11022 |
US $39.02 |
||
| replacement | |||||
|
69053
|
69053
69053-11013 Cylinder & Key Set, Fuel Inlet LockFUEL INLET LOCK [01.1972 - 11.1975] KP36 |
69053-11013 |
US $39.17 |
||
|
69054
|
69054
69054-11023
Cylinder & Key Set, Back Door Lock
[11.1975 - 09.1978] KP36..V |
69054-11023 |
— | ||
|
69054
|
69054
69054-11030 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [04.1969 - 10.1970] KP36..V |
69054-11030 |
US $81.54 |
||
| replacement | |||||
|
69054
|
69054
69054-11023
Cylinder & Key Set, Back Door Lock
[04.1969 - 10.1970] KP36..V |
69054-11023 |
— | ||
|
69054
|
69054
69054-11031 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [10.1970 - 11.1975] KP36..V |
69054-11031 |
US $81.54 |
||
| replacement | |||||
|
69054
|
69054
69054-11023
Cylinder & Key Set, Back Door Lock
[10.1970 - 11.1975] KP36..V |
69054-11023 |
— | ||
|
69054
|
69054
69055-19075
Cylinder & Key Set, Back Door Lock
[03.1976 - 09.1978] KP36..V..LHD WEST GERMANY SPEC |
69055-19075 |
— | ||
|
69064
|
69064
69057-11010 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [11.1975 - 09.1978] KP36..V 6 NOTCH KEY |
69057-11010 |
US $75.71 |
||
|
69064
|
69064
69064-11012 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [11.1975 - 08.1988] KP36,37 5 NOTCH KEY |
69064-11012 |
US $75.71 |
||
|
69064
|
69064
69064-11020 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [01.1972 - 09.1972] KP36 |
69064-11020 |
US $75.71 |
||
| replacement | |||||
|
69064
|
69064
69064-11012 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [01.1972 - 09.1972] KP36 |
69064-11012 |
US $75.71 |
||
|
69064
|
69064
69064-11021 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [09.1972 - 11.1975] KP36 |
69064-11021 |
US $75.71 |
||
| replacement | |||||
|
69064
|
69064
69064-11012 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [09.1972 - 11.1975] KP36 |
69064-11012 |
US $75.71 |
||
|
69064
|
69064
84045-11020 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [04.1969 - 10.1970] KP36 |
84045-11020 |
US $45.86 |
||
|
69064
|
69064
84045-11021 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [10.1970 - 12.1971] KP36 |
84045-11021 |
US $44.41 |
||
| replacement | |||||
|
69064
|
69064
84045-11010
Cylinder & Key Set, Ignition Switch Lock
[10.1970 - 12.1971] KP36 |
84045-11010 |
— | ||
|
69068
|
69068
69555-20010 Cover Sub-Assy, Key[02.1970 - 09.1976] KP3# |
69555-20010 |
from US $13.15 |
||
|
69068
|
69068
84041-12010 Cover Sub-Assy, KeyKEY [04.1969 - 02.1970] KP3# |
84041-12010 |
US $8.88 |
||
| replacement | |||||
|
69068
|
69068
69555-20010 Cover Sub-Assy, Key[04.1969 - 02.1970] KP3# |
69555-20010 |
from US $13.15 |
||
|
69503
|
69503
69005-19155
Cylinder Set, Lock
[11.1975 - 09.1978] KP36..V 6 NOTCH KEY |
69005-19155 |
— | ||
|
69503
|
69503
69005-19165
Cylinder Set, Lock
[03.1976 - 09.1978] KP36..V..LHD WEST GERMANY SPEC |
69005-19165 |
— | ||
|
69503
|
69503
69503-11050
Cylinder Set, Lock
[04.1969 - 10.1970] KP36..V W/O FUEL LOCK |
69503-11050 |
— | ||
|
69503
|
69503
69503-11060
Cylinder Set, Lock
[04.1969 - 10.1970] KP36..V W/FUEL LOCK |
69503-11060 |
— | ||
|
69503
|
69503
69503-19225 Cylinder Set, LockLOCK [10.1970 - 12.1971] KP36..V W/O FUEL LOCK |
69503-19225 |
US $157.25 |
||
| replacement | |||||
|
69503
|
69503
69503-11051
Cylinder Set, Lock
[10.1970 - 12.1971] KP36..V W/O FUEL LOCK |
69503-11051 |
— | ||
|
69503
|
69503
69503-19226 Cylinder Set, LockLOCK [01.1972 - 09.1972] KP36..V W/O FUEL LOCK |
69503-19226 |
US $155.79 |
||
| replacement | |||||
|
69503
|
69503
69503-19227
Cylinder Set, Lock
[01.1972 - 09.1972] KP36..V W/O FUEL LOCK |
69503-19227 |
— | ||
|
69503
|
69503
69503-19227
Cylinder Set, Lock
[09.1972 - 11.1975] KP36..V W/O FUEL LOCK |
69503-19227 |
— | ||
|
69503
|
69503
69503-19235
Cylinder Set, Lock
[10.1970 - 12.1971] KP36..V W/FUEL LOCK |
69503-19235 |
— | ||
|
69503
|
69503
69503-19236 Cylinder Set, LockLOCK [01.1972 - 09.1972] KP36..V W/FUEL LOCK |
69503-19236 |
US $174.72 |
||
| replacement | |||||
|
69503
|
69503
69503-19237
Cylinder Set, Lock
[01.1972 - 09.1972] KP36..V W/FUEL LOCK |
69503-19237 |
— | ||
|
69503
|
69503
69503-19237
Cylinder Set, Lock
[09.1972 - 11.1975] KP36..V W/FUEL LOCK |
69503-19237 |
— | ||
|
69503A
|
69503A
90999-00040 Key, BlankBLANK [04.1969 - 10.1970] KP36 |
90999-00040 |
US $20.82 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00067
Key, Blank
[04.1969 - 10.1970] KP36 |
90999-00067 |
— | ||
|
69503A
|
69503A
90999-00047 Key, BlankBLANK [10.1970 - 12.1971] KP36 |
90999-00047 |
US $20.82 |
||
| replacement | |||||
|
69503A
|
69503A
90999-00067
Key, Blank
[10.1970 - 12.1971] KP36 |
90999-00067 |
— | ||
|
69503A
|
69503A
90999-00057
Key, Blank
[01.1972 - 11.1975] KP36 |
90999-00057 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00067
Key, Blank
[01.1972 - 11.1975] KP36 |
90999-00067 |
— | ||
|
69503A
|
69503A
90999-00067
Key, Blank
[11.1975 - 08.1988] KP36,37 MASTER KEY |
90999-00067 |
— | ||
|
69681
|
69681
69681-11010
Clamp, Door Lock Cylinder & Sleeve
[04.1969 - 10.1970] KP36 |
69681-11010 |
— | ||
|
69681
|
69681
69681-20010 Clamp, Door Lock Cylinder & Sleeve[10.1970 - 02.1975] KP3# |
69681-20010 |
US $2.18 |
||
| replacement | |||||
|
69681
|
69681
69681-20040 Retainer, Back Door Lock Cylinder[10.1970 - 02.1975] KP3# |
69681-20040 |
from US $1.84 |
||
|
69681
|
69681
69681-20040 Retainer, Back Door Lock Cylinder[02.1975 - 08.1988] KP3# |
69681-20040 |
from US $1.84 |
||
|
69682
|
69682
69682-13010
Retainer, Lock Cylinder
[04.1969 - 09.1978] KP36..V |
69682-13010 |
— | ||
|
69683
|
69683
69681-20010 Clamp, Door Lock Cylinder & Sleeve[11.1971 - 12.1971] KP3# |
69681-20010 |
US $2.18 |
||
| replacement | |||||
|
69683
|
69683
69681-20040 Retainer, Back Door Lock Cylinder[11.1971 - 12.1971] KP3# |
69681-20040 |
from US $1.84 |
||
|
69683
|
69683
69681-20040 Retainer, Back Door Lock Cylinder[02.1975 - 08.1988] KP36 |
69681-20040 |
from US $1.84 |
||
|
69683
|
69683
69683-10010
Clamp, Fuel Lock Cylinder
[04.1969 - 11.1971] KP3# |
69683-10010 |
— | ||
| replacement | |||||
|
69683
|
69683
69681-20040 Retainer, Back Door Lock Cylinder[04.1969 - 11.1971] KP3# |
69681-20040 |
from US $1.84 |
||
|
69685
|
69685
69563-11010
Pad, Lock Cylinder
[03.1976 - 09.1978] KP36..V..LHD BACK DOOR,WEST GERMANY SPEC |
69563-11010 |
— | ||
|
69685
|
69685
69685-12010 Pad, Fuel Filler Lid Lock Cylinder[09.1969 - 08.1988] KP3# |
69685-12010 |
from US $1.27 |
||
