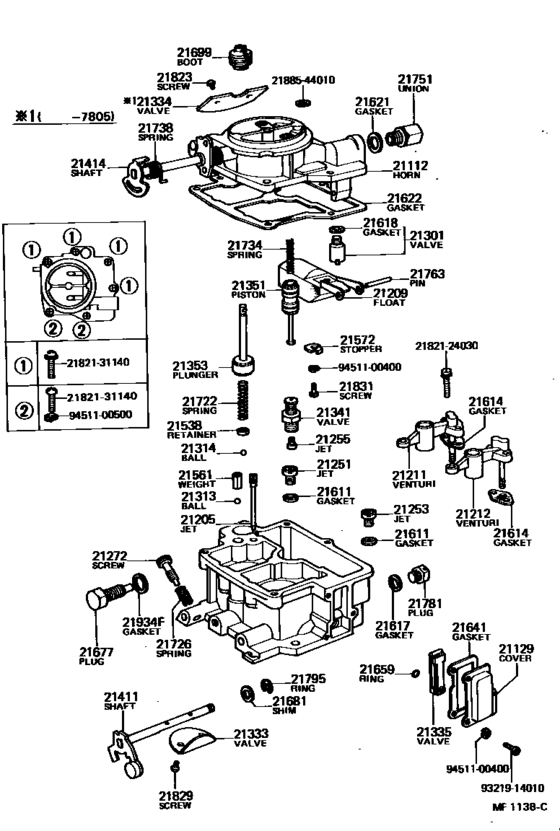

Carburetor ([10.1973 - ] (7310- )) Diagram Toyota TOYOTA1000
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- KP37
- body
- PIC
- ENGINE
- 3KH
- From
- 07.1977
- To
- 08.1981
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21012-24030
Horn, Air
[07.1977 - 05.1978] 3KH..KP37 |
21012-24030 |
— | ||
|
21112
|
21112
21112-12070 Horn, AirAIR [05.1978 - 08.1981] 3KH..KP37 |
21112-12070 |
US $142.69 |
||
|
21129
|
21129
21129-24030 Cover(For Thermostatic Valve)[05.1973 - 05.1978] 2K,3KH..KP3# |
21129-24030 |
US $8.74 |
||
|
21129
|
21129
21129-24160
Cover(For Thermostatic Valve)
[05.1978 - 08.1981] 3KH..KP37 |
21129-24160 |
— | ||
|
21205
|
21205
21205-24510 Jet Sub-Assy, SlowSLOW [05.1978 - 08.1981] 3KH..KP37 ID=0.47 |
21205-24510 |
US $13.40 |
||
|
21205
|
21205
90999-44145 Jet Sub-Assy, SlowSLOW [07.1977 - 05.1978] 3KH..KP37 ID=0.45 |
90999-44145 |
US $6.70 |
||
|
21209
|
21209
21209-24010 Float Sub-Assy[11.1969 - 08.1988] 2K,3KH..KP3# |
21209-24010 |
US $11.65 |
||
|
21211
|
21211
21211-24230 Venturi, 1St Small1ST SMALL [07.1977 - 08.1981] 3KH..KP37 |
21211-24230 |
US $41.06 |
||
|
21212
|
21212
21212-24231 Venturi, 2Nd Small2ND SMALL [07.1977 - 08.1981] 3KH..KP37 |
21212-24231 |
US $30.28 |
||
|
21251
|
21251
90999-41105
Jet, 1St Main
[07.1977 - 08.1981] 3KH..KP37 |
90999-41105 |
— | ||
|
21253
|
21253
90999-42141 Jet, 2Nd Main[07.1977 - 08.1981] 3KH..KP37 |
90999-42141 |
US $7.86 |
||
| replacement | |||||
|
21253
|
21253
90999-41141 Jet, 1St Main1ST MAIN [07.1977 - 08.1981] 3KH..KP37 |
90999-41141 |
US $4.66 |
||
|
21255
|
21255
90999-43080 Jet, PowerPOWER [07.1977 - 08.1981] 3KH..KP37 |
90999-43080 |
US $6.41 |
||
|
21272
|
21272
21273-24230
Screw, 1St Idle Adjusting
[04.1973 - 02.1980] 2K,3KH..KP3# |
21273-24230 |
— | ||
|
21272
|
21272
21273-24231 Screw, Throttle Adjusting[06.1980 - 08.1981] 3KH..KP37 |
21273-24231 |
US $9.26 |
||
|
21301
|
21301
21301-24030
Valve Sub-Assy, Needle
[01.1972 - 09.1979] 2K,3KH..KP3# |
21301-24030 |
— | ||
|
21301
|
21301
21301-24580
Valve Sub-Assy, Needle
[06.1980 - 08.1981] 3KH..KP37 |
21301-24580 |
— | ||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[04.1969 - 08.1988] 2K,3KH..KP3# |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-60010 Ball, Steel, No.2(For Pump Plunger)[04.1969 - 08.1988] 2K,3KH..KP3# |
21314-60010 |
US $3.64 |
||
| replacement | |||||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[04.1969 - 08.1988] 2K,3KH..KP3# |
21314-11020 |
US $3.44 |
||
|
21333
|
21333
21333-22010 Valve, High SpeedHIGH SPEED [04.1969 - 08.1988] 2K,3KH..KP3# |
21333-22010 |
US $8.88 |
||
|
21334
|
21334
21334-25030 Valve, ChokeCHOKE [01.1972 - 05.1978] 2K,3KH..KP3# |
21334-25030 |
US $4.95 |
||
|
21335
|
21335
21335-24030
Valve, Thermostatic
[07.1977 - 05.1978] 3KH..KP37 |
21335-24030 |
— | ||
|
21335
|
21335
21335-24230
Valve, Thermostatic
[06.1980 - 08.1981] 3KH..KP37 |
21335-24230 |
— | ||
|
21341
|
21341
21341-24030 Valve, PowerPOWER [07.1977 - 08.1981] 3KH..KP37 |
21341-24030 |
US $15.87 |
||
|
21351
|
21351
21351-33080
Piston, Power
[04.1973 - 08.1988] 2K,3KH..KP3# |
21351-33080 |
— | ||
|
21353
|
21353
21305-22011
Plunger, Pump
[04.1969 - 08.1988] 2K,3KH..KP3# |
21305-22011 |
— | ||
|
21411
|
21411
21432-24030
Shaft, High Speed
[07.1977 - 05.1978] 3KH..KP37 |
21432-24030 |
— | ||
|
21411
|
21411
21432-24440
Shaft, High Speed
[05.1978 - 08.1981] 3KH..KP37 |
21432-24440 |
— | ||
|
21414
|
21414
21054-24010 Shaft, ChokeCHOKE [07.1977 - 08.1981] 3KH..KP37 |
21054-24010 |
US $21.55 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[04.1969 - 08.1988] 2K,3KH..KP3# |
21538-31010 |
US $3.85 |
||
|
21561
|
21561
21561-22010
Weight, Pump Discharge
[05.1970 - 08.1988] 2K,3KH..KP3# |
21561-22010 |
— | ||
|
21572
|
21572
21572-33080 Stop, Power PistonPOWER PISTON [04.1973 - 08.1988] 2K,3KH..KP3# |
21572-33080 |
US $3.49 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[04.1969 - 08.1988] 2K,3KH..KP3# |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-22010 Gasket, Venturi[04.1969 - 08.1988] 2K,3KH..KP3# |
21614-22010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-24580 Gasket, Venturi[04.1969 - 08.1988] 2K,3KH..KP3# |
21614-24580 |
US $2.97 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[04.1973 - 08.1988] 2K,3KH..KP3# |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[06.1980 - 08.1981] 3KH..KP37 |
21618-14010 |
— | ||
|
21618
|
21618
21618-24030
Gasket, Needle Valve Seat
[01.1972 - 09.1979] 2K,3KH..KP3# |
21618-24030 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[04.1970 - 08.1988] 2K,3KH..KP3# |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-24011
Gasket, Air Horn
[11.1972 - 05.1978] 2K,3KH..KP3# |
21622-24011 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-24580
Gasket, Air Horn
[11.1972 - 05.1978] 2K,3KH..KP3# |
21622-24580 |
— | ||
|
21622
|
21622
21622-24440 Gasket, Air HornAIR HORN [05.1978 - 08.1988] 2K,3KH..KP3# |
21622-24440 |
US $9.17 |
||
| replacement | |||||
|
21622
|
21622
21622-24580
Gasket, Air Horn
[05.1978 - 08.1988] 2K,3KH..KP3# |
21622-24580 |
— | ||
|
21641
|
21641
21641-23010
Gasket(For Thermostatic Valve Cover)
[04.1969 - 05.1978] 2K,3KH..KP3# |
21641-23010 |
— | ||
|
21659
|
21659
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[04.1973 - 05.1978] 2K,3KH..KP3# |
21641-24030 |
— | ||
|
21677
|
21677
21677-24100 Plug[04.1973 - 08.1988] 2K,3KH..KP3# |
21677-24100 |
US $12.52 |
||
|
21681
|
21681
21681-21060 Shim(For High Speed Shaft)CHOKE CONNECTOR SHAFT [04.1969 - 08.1988] 2K,3KH..KP3# T=0.1 |
21681-21060 |
US $3.06 |
||
|
21681
|
21681
21682-21060
Shim(For High Speed Shaft)
[04.1969 - 08.1988] 2K,3KH..KP3# T=0.2 |
21682-21060 |
— | ||
|
21699
|
21699
21699-21061
Boot(For Pump Plunger)
[04.1969 - 09.1980] 2K,3KH..KP3# |
21699-21061 |
— | ||
| replacement | |||||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[04.1969 - 09.1980] 2K,3KH..KP3# |
21699-28150 |
US $14.50 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[09.1980 - 08.1988] 2K,3KH..KP3# |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[04.1969 - 08.1988] 2K,3KH..KP3# |
21722-22010 |
US $3.89 |
||
|
21726
|
21726
21864-24230 Spring, Throttle Adjusting[04.1973 - 08.1988] 2K,3KH..KP3# |
21864-24230 |
US $10.13 |
||
|
21734
|
21734
21734-24031 Spring, Power PistonPOWER PISTON [07.1977 - 08.1981] 3KH..KP37 |
21734-24031 |
US $5.97 |
||
|
21738
|
21738
21738-24030
Spring, Choke Valve Relief
[07.1977 - 08.1981] 3KH..KP37 |
21738-24030 |
— | ||
|
21751
|
21751
21751-24032
Union, Nipple
[01.1972 - 05.1978] 2K,3KH..KP3# |
21751-24032 |
— | ||
| replacement | |||||
|
21751
|
21751
21751-24034 Union, Nipple[01.1972 - 05.1978] 2K,3KH..KP3# |
21751-24034 |
US $15.29 |
||
|
21751
|
21751
21751-24033 Union, NippleNIPPLE [05.1978 - 10.1978] 2K,3KH..KP3# |
21751-24033 |
US $14.85 |
||
| replacement | |||||
|
21751
|
21751
21751-24034 Union, Nipple[05.1978 - 10.1978] 2K,3KH..KP3# |
21751-24034 |
US $15.29 |
||
|
21751
|
21751
21751-24034 Union, Nipple[10.1978 - 08.1988] 2K,3KH..KP3# |
21751-24034 |
US $15.29 |
||
|
21763
|
21763
21763-29270 Pin, Float LeverFLOAT LEVER [04.1969 - 08.1988] 2K,3KH..KP3# |
21763-29270 |
US $3.35 |
||
| replacement | |||||
|
21763
|
21763
21763-61330 Pin, Float Lever[04.1969 - 08.1988] 2K,3KH..KP3# |
21763-61330 |
US $3.93 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[04.1973 - 08.1988] 2K,3KH..KP3# |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[04.1973 - 08.1988] 2K,3KH..KP3# |
21781-16510 |
— | ||
|
21795
|
21795
21795-30010 Ring, Retainer, No.2(For High Speed Shaft)[04.1969 - 08.1988] 2K,3KH..KP3# |
21795-30010 |
US $2.48 |
||
|
21823
|
21823
21822-10011 Screw, 1St Throttle Valve SetCHOKE, VALVE SET [02.1970 - 08.1988] 2K,3KH..KP3# |
21822-10011 |
US $3.49 |
||
|
21829
|
21829
21823-60011
Screw, High Speed Valve Set
[02.1970 - 08.1988] 2K,3KH..KP3# |
21823-60011 |
— | ||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[04.1969 - 08.1988] 2K,3KH..KP3# |
21842-33010 |
— | ||
|
21934F
|
21934F
21617-10010
Gasket
[04.1973 - 05.1984] 2K,3KH..KP3# |
21617-10010 |
— | ||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2188544010
|
2188544010
21885-44010 Washer(For Diaphragm Cap Set) |
21885-44010 |
US $3.67 |
||
|
9321914010
|
9321914010
93219-14010 New Genuine Part |
93219-14010 |
US $1.25 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
