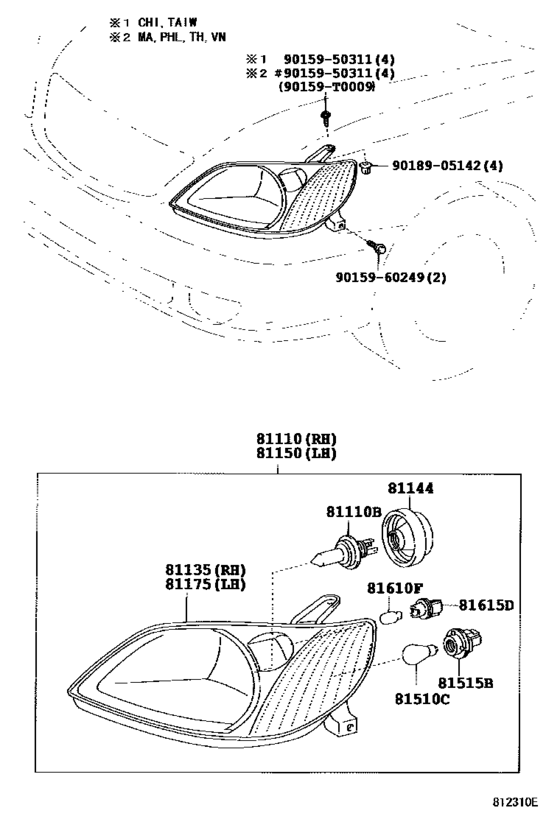

Headlamp ([10.2002 - 11.2005] (0210-0510)PHL,TAIW,TH ; (0210-0511)AXP4# ; (030 5-0512)MA ; (0307-0603)VN) Diagram Toyota VIOS
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- AXP42
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 11.2005
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-0D040
Headlamp Assy, Rh
[10.2002 - 07.2003] AXP4# |
81110-0D040 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-0D042
Headlamp Assy, Rh
[10.2002 - 07.2003] AXP4# |
81110-0D042 |
— | ||
|
81110
|
81110
81110-0D041
Headlamp Assy, Rh
[07.2003 - 06.2004] AXP4# |
81110-0D041 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-0D042
Headlamp Assy, Rh
[07.2003 - 06.2004] AXP4# |
81110-0D042 |
— | ||
|
81110
|
81110
81110-0D042
Headlamp Assy, Rh
[07.2004 - 11.2005] AXP4# |
81110-0D042 |
— | ||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [10.2002 - 11.2005] AXP4# 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81135
|
81135
81130-0D040
Unit Assy, Headlamp, Rh
[10.2002 - 07.2003] AXP4# |
81130-0D040 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-0D041
Unit Assy, Headlamp, Rh
[10.2002 - 07.2003] AXP4# |
81130-0D041 |
— | ||
|
81135
|
81135
81130-0D041
Unit Assy, Headlamp, Rh
[07.2003 - 11.2005] AXP4# |
81130-0D041 |
— | ||
|
81144
|
81144
90069-81036
Cover, Headlamp Back, No.1
[10.2002 - 11.2005] AXP4# |
90069-81036 |
— | ||
| replacement | |||||
|
81144
|
81144
90075-65002 Cover, Headlamp Back, No.1[10.2002 - 11.2005] AXP4# |
90075-65002 |
from US $6.24 |
||
|
81150
|
81150
81150-0D040
Headlamp Assy, Lh
[10.2002 - 07.2003] AXP4# |
81150-0D040 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-0D042
Headlamp Assy, Lh
[10.2002 - 07.2003] AXP4# |
81150-0D042 |
— | ||
|
81150
|
81150
81150-0D041
Headlamp Assy, Lh
[07.2003 - 06.2004] AXP4# |
81150-0D041 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-0D042
Headlamp Assy, Lh
[07.2003 - 06.2004] AXP4# |
81150-0D042 |
— | ||
|
81150
|
81150
81150-0D042
Headlamp Assy, Lh
[07.2004 - 11.2005] AXP4# |
81150-0D042 |
— | ||
|
81175
|
81175
81170-0D040
Unit Assy, Headlamp, Lh
[10.2002 - 07.2003] AXP4# |
81170-0D040 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-0D041
Unit Assy, Headlamp, Lh
[10.2002 - 07.2003] AXP4# |
81170-0D041 |
— | ||
|
81175
|
81175
81170-0D041
Unit Assy, Headlamp, Lh
[07.2003 - 11.2005] AXP4# |
81170-0D041 |
— | ||
|
81510C
|
81510C
90981-15009 Bulb(For Headlamp, No.2)[10.2002 - 11.2005] AXP4# 12V 21W,AMBER |
90981-15009 |
from US $5.05 |
||
|
81515B
|
81515B
90069-81035
Socket, Front Turn Signal Lamp
[10.2002 - 11.2005] AXP4# |
90069-81035 |
— | ||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[10.2002 - 11.2005] AXP4# 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[10.2002 - 11.2005] AXP4# 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90069-81034
Socket, Front Turn Signal Lamp
[10.2002 - 11.2005] AXP4# |
90069-81034 |
— | ||
|
90159T0009
|
90159T0009
90159-T0009 SCREWWWASHER TAP |
90159-T0009 |
US $0.20 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015960249
|
9015960249
90159-60249 SCREW WWASHER TAPP |
90159-60249 |
from US $1.75 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
