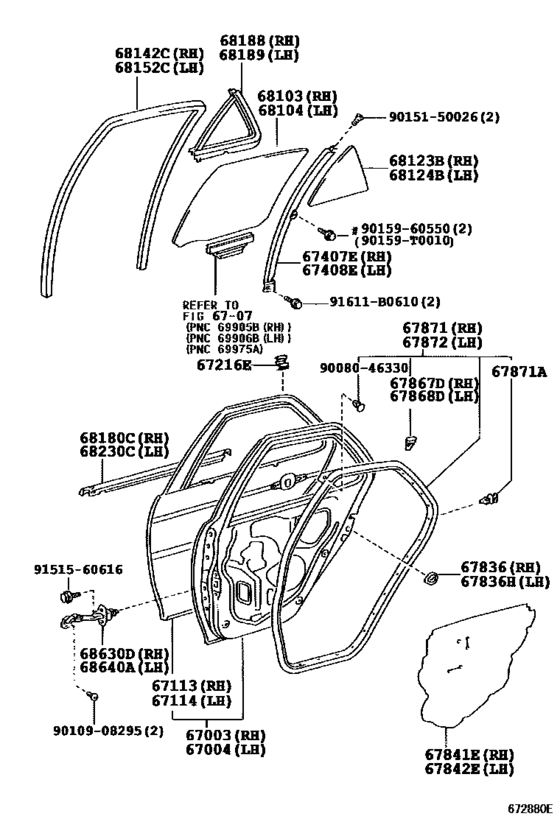

Rear Door Panel & Glass ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- AXP42
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 11.2005
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-0D030
Panel Sub-Assy, Rear Door, Rh
[10.2002 - 11.2005] AXP4# W(POWER WINDOW) |
67003-0D030 |
— | ||
|
67004
|
67004
67004-0D030
Panel Sub-Assy, Rear Door, Lh
[10.2002 - 11.2005] AXP4# W(POWER WINDOW) |
67004-0D030 |
— | ||
|
67113
|
67113
67113-0D020
Panel, Rear Door, Outer Rh
[10.2002 - 11.2005] AXP4# |
67113-0D020 |
— | ||
|
67114
|
67114
67114-0D020
Panel, Rear Door, Outer Lh
[10.2002 - 11.2005] AXP4# |
67114-0D020 |
— | ||
|
67216E
|
67216E
68147-52040 Stopper, Rear Door Glass, Upper No.2REAR DOOR GLASS, UPPER NO.2 [05.2003 - 11.2005] AXP4# |
68147-52040 |
US $3.49 |
||
|
67407E
|
67407E
67407-0D010
Bar Sub-Assy, Rear Door Window Division, Rh
[10.2002 - 11.2005] AXP4# |
67407-0D010 |
— | ||
|
67408E
|
67408E
67408-0D010
Bar Sub-Assy, Rear Door Window Division, Lh
[10.2002 - 11.2005] AXP4# |
67408-0D010 |
— | ||
|
67836
|
67836
67836-12040 Cover, Rear Door Lock Child Protection, Rh[10.2002 - 11.2005] AXP4# |
67836-12040 |
from US $3.76 |
||
|
67836H
|
67836H
67836-12040 Cover, Rear Door Lock Child Protection, Rh[10.2002 - 11.2005] AXP4# |
67836-12040 |
from US $3.76 |
||
|
67841E
|
67841E
67841-0D020
Cover, Rear Door Service Hole, Rh
[10.2002 - 11.2005] AXP4# |
67841-0D020 |
— | ||
|
67842E
|
67842E
67841-0D020
Cover, Rear Door Service Hole, Rh
[10.2002 - 11.2005] AXP4# |
67841-0D020 |
— | ||
|
67867D
|
67867D
67867-0D050
Retainer, Front Door Lower Protector, Rh
[10.2002 - 11.2005] AXP4# |
67867-0D050 |
— | ||
|
67868D
|
67868D
67867-0D060
Retainer, Rear Door Weatherstrip, Rh
[10.2002 - 11.2005] AXP4# |
67867-0D060 |
— | ||
|
67871
|
67871
67871-0D020
Weatherstrip, Rear Door, Rh
[10.2002 - 11.2005] AXP4# |
67871-0D020 |
— | ||
|
67871A
|
67871A
67867-0D020
Retainer(For Rear Door Weatherstrip)
[10.2002 - 11.2005] AXP4# LH |
67867-0D020 |
— | ||
|
67871A
|
67871A
67868-0D020
Retainer(For Rear Door Weatherstrip)
[10.2002 - 11.2005] AXP4# RH |
67868-0D020 |
— | ||
|
67872
|
67872
67872-0D020
Weatherstrip, Rear Door, Lh
[10.2002 - 11.2005] AXP4# |
67872-0D020 |
— | ||
|
68103
|
68103
68113-0D020
Glass Sub-Assy, Rear Door, Rh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68113-0D020 |
— | ||
| replacement | |||||
|
68103
|
68103
68113-0D021
Glass Sub-Assy, Rear Door, Rh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68113-0D021 |
— | ||
|
68103
|
68103
68113-0D021
Glass Sub-Assy, Rear Door, Rh
[01.2003 - 11.2005] AXP4# *TEM,T=3.1,GREEN |
68113-0D021 |
— | ||
|
68104
|
68104
68114-0D020
Glass Sub-Assy, Rear Door, Lh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68114-0D020 |
— | ||
| replacement | |||||
|
68104
|
68104
68114-0D021
Glass Sub-Assy, Rear Door, Lh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68114-0D021 |
— | ||
|
68104
|
68104
68114-0D021
Glass Sub-Assy, Rear Door, Lh
[01.2003 - 11.2005] AXP4# *TEM,T=3.1,GREEN |
68114-0D021 |
— | ||
|
68123B
|
68123B
68123-0D020
Glass, Rear Door Quarter Window, Rh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68123-0D020 |
— | ||
| replacement | |||||
|
68123B
|
68123B
68123-0D021
Glass, Rear Door Quarter Window, Rh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68123-0D021 |
— | ||
|
68123B
|
68123B
68123-0D021
Glass, Rear Door Quarter Window, Rh
[01.2003 - 11.2005] AXP4# *TEM,T=3.1,GREEN |
68123-0D021 |
— | ||
|
68124B
|
68124B
68124-0D020
Glass, Rear Door Quarter Window, Lh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68124-0D020 |
— | ||
| replacement | |||||
|
68124B
|
68124B
68124-0D021
Glass, Rear Door Quarter Window, Lh
[10.2002 - 01.2003] AXP4# *TEM,T=3.1,GREEN |
68124-0D021 |
— | ||
|
68124B
|
68124B
68124-0D021
Glass, Rear Door Quarter Window, Lh
[01.2003 - 11.2005] AXP4# *TEM,T=3.1,GREEN |
68124-0D021 |
— | ||
|
68142C
|
68142C
68142-0D020
Run, Rear Door Glass, Rh
[10.2002 - 11.2005] AXP4# |
68142-0D020 |
— | ||
|
68152C
|
68152C
68152-0D020
Run, Rear Door Glass, Lh
[10.2002 - 11.2005] AXP4# |
68152-0D020 |
— | ||
|
68180C
|
68180C
68180-0D020
Weatherstrip Assy, Rear Door Glass, Outer Rh
[10.2002 - 11.2005] AXP4# |
68180-0D020 |
— | ||
|
68188
|
68188
68188-0D020
Weatherstrip, Rear Door Quarter Window, Rh
[10.2002 - 11.2005] AXP4# |
68188-0D020 |
— | ||
|
68189
|
68189
68189-0D020
Weatherstrip, Rear Door Quarter Window, Lh
[10.2002 - 11.2005] AXP4# |
68189-0D020 |
— | ||
|
68230C
|
68230C
68230-0D020
Weatherstrip Assy, Rear Door Glass, Outer Lh
[10.2002 - 11.2005] AXP4# |
68230-0D020 |
— | ||
|
68630D
|
68630D
68630-0D020
Check Assy, Rear Door, Rh
[10.2002 - 11.2005] AXP4# |
68630-0D020 |
— | ||
|
68640A
|
68640A
68640-0D020
Check Assy, Rear Door, Lh
[10.2002 - 11.2005] AXP4# |
68640-0D020 |
— | ||
|
90159T0010
|
90159T0010
90159-T0010
New Genuine Part
|
90159-T0010 |
— | ||
|
91611B0610
|
91611B0610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9008046330
|
9008046330
90080-46330
New Genuine Part
|
90080-46330 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9015150026
|
9015150026
90151-50026 SCREW CROSSRECESS |
90151-50026 |
from US $0.70 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.61 |
||
|
9151560616
|
9151560616
91515-60616 BOLT FLANGE |
91515-60616 |
US $1.25 |
||
