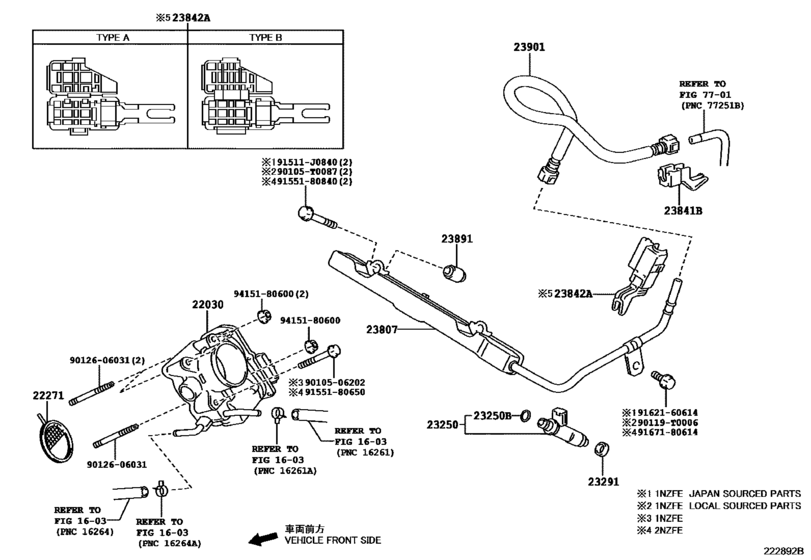

Fuel Injection System ([04.2013 - ] (1304- )1NZFE,2NZFE) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-0M010
Body Assy, Throttle W/motor
[04.2013 - 09.2016] 1NZFE..NCP150 (L) |
22030-0M010 |
— | ||
|
22030
|
22030
22030-21030 Body Assy, Throttle W/motor[04.2013 - 09.2016] 1NZFE..NCP150 (J) |
22030-21030 |
US $822.12 |
||
|
22271
|
22271
22271-21060 Gasket, Throttle Body[04.2013 - 09.2016] 1NZFE,2NZFE..NCP15# |
22271-21060 |
from US $3.80 |
||
|
23250
|
23250
23209-0M010
Injector Assy, Fuel
[04.2013 - 09.2016] 1NZFE..NCP150 (L) |
23209-0M010 |
— | ||
|
23250
|
23250
23209-21040 Injector Assy, Fuel[04.2013 - 09.2016] 1NZFE..NCP150 (J) |
23209-21040 |
US $183.53 |
||
| replacement | |||||
|
23250
|
23250
23209-21120 Injector Assy, Fuel[04.2013 - 09.2016] 1NZFE..NCP150 (J) |
23209-21120 |
from US $170.86 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[04.2013 - 09.2016] 1NZFE..NCP150 (J) |
90301-07037 |
from US $2.18 |
||
|
23250B
|
23250B
90301-T0051
Ring, O(For Fuel Injector)
[06.2015 - 09.2016] 1NZFE..NCP150 (L) |
90301-T0051 |
— | ||
|
23291
|
23291
23291-0H020 Insulator, Injector Vibration[04.2013 - 09.2016] 1NZFE..NCP150 (L) |
23291-0H020 |
US $0.96 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[04.2013 - 09.2016] 1NZFE..NCP150 (J) |
23291-41010 |
from US $2.65 |
||
|
23807
|
23807
23807-21090 Pipe Sub-Assy, Fuel Delivery[04.2013 - 09.2016] 1NZFE,2NZFE..NCP15# |
23807-21090 |
US $115.02 |
||
|
23841B
|
23841B
23841-0Y050
Clamp, Fuel Pipe, No.1(For Efi)
[04.2013 -] 1N#,2N#..NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
23841-0Y050 |
— | ||
|
23842A
|
23842A
23841-0M030
Clamp, Fuel Pipe, No.2(For Efi)
[04.2013 - 08.2016] 1NZFE,2NZFE..NCP15#..B TYPE A:REFER ILLUST. |
23841-0M030 |
— | ||
|
23842A
|
23842A
23841-37090 Clamp, Fuel Pipe, No.1(For Efi)[04.2013 - 08.2016] 1NZFE,2NZFE..NCP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B TYPE B:REFER ILLUST. |
23841-37090 |
US $14.56 |
||
|
23891
|
23891
23891-21010 Spacer, No.1(For Delivery Pipe)[04.2013 - 09.2016] 1NZFE,2NZFE..NCP15# |
23891-21010 |
US $4.30 |
||
|
23901
|
23901
23901-0M040
Tube Sub-Assy, Fuel
[04.2013 - 08.2016] 1NZFE,2NZFE..NCP15#..B |
23901-0M040 |
— | ||
|
90105T0087
|
90105T0087
90105-T0087
New Genuine Part
|
90105-T0087 |
— | ||
|
90119T0006
|
90119T0006
90119-T0006
New Genuine Part
|
90119-T0006 |
— | ||
|
91511J0840
|
91511J0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $1.44 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.84 |
||
|
9012606031
|
9012606031
90126-06031 Stud, Bolt |
90126-06031 |
US $0.70 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.80 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $2.15 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
