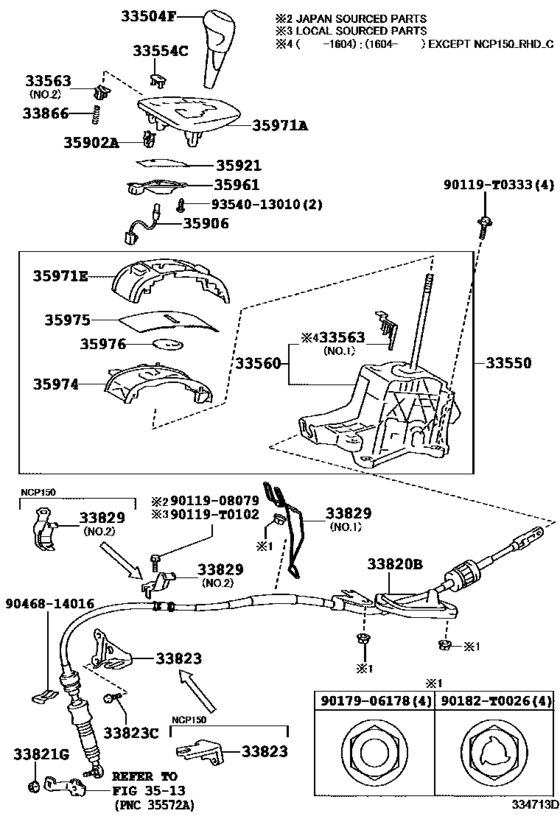

Shift Lever & Retainer ([04.2013 - ] (1304- )4FC..GCC,GEN,IDN,MA,PH,TH,VN) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0D400-C0 Knob Sub-Assy, Shift Lever[04.2013 -] NSP151..MA..G;NCP150,NSP151..RHD..V BLACK,TRIM2#; NCP151,NSP150..LHD..GEN..G;NSP151..CVT..(PH,TH,VN)..G;NCP150..4FC..(IDN,MA,PH,TH,V N)..G BLACK,TRIM0#,2# |
33504-0D400-C0 |
US $103.47 |
||
|
33550
|
33550
33550-0D460
Floor Shift Assy, Transmission
[07.2013 - 08.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN)..B |
33550-0D460 |
— | ||
|
33554C
|
33554C
33502-0D040 Cover, Shift Lock Release Button[04.2013 - 04.2017] NCP151,NSP150..(ATM,CVT)..(G,R)..B;NCP150,NSP151..(ATM,CVT)..GEN..(G,R);NCP150,NSP 151..(ATM,CVT)..(GCC,IDN,MA,PH,VN)..B |
33502-0D040 |
US $2.24 |
||
|
33560
|
33560
33560-0D180
Unit Assy, Shift Lock Control
[07.2013 - 08.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN)..B |
33560-0D180 |
— | ||
|
33563
|
33563
33563-0D080
Button, Shift Lock Release
[07.2013 - 09.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN) NO.1 |
33563-0D080 |
— | ||
|
33563
|
33563
33563-0D120
Button, Shift Lock Release
[07.2013 - 09.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN) NO.2 |
33563-0D120 |
— | ||
|
33820B
|
33820B
33820-0D500 Cable Assy, Transmission Control[04.2013 - 08.2016] NCP150..4FC..(GCC,GEN,IDN,PH,TAIW,TH,VN)..B |
33820-0D500 |
US $212.28 |
||
|
33821G
|
33821G
90179-08040 Nut, Cap(For Cylinder Head Cover)[04.2013 -] NCP15#,NSP150..ATM,CVT;NSP151..CVT..(GCC,GEN,IDN,PH,TAIW,TH,VN) |
90179-08040 |
from US $1.03 |
||
|
33823
|
33823
33823-0D010
Bracket, Transmission Control Cable, No.1
[04.2013 - 08.2016] NCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
33823-0D010 |
— | ||
|
33823C
|
33823C
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)[04.2014 - 09.2016] NCP15#..4FC (J) |
90119-08079 |
from US $0.64 |
||
|
33823C
|
33823C
90119-T0102 Bolt (For Transmission Control Cable Bracket)[04.2013 - 04.2014] NCP15#..4FC |
90119-T0102 |
US $0.27 |
||
|
33829
|
33829
33829-0D160
Support, Transmission Control Cable
[09.2014 - 09.2016] NCP15#..4FC..B NO.1 |
33829-0D160 |
— | ||
|
33829
|
33829
33829-52111 Support, Transmission Control Cable[04.2013 - 09.2016] NCP150..4FC NO.2 |
33829-52111 |
US $5.53 |
||
|
33829
|
33829
33829-52210
Support, Transmission Control Cable
[04.2013 - 09.2014] NCP15#..4FC..B NO.1 |
33829-52210 |
— | ||
|
33866
|
33866
33866-06030
Spring, Shift Lock Release
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
33866-06030 |
— | ||
|
35902A
|
35902A
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing[04.2013 -] NCP15#,NSP15#..ATM,CVT |
90467-10201 |
from US $1.07 |
||
|
35906
|
35906
35906-0D130
Wire Sub-Assy, Indicator Lamp
[07.2013 -] NCP15#,NSP15#..LHD..(ATM,CVT)..(GCC,GEN,PH,VN)..B |
35906-0D130 |
— | ||
|
35921
|
35921
35921-0D070
Plate, Control Position Indicator
[07.2013 - 09.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN) |
35921-0D070 |
— | ||
|
35961
|
35961
35961-0D030
Housing, Position Indicator Lamp
[07.2013 - 09.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN) |
35961-0D030 |
— | ||
|
35971A
|
35971A
35971-0D350
Housing, Position Indicator, Upper
[07.2013 - 08.2016] NCP15#..LHD..4FC..(GCC,GEN,PH,VN)..(G,R)..B |
35971-0D350 |
— | ||
|
35971E
|
35971E
35971-0D260
Housing, Position Indicator
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35971-0D260 |
— | ||
|
35974
|
35974
35974-0D020
Housing, Position Indicator, Lower
[07.2013 -] NCP15#,NSP15#..LHD..(ATM,CVT)..(GCC,GEN,PH,VN)..B |
35974-0D020 |
— | ||
|
35975
|
35975
35975-0D070
Cover, Slide (For Position Indicator)
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35975-0D070 |
— | ||
|
35976
|
35976
35976-0D100
Cover, Slide, No.2 (For Position Indicator)
[04.2013 -] NCP15#,NSP15#..(ATM,CVT)..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
35976-0D100 |
— | ||
|
90119T0102
|
90119T0102
90119-T0102 Bolt (For Transmission Control Cable Bracket) |
90119-T0102 |
US $0.27 |
||
|
90119T0333
|
90119T0333
90119-T0333
New Genuine Part
|
90119-T0333 |
— | ||
|
90182T0026
|
90182T0026
90182-T0026
New Genuine Part
|
90182-T0026 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9354013010
|
9354013010
93540-13010 SCREW |
93540-13010 |
from US $2.20 |
