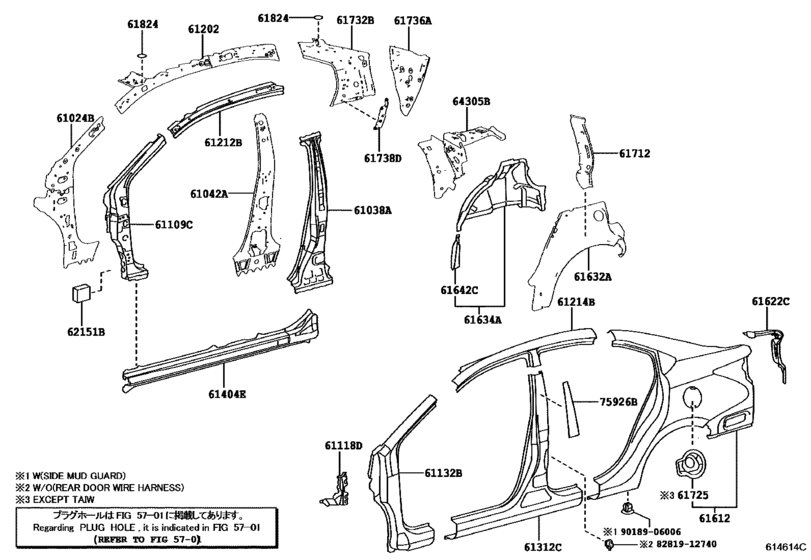

Side Member ([04.2013 - ] LH SIDE (1304- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2014 - 2016
- Sales region
- General
- Frame
- NCP150
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- VN
- CATEGORY
- B
- From
- 03.2014
- To
- 08.2016
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61024B
|
61024B
61024-0D170
Pillar Sub-Assy, Front Body, Inner Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TH,VN)..B |
61024-0D170 |
— | ||
|
61038A
|
61038A
61038-0D909
Reinforcement Sub-Assy, Center Body Pillar, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61038-0D909 |
— | ||
|
61042A
|
61042A
61042-0D100
Pillar Sub-Assy, No.1 Inner, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TH,VN)..B |
61042-0D100 |
— | ||
|
61109C
|
61109C
61109-0D120
Reinforcement Sub-Assy, Front Pillar, Lower Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TH,VN)..B |
61109-0D120 |
— | ||
|
61118D
|
61118D
61118-0D020
Gusset, Side Panel To Cowl, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61118-0D020 |
— | ||
|
61132B
|
61132B
61132-0D170
Pillar, Front Body, Outer Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61132-0D170 |
— | ||
|
61202
|
61202
61202-0D110
Rail Sub-Assy, Roof Side, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TH,VN)..B |
61202-0D110 |
— | ||
|
61212B
|
61212B
61212-0D140
Rail, Roof Side, Outer Rear Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61212-0D140 |
— | ||
|
61214B
|
61214B
61214-0D140 Rail, Roof Side, Outer No.2 Lh[04.2013 -] NCP15#,NSP150,151..B,C |
61214-0D140 |
US $108.95 |
||
|
61312C
|
61312C
61312-0D070
Panel, Rear Body Front Outside, Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61312-0D070 |
— | ||
|
61404E
|
61404E
61404-0D180
Reinforce Sub-Assy, Rocker, Outer Lh
[04.2013 - 01.2017] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
61404-0D180 |
— | ||
|
61612
|
61612
61602-0D240 Panel, Quarter, Lh[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61602-0D240 |
US $502.40 |
||
|
61622C
|
61622C
61064-0D030
Trough, Luggage Compartment Opening, Lh
[04.2013 - 07.2016] NCP15#..VN;NSP15#..GCC,GEN,TH |
61064-0D030 |
— | ||
|
61622C
|
61622C
61064-0D150
Trough, Luggage Compartment Opening, Lh
[07.2016 -] NCP15#,NSP15#..(GCC,GEN,TH,VN)..B; NSP151..TH..B SPECIAL EDITION |
61064-0D150 |
— | ||
|
61632A
|
61632A
61632-K0010
Panel, Quarter Wheel House, Outer Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61632-K0010 |
— | ||
|
61634A
|
61634A
61606-0D080
Panel, Quarter Wheel House, Inner Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TAIW,TH,VN)..B |
61606-0D080 |
— | ||
|
61642C
|
61642C
61642-0D070
Gusset, Quarter Wheel House, Front Lh
[04.2013 -] NCP15#,NSP15#..B |
61642-0D070 |
— | ||
|
61712
|
61712
61712-K0010
Panel, Roof Side, Outer Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61712-K0010 |
— | ||
|
61725
|
61725
61725-0D090
Box, Fuel Inlet
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61725-0D090 |
— | ||
|
61732B
|
61732B
61732-K0010
Panel, Roof Side, Inner Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61732-K0010 |
— | ||
|
61736A
|
61736A
61736-K0010
Panel, Roof Side, Inner Rear Lh
[04.2013 -] NCP15#,NSP150,151..B,C |
61736-K0010 |
— | ||
|
61738D
|
61738D
61738-0D040
Reinforcement, Roof Side, Inner Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
61738-0D040 |
— | ||
|
61824
|
61824
61824-0D020
Plate, Noise Control, No.1
[04.2013 -] NCP150,NSP151..TAIW..D;NCP15#,NSP15#..(G,R,V)..B |
61824-0D020 |
— | ||
|
62151B
|
62151B
62151-0D110
Pad, Cowl Side Silencer
[04.2013 -] NCP15#,NSP15#..B |
62151-0D110 |
— | ||
|
64305B
|
64305B
64305-0D100
Reinforce Sub-Assy, Package Tray Bracket, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,TH,VN)..B |
64305-0D100 |
— | ||
|
75926B
|
75926B
75926-0D060
Tape, Black Out, No.3 Lh
[04.2013 -] NSP150..GEN..D;NCP15#..(GEN,TH,VN)..D..B;NSP151..(GCC,GEN,TH,VN)..B;NCP15#,NSP150. .(GCC,GEN,IDN,TH,VN)..(G,R,V)..B |
75926-0D060 |
— | ||
|
8281912740
|
8281912740
82819-12740
Grommet, Wiring Harness
|
82819-12740 |
— | ||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
