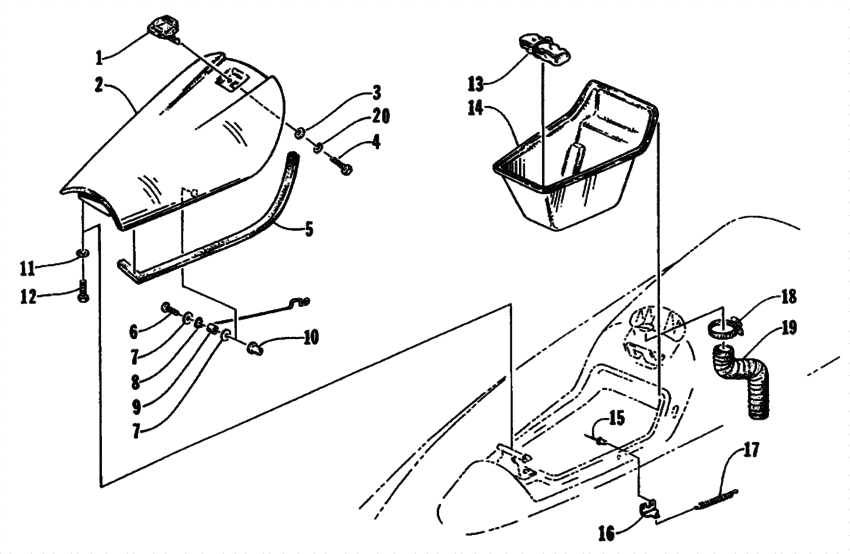

Hatch cover and storage tray Diagram Arctic Cat MONTEGO
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0673-177 LatchHatch cover |
0673-177 |
US $52.97 |
||
|
2
|
2
0673-452 CoverHatch |
0673-452 |
US $386.35 |
||
|
3
|
3
0624-004 Washer |
0624-004 |
US $2.50 |
||
|
4
|
4
0624-092 ScrewCap |
0624-092 |
US $10.80 |
||
|
5
|
5
0773-440 Seal25 ft; storage tray |
0773-440 |
US $42.99 |
||
| replacement | |||||
|
5
|
5
0773-449 SealHatch-10' |
0773-449 |
US $30.91 |
||
|
6
|
6
0624-112 ScrewCap |
0624-112 |
US $4 |
||
|
7
|
7
0624-182 Washer |
0624-182 |
US $2.95 |
||
|
8
|
8
0773-220 RodHood prop |
0773-220 |
US $13.25 |
||
|
9
|
9
0673-399 SpacerSpring rod |
0673-399 |
US $2.94 |
||
|
10
|
10
0624-083
Nut
|
0624-083 |
— | ||
|
11
|
11
0624-036
Washer
|
0624-036 |
— | ||
|
12
|
12
0624-053
Screw
|
0624-053 |
— | ||
|
13
|
13
0678-105
Kit
|
0678-105 |
— | ||
|
14
|
14
0673-250 TrayStorage |
0673-250 |
US $70.97 |
||
|
15
|
15
0624-072 Rivet |
0624-072 |
US $6.40 |
||
|
16
|
16
0673-397 BracketSpring rod |
0673-397 |
US $11.01 |
||
|
17
|
17
0673-400 SpringHood prop |
0673-400 |
US $6.75 |
||
|
18
|
18
0624-207
Clamp
|
0624-207 |
— | ||
|
19
|
19
0610-211 HoseAir intake |
0610-211 |
US $27.34 |
||
|
20
|
20
0624-200 WasherLock |
0624-200 |
US $4.56 |
||
