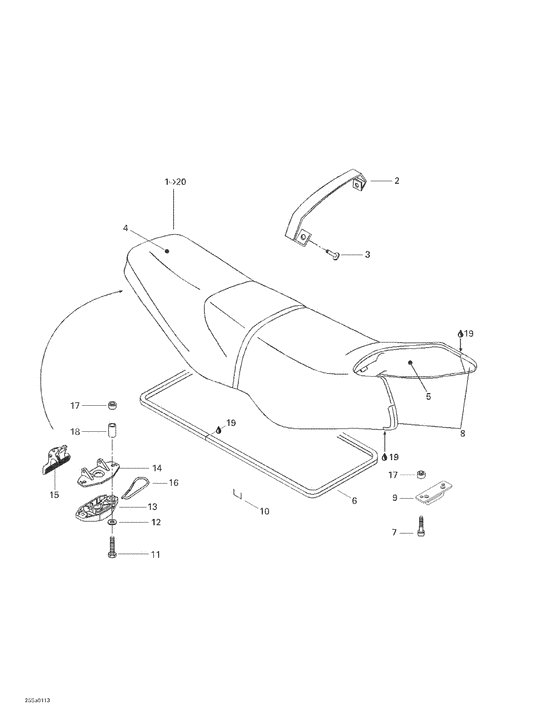

09- seat and engine cover Diagram Bombardier GS/GSI
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269000558
Coin siege ga. *corner-seat lh
|
269000558 |
— | ||
|
1
|
1
269000531
Siege ass. *seat-assy.
Includes 1 - 19.; |
269000531 |
— | ||
|
2
|
2
269000557
Sangle de siege*strap-seat
|
269000557 |
— | ||
|
3
|
3
293150067 Rivet tri-fast *rivet-tri-fast |
293150067 |
US $38.30 |
||
|
4
|
4
269000556
Housse & mousse*cover-& foam
|
269000556 |
— | ||
|
6
|
6
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
6
|
6
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
7
|
7
205561660 Screw-socket din.912a2 s.grip |
205561660 |
US $21.60 |
||
|
8
|
8
269000559
Coin siege dr. *corner-seat rh
|
269000559 |
— | ||
|
9
|
9
291001357
Plaque base *hook-base
|
291001357 |
— | ||
|
10
|
10
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
|
11
|
11
207363560 Screw-hex.cap din.933a2 s.grip |
207363560 |
US $24.30 |
||
|
12
|
12
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
13
|
13
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
13
|
13
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
14
|
14
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
14
|
14
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
15
|
15
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
15
|
15
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
16
|
16
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
17
|
17
293100003 Ecrou a souder *nut-weld. |
293100003 |
US $58.56 |
||
|
18
|
18
291000532
Entretoise *spacer
|
291000532 |
— | ||
|
19
|
19
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
