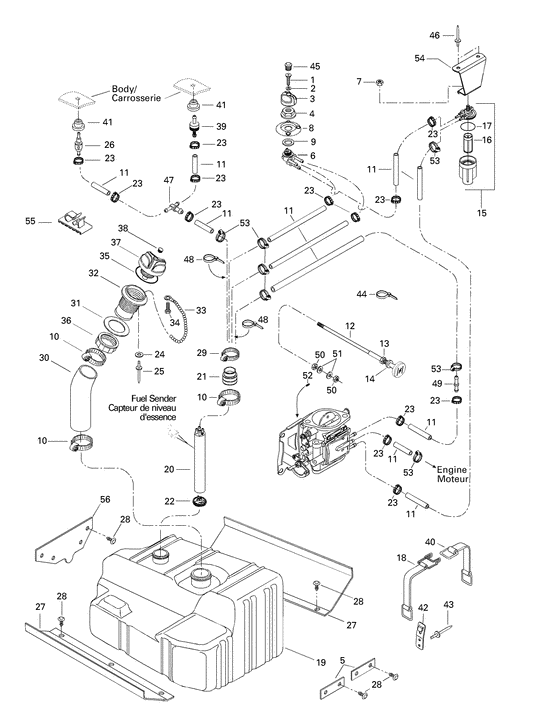

02- fuel system Diagram Bombardier GS/GSI
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
212200004
Screw-pan hd.ph.din.7985a-a2
|
212200004 |
— | ||
| replacement | |||||
|
1
|
1
208640860 Screw-pan hd.ph.din.7985a-a2 |
208640860 |
US $5.35 |
||
|
2
|
2
213200010
Washer-flat din.433a2
|
213200010 |
— | ||
| replacement | |||||
|
2
|
2
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
3
|
3
275500212
Bouton valve es*knob-valv.fuel
|
275500212 |
— | ||
|
4
|
4
212100009 Nut-hex.plastic |
212100009 |
US $25.20 |
||
|
5
|
5
292000343
Tampon caout. *pad-rubber
|
292000343 |
— | ||
|
6
|
6
275500098 Soupape essence*valve-fuel |
275500098 |
US $46.78 |
||
|
7
|
7
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
7
|
7
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
8
|
8
275500360
Plateau soupape*plate-val.fuel
|
275500360 |
— | ||
| replacement | |||||
|
8
|
8
275500285
Plateau soupape*plate-val.fuel
|
275500285 |
— | ||
|
9
|
9
293250004 Joint etanche *gasket |
293250004 |
US $42.25 |
||
|
10
|
10
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
11
|
11
275500139
Boyau 6mm. *hose-6mm.
|
275500139 |
— | ||
|
12
|
12
270000262
Cable etrang. *cable-choke
Includes 12 - 14.; |
270000262 |
— | ||
|
13
|
13
211100030
Nut-hexagonal hi-lex
|
211100030 |
— | ||
|
14
|
14
291000921
New Genuine Part
|
291000921 |
— | ||
|
15
|
15
275500088 Filtre ess.ass.*filter-fuel asIncludes 15 - 17.; |
275500088 |
US $31.47 |
||
|
16
|
16
275500089 Filtre essence *filter-fuel |
275500089 |
US $68 |
||
|
17
|
17
275500090 Joint torique *o-ring |
275500090 |
US $49.80 |
||
|
18
|
18
293850025
Sangle res.ess.*strap-fuel tank
|
293850025 |
— | ||
| replacement | |||||
|
18
|
18
293850037 Sangle res.ess.*strap-fuel tank |
293850037 |
US $17.29 |
||
|
19
|
19
275500291
Reservoir ess. *tank-fuel
|
275500291 |
— | ||
|
20
|
20
275500374
Chicane triage *baffle-pick up
Includes 20 - 22.; |
275500374 |
— | ||
| replacement | |||||
|
20
|
20
275500469 Chicane triage *baffle-pick upIncludes 20 - 22.; |
275500469 |
US $258.01 |
||
|
21
|
21
275500111
Adap.tube ess. *adap-tube fuel
|
275500111 |
— | ||
|
22
|
22
275500249
Filtre essence *filter-fuel
|
275500249 |
— | ||
| replacement | |||||
|
22
|
22
275500397 Filtre essence *filter-fuel |
275500397 |
US $29.38 |
||
|
23
|
23
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
|
24
|
24
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
24
|
24
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
25
|
25
390407900 Rivet-pop 1/8 *rivet-pop 1/8 |
390407900 |
US $96 |
||
|
26
|
26
275500104
Soupape retenue*valve-check
|
275500104 |
— | ||
| replacement | |||||
|
26
|
26
275500479
Soupape retenue*valve-check
|
275500479 |
— | ||
|
27
|
27
293830040
Tampon caout. *pad-rubber
|
293830040 |
— | ||
|
28
|
28
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
29
|
29
293650035 Bride serrage *clamp-tridon |
293650035 |
US $47.75 |
||
|
30
|
30
275500295
Boyau remplis. *hose-fil.neck
|
275500295 |
— | ||
|
31
|
31
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
32
|
32
275500231 Goulot remplis.*neck-filler |
275500231 |
US $12.68 |
||
|
33
|
33
275500168
Chaine bouchon *chain-cap fuel
|
275500168 |
— | ||
|
34
|
34
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
34
|
34
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
35
|
35
293250017
Joint etanche *gasket
|
293250017 |
— | ||
|
36
|
36
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
37
|
37
275500215
Bouchon ess.sub*cap-fuel sub.
Includes 37 - 38.; |
275500215 |
— | ||
| replacement | |||||
|
37
|
37
275500430 Bouchon ess.sub*cap-fuel sub.Includes 37 - 38.; |
275500430 |
US $30.19 |
||
|
38
|
38
293000018
Capuchon press.*cap-snap yello
|
293000018 |
— | ||
| replacement | |||||
|
38
|
38
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
39
|
39
275500087
Soupape retenue*valve-check
|
275500087 |
— | ||
| replacement | |||||
|
39
|
39
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
40
|
40
293850026
Sangle res.ess.*strap-fuel tank
|
293850026 |
— | ||
| replacement | |||||
|
40
|
40
293850082
Sangle ass`e *strap ass`y
|
293850082 |
— | ||
|
41
|
41
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
42
|
42
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
43
|
43
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
44
|
44
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
45
|
45
275500214
Bouchon parecho*plug-bumper
|
275500214 |
— | ||
| replacement | |||||
|
45
|
45
291000339 Bouchon parecho*plug-bumper |
291000339 |
from US $4.90 |
||
|
46
|
46
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
47
|
47
293710024 Raccord en t *fitting-t |
293710024 |
US $14.72 |
||
|
48
|
48
294000606
Tie rap 180mm *tie-rap 180mm
|
294000606 |
— | ||
| replacement | |||||
|
48
|
48
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
49
|
49
293710039 Raccord droit *fitting-straig |
293710039 |
US $9.89 |
||
|
50
|
50
212100003
Nut-jam hexagonal din.439b-a2
|
212100003 |
— | ||
| replacement | |||||
|
50
|
50
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
51
|
51
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
51
|
51
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
52
|
52
210100014
Screw-set socket din.916a2
|
210100014 |
— | ||
| replacement | |||||
|
52
|
52
206540660
Screw-set socket din.916a2
|
206540660 |
— | ||
|
53
|
53
293650038
Bride serrage *clamp-tridon
|
293650038 |
— | ||
|
54
|
54
275500287 Support filtre *support-filter |
275500287 |
US $22.02 |
||
|
55
|
55
293750005 Attache collier*tie-clamp |
293750005 |
US $38.85 |
||
|
56
|
56
293830053
Tampon caoutchouc
|
293830053 |
— | ||
