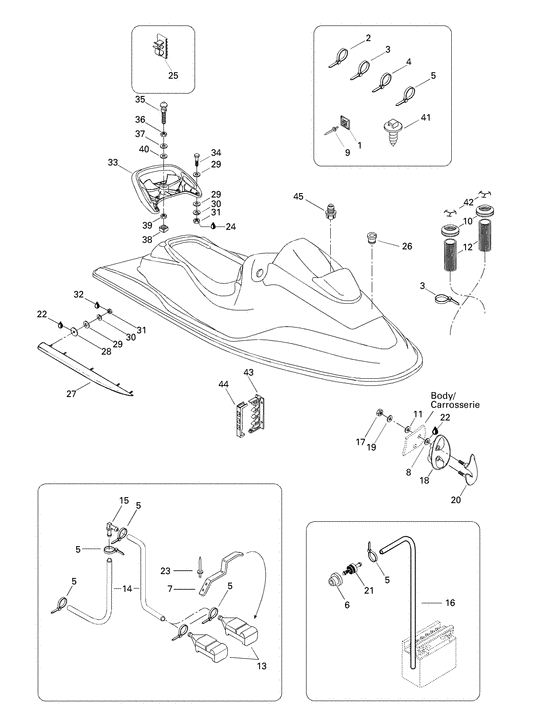

09- body Diagram Bombardier GS/GSI
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
292000319
Stabilisat.dr. *sponson-rh.
GSI 5622.; |
292000319 |
— | ||
| replacement | |||||
|
|
292000494
Stabilisat.dr. *sponson-rh.
GSI 5622.; |
292000494 |
— | ||
|
|
292000385
Stabilisat.ga. *sponson-lh.
GS 5621.; |
292000385 |
— | ||
| replacement | |||||
|
|
292000495
Stabilisat.ga. *sponson-lh.
GS 5621.; |
292000495 |
— | ||
|
|
292000321
Stabilisat.ga. *sponson-lh.
GSI 5622.; |
292000321 |
— | ||
| replacement | |||||
|
|
292000495
Stabilisat.ga. *sponson-lh.
GSI 5622.; |
292000495 |
— | ||
|
1
|
1
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
2
|
2
294000606
Tie rap 180mm *tie-rap 180mm
|
294000606 |
— | ||
| replacement | |||||
|
2
|
2
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
3
|
3
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
4
|
4
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
5
|
5
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
6
|
6
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
7
|
7
292000398 Pince ress.ga. *clip-spring lh |
292000398 |
US $13.21 |
||
|
8
|
8
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
8
|
8
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
9
|
9
293150033 Rivet-pop 1/8 *rivet-pop 1/8 |
293150033 |
US $3.90 |
||
|
10
|
10
293720036
Passe-fils *grommet
|
293720036 |
— | ||
|
11
|
11
293830037 Rondelle caout.*washer-rubber |
293830037 |
US $20.65 |
||
|
12
|
12
291000870
Boyau ventilat.*hose-vent
|
291000870 |
— | ||
|
13
|
13
292000079
Tamis declenche*screen-bailer
|
292000079 |
— | ||
| replacement | |||||
|
13
|
13
292000688
Tamis declenche*screen-bailer
|
292000688 |
— | ||
|
14
|
14
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
15
|
15
293710057 Raccord coude90*fitting-elbow |
293710057 |
US $7.09 |
||
|
16
|
16
275500018
Boyau 5.2mm *hose-5.2mm
|
275500018 |
— | ||
|
17
|
17
212000002
Nut-stop elastic din.985a2
|
212000002 |
— | ||
| replacement | |||||
|
17
|
17
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
18
|
18
292000258
Coquille blanch*shell-white
|
292000258 |
— | ||
| replacement | |||||
|
18
|
18
292000511
Coquille blanch*shell-white
|
292000511 |
— | ||
|
19
|
19
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
19
|
19
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
20
|
20
292000257
Amarre (blanche)
|
292000257 |
— | ||
|
21
|
21
275500167
Soupape retenue*valve-check
|
275500167 |
— | ||
| replacement | |||||
|
21
|
21
275500499 Soupape retenue*valve-check |
275500499 |
US $17.82 |
||
|
22
|
22
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
22
|
22
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
23
|
23
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
24
|
24
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
25
|
25
293750005 Attache collier*tie-clamp |
293750005 |
US $38.85 |
||
|
26
|
26
293720017 Passe-fils *grommetGS 5621.; |
293720017 |
US $10.47 |
||
|
27
|
27
292000384
Stabilisat.dr. *sponson-rh.
GS 5621.; |
292000384 |
— | ||
| replacement | |||||
|
27
|
27
292000494
Stabilisat.dr. *sponson-rh.
GS 5621.; |
292000494 |
— | ||
|
28
|
28
293250026 Joint etanche *gasket |
293250026 |
US $10.05 |
||
|
29
|
29
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
29
|
29
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
30
|
30
217361500
Washer-lock helical din.127b-a2
|
217361500 |
— | ||
| replacement | |||||
|
30
|
30
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
31
|
31
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
31
|
31
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
32
|
32
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
295500367
New Genuine Part
(Incl. It 29, 30, 31, 34); |
295500367 |
— | ||
|
34
|
34
215664060
Screw-hex.cap din.931a2
|
215664060 |
— | ||
| replacement | |||||
|
34
|
34
207064060 Screw-hex.cap din.931a2 |
207064060 |
US $21.80 |
||
|
35
|
35
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
36
|
36
218300600
Nut-jam hexagonal din.439b-a2
|
218300600 |
— | ||
| replacement | |||||
|
36
|
36
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
37
|
37
217002600
Washer-flat din.9021b-a2
|
217002600 |
— | ||
| replacement | |||||
|
37
|
37
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
38
|
38
271000598 Logement ecrou *housing-nutIncludes 38 - 39.; |
271000598 |
US $14.67 |
||
|
39
|
39
212000003
Nut-stop elastic din.985a2
|
212000003 |
— | ||
| replacement | |||||
|
39
|
39
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
40
|
40
291000628 Rondelle caout.*washer-rubber |
291000628 |
US $11.15 |
||
|
41
|
41
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
42
|
42
291001098
Restricteur *restrictor
|
291001098 |
— | ||
|
43
|
43
293750013
Ancrage attache*mount-tie
|
293750013 |
— | ||
|
44
|
44
293750012
Couv.attache *top-mount tie
|
293750012 |
— | ||
|
45
|
45
293720042 Passe-fils *grommetGSI 5622.; |
293720042 |
US $66.25 |
||
