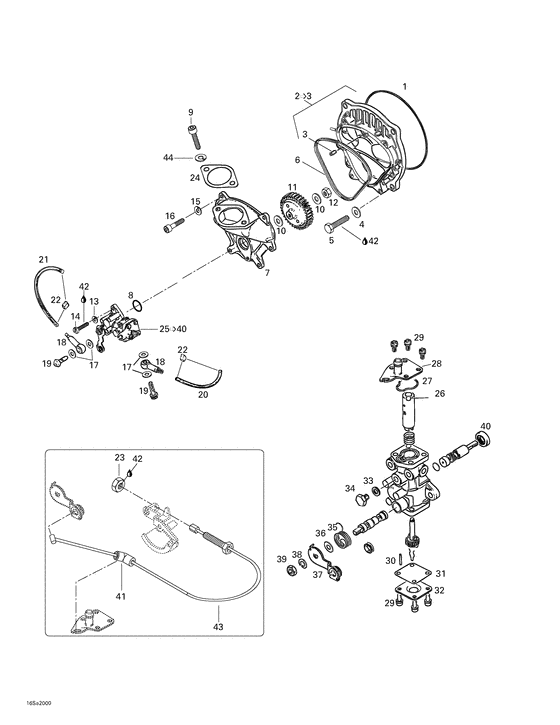

02- oil injection system, oil pump, rotary valve Diagram Bombardier GS/GSI
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293300023 Joint torique *o-ring |
293300023 |
US $16.29 |
||
|
2
|
2
290811252
Couvercle rotar*cover-rotary
Includes 2 - 3.; |
290811252 |
— | ||
| replacement | |||||
|
2
|
2
420811253
Couvercle rotar*cover-rotary
Includes 2 - 3.; |
420811253 |
— | ||
|
3
|
3
420929650 Goupille ass. *guide pin |
420929650 |
US $21.40 |
||
|
4
|
4
290250313
Rondelle *washer
|
290250313 |
— | ||
| replacement | |||||
|
4
|
4
420250313 Rondelle *washer |
420250313 |
US $82.80 |
||
|
5
|
5
290940598
Vis hex. *screw-hex.
|
290940598 |
— | ||
| replacement | |||||
|
5
|
5
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
6
|
6
290850160
Bague etanche *rubber ring
|
290850160 |
— | ||
| replacement | |||||
|
6
|
6
420850160 Bague etanche *ring-rubber |
420850160 |
US $20 |
||
|
7
|
7
290811193
Epaul.pomp.huil*flange-pum.oil
|
290811193 |
— | ||
| replacement | |||||
|
7
|
7
420811194 Epaul.pomp.huil*flange-pum.oil |
420811194 |
US $241.69 |
||
|
8
|
8
293300018 Joint torique *o-ring |
293300018 |
US $71.25 |
||
|
9
|
9
205587560
Screw-socket din.912a2 s.grip
|
205587560 |
— | ||
|
10
|
10
420927945 Washer-flat 6,2x12x1 |
420927945 |
US $19.60 |
||
|
11
|
11
420935945
Engrenage pompe*gear-oil pump 41th
|
420935945 |
— | ||
|
12
|
12
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
13
|
13
290845389
Rondelle frein *washer-lock
|
290845389 |
— | ||
| replacement | |||||
|
13
|
13
420845389 Rondelle frein *washer-lock |
420845389 |
US $45.65 |
||
|
14
|
14
205051660 Screw-socket hd.din.912a2 |
205051660 |
US $10.65 |
||
|
15
|
15
290845381
Rondelle frein *washer-lock
|
290845381 |
— | ||
| replacement | |||||
|
15
|
15
420845381 Rondelle frein *washer-lock |
420845381 |
US $81.30 |
||
|
16
|
16
205062060 Screw-socket hd.din.912a2 |
205062060 |
US $15.05 |
||
|
17
|
17
404146600 Rondelle etanch*washer-sealing |
404146600 |
US $20 |
||
|
18
|
18
420956010 Soupape ass. *valve-assy. |
420956010 |
US $19.40 |
||
|
19
|
19
290241830
Boulon banjo *bolt-banjo
|
290241830 |
— | ||
| replacement | |||||
|
19
|
19
404146800 Bolt-banjo m6 x 16 |
404146800 |
US $137.50 |
||
|
20
|
20
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
21
|
21
414413800 Boyau d huile *hose-oil |
414413800 |
US $15.05 |
||
|
22
|
22
290853843
Bride serrage *clamp
|
290853843 |
— | ||
| replacement | |||||
|
22
|
22
420853843 Bride serrage *clamp |
420853843 |
US $77.70 |
||
|
23
|
23
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
24
|
24
293250070
Joint etanche *gasket
|
293250070 |
— | ||
| replacement | |||||
|
24
|
24
293250134 Joint etanche *gasket |
293250134 |
US $75.30 |
||
|
25
|
25
290996725
Pomp.huile ass.*pump-oil assy.
Includes 25 - 40.; |
290996725 |
— | ||
| replacement | |||||
|
25
|
25
420996726 Pomp.huile ass.*pump-oil assy.Includes 25 - 40.; |
420996726 |
US $330.45 |
||
|
26
|
26
290256085
Disp.retenue *holder
|
290256085 |
— | ||
| replacement | |||||
|
26
|
26
420256085 Disp.retenue *holder |
420256085 |
US $3.83 |
||
|
27
|
27
293300019 Joint torique *o-ring |
293300019 |
US $10.17 |
||
|
28
|
28
290956340
Plateau pompe *plate-pump oil
|
290956340 |
— | ||
| replacement | |||||
|
28
|
28
420956340 Oil pump plate |
420956340 |
US $37.71 |
||
|
29
|
29
420241975 Screw-with stopper m4 x 8 |
420241975 |
US $37.40 |
||
|
30
|
30
290929900
Goupille arret *pin-stop
|
290929900 |
— | ||
| replacement | |||||
|
30
|
30
420929900
Goupille arret *pin-stopper 8
|
420929900 |
— | ||
|
31
|
31
420850200 Joint etanche *gasket |
420850200 |
US $9.13 |
||
|
32
|
32
290956031
Plateau pompe *plate-pump oil
|
290956031 |
— | ||
| replacement | |||||
|
32
|
32
420956031
Plateau pompe *plate-pump oil
|
420956031 |
— | ||
|
33
|
33
420227505 Rondelle etanch*washer-seal |
420227505 |
US $14.20 |
||
|
34
|
34
290841583
Vis hex. *screw-hex.
|
290841583 |
— | ||
| replacement | |||||
|
34
|
34
420841583 Vis hex. *screw-hex. |
420841583 |
US $14.25 |
||
|
36
|
36
290227665
Rondelle *washer
|
290227665 |
— | ||
| replacement | |||||
|
36
|
36
420227665
Rondelle *washer
|
420227665 |
— | ||
|
37
|
37
290848162
Levier controle*lever-control
|
290848162 |
— | ||
| replacement | |||||
|
37
|
37
420848162 Levier controle*lever-control |
420848162 |
US $26.49 |
||
|
38
|
38
290845381
Rondelle frein *washer-lock
|
290845381 |
— | ||
| replacement | |||||
|
38
|
38
420845381 Rondelle frein *washer-lock |
420845381 |
US $81.30 |
||
|
39
|
39
290242623
Ecrou hex. *nut-hex.
|
290242623 |
— | ||
| replacement | |||||
|
39
|
39
420242623
Nut-hex.m6
|
420242623 |
— | ||
|
40
|
40
293200038
Oil seal
|
293200038 |
— | ||
|
41
|
41
270000187 Guide cable *guide-cable |
270000187 |
US $51.75 |
||
|
42
|
42
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
43
|
43
270000386
Cable injection*cable-inject.
|
270000386 |
— | ||
| replacement | |||||
|
43
|
43
270000540
Cable injection*cable-inject.
|
270000540 |
— | ||
|
44
|
44
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
45
|
45
290886316
Ens.joint cyl. *set-gasket cyl
|
290886316 |
— | ||
| replacement | |||||
|
45
|
45
420886316
Ens.joint cyl. *set-gasket cyl
|
420886316 |
— | ||
|
46
|
46
290886317
Ens.joint etanc*set-gasket
|
290886317 |
— | ||
| replacement | |||||
|
46
|
46
420886317 Set-gasket |
420886317 |
US $171.33 |
||
