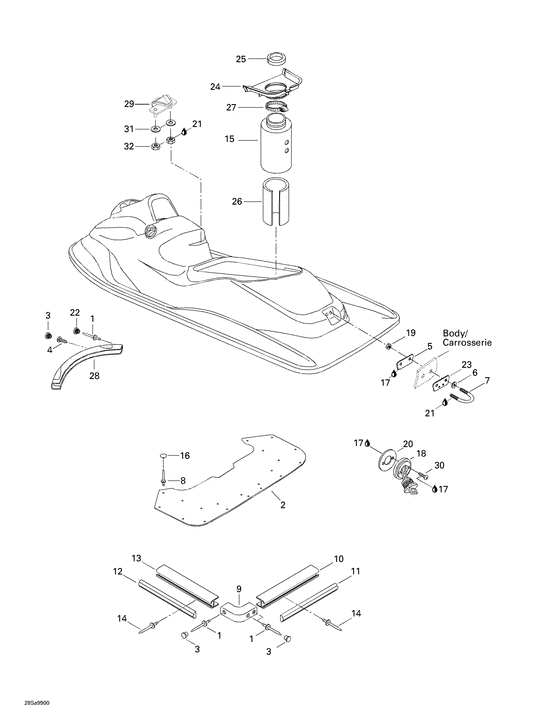

09- body Diagram Bombardier GS/GSI
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
2
|
2
291001185
Tapis arriere *carpet-rear
|
291001185 |
— | ||
|
3
|
3
291000339 Bouchon parecho*plug-bumper |
291000339 |
from US $4.90 |
||
|
4
|
4
211000037
Screw-plastite pan hd.ph
|
211000037 |
— | ||
|
5
|
5
291000307 Plaque retenue *plate-retainer |
291000307 |
US $13.60 |
||
|
6
|
6
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
7
|
7
292000011 Bride en u *clamp-u |
292000011 |
US $68.29 |
||
|
8
|
8
293150036 Rivet-pop 1/8 *rivet-pop 1/8 |
293150036 |
US $0.37 |
||
|
9
|
9
291001304
Coin pare-chocs*corner-bumper
|
291001304 |
— | ||
| replacement | |||||
|
9
|
9
291001505
Coin pare-chocs*corner-bumper
|
291001505 |
— | ||
|
10
|
10
291001191
Pare-chocs arr.*bumper-rear
|
291001191 |
— | ||
| replacement | |||||
|
10
|
10
291002242 Pare-chocs arr.*bumper-rear |
291002242 |
US $110.13 |
||
|
11
|
11
291001192
Moulure *bumper trim
|
291001192 |
— | ||
|
12
|
12
291001190
Moulure *bumper trim
|
291001190 |
— | ||
| replacement | |||||
|
12
|
12
204050271 Moulure parecho*trim-bump.side |
204050271 |
US $56.05 |
||
|
13
|
13
291001189
Pare-chocs lat.*bumper-side
|
291001189 |
— | ||
|
14
|
14
293150014 Rivet-pop 3/16 *rivet-pop 3/16 |
293150014 |
US $37 |
||
|
15
|
15
291001103 Boyau vent.arr.*hose-vent rear |
291001103 |
US $37.71 |
||
|
16
|
16
293000014 Capuchon press.*cap-snap black |
293000014 |
US $67 |
||
|
17
|
17
293800033
Scell.silicone *seal-silicone
|
293800033 |
— | ||
| replacement | |||||
|
17
|
17
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
18
|
18
292000187 Bouchon purge *plug-drain |
292000187 |
from US $21.60 |
||
|
19
|
19
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
20
|
20
293250030 Joint etanche *gasket |
293250030 |
US $38.85 |
||
|
21
|
21
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
22
|
22
291001040
Bouchon parecho*plug-bumper
|
291001040 |
— | ||
|
23
|
23
291000544
Plaque finition*plate-finition
|
291000544 |
— | ||
|
24
|
24
291001150
Support boyau *support-hose
Includes 24 - 25.; |
291001150 |
— | ||
| replacements | |||||
|
24
|
24
291001105
Adap.boyau *adap-hose vent
Includes 24 - 25.; |
291001105 |
— | ||
|
24
|
24
293200093 Anneau neoprene*neoprene sealIncludes 24 - 25.; |
293200093 |
US $183.44 |
||
|
24
|
24
291001105
Adap.boyau *adap-hose vent
|
291001105 |
— | ||
|
25
|
25
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
25
|
25
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
26
|
26
291000400
Assourdisseur *damping-sound
|
291000400 |
— | ||
|
27
|
27
293650054 Bride serrage *clamp-tridon |
293650054 |
US $53.65 |
||
|
28
|
28
291001035
Nez pare-chocs *nose-bumper
|
291001035 |
— | ||
| replacement | |||||
|
28
|
28
291001942
Nez pare-chocs *nose-bumper
|
291001942 |
— | ||
|
29
|
29
291001353
Crochet siege *hook seat
|
291001353 |
— | ||
| replacement | |||||
|
29
|
29
291001479
Crochet siege *hook seat
|
291001479 |
— | ||
|
30
|
30
211000021 Screw-tri.plask pan.hd.phil. |
211000021 |
US $11.76 |
||
|
31
|
31
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
32
|
32
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
