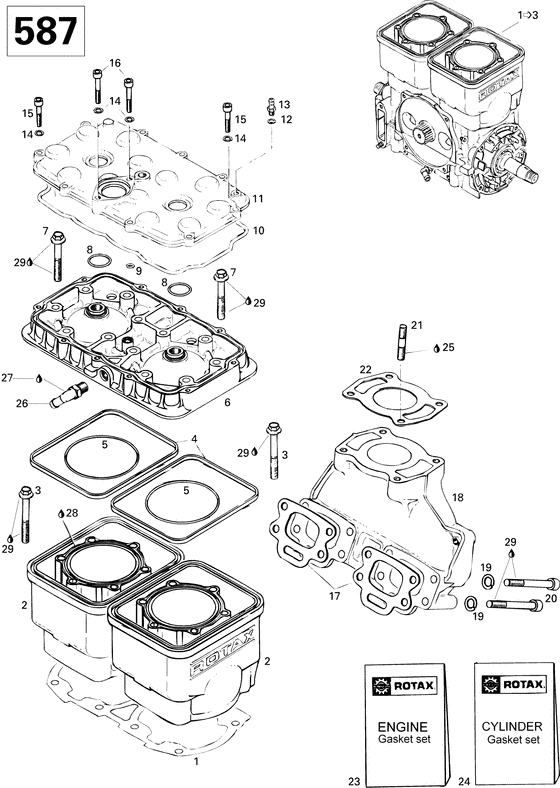

01- cylinder and exhaust manifold 587 Diagram Bombardier SP/SPI
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
290881444
Moteur 587 semi*block-short587
Includes 1 to 3; |
290881444 |
— | ||
| replacement | |||||
|
1
|
1
421000094
Ens.carter-cyl.*short block 587 white
Includes 1 to 3; |
421000094 |
— | ||
|
1
|
1
290931161
Joint etanche *gasket-cyl.
|
290931161 |
— | ||
| replacement | |||||
|
1
|
1
420931161 Cylinder gasket 0.5mm |
420931161 |
US $16.29 |
||
|
2
|
2
290913376
Cylindre blanc *cylinder-assy.
|
290913376 |
— | ||
| replacement | |||||
|
2
|
2
421000053
Cylindre refait*cyl-resleeving 587
|
421000053 |
— | ||
|
3
|
3
290841998
Vis hex.flasque*screw-hex.flan
|
290841998 |
— | ||
| replacement | |||||
|
3
|
3
420841998 Screw-hex. |
420841998 |
US $67.40 |
||
|
4
|
4
290850040
Bague etanche *rubber ring
|
290850040 |
— | ||
| replacement | |||||
|
4
|
4
420850040 Bague etanche *rubber ring |
420850040 |
US $33.05 |
||
|
5
|
5
293300026 Joint torique *o-ring |
293300026 |
US $22.39 |
||
|
6
|
6
290913352
Culasse (blanc)
|
290913352 |
— | ||
|
7
|
7
290240328
Vis hex.flasque*screw-hex.flan
|
290240328 |
— | ||
| replacement | |||||
|
7
|
7
420240328 Screw-hex.flan |
420240328 |
US $72.70 |
||
|
8
|
8
290430782
Joint torique *o-ring
|
290430782 |
— | ||
| replacement | |||||
|
8
|
8
420430782 Joint torique *o ring |
420430782 |
US $69.50 |
||
|
9
|
9
290430200
Joint torique
|
290430200 |
— | ||
|
10
|
10
290950360
Joint torique *o-ring
|
290950360 |
— | ||
| replacement | |||||
|
10
|
10
420950360 Joint torique *o ring |
420950360 |
US $14.25 |
||
|
11
|
11
290913362
Couvercle de culasse (blanc)
|
290913362 |
— | ||
|
12
|
12
290830890
Rondelle etanc.*washer-seal
|
290830890 |
— | ||
| replacement | |||||
|
12
|
12
420830890 Rondelle etanch*washer-seal |
420830890 |
US $1.96 |
||
|
13
|
13
290940557
Raccord boyau *fitting-hose
|
290940557 |
— | ||
| replacement | |||||
|
13
|
13
420940557
Hose fitting
|
420940557 |
— | ||
|
14
|
14
290845381
Rondelle frein *washer-lock
|
290845381 |
— | ||
| replacement | |||||
|
14
|
14
420845381 Rondelle frein *washer-lock |
420845381 |
US $81.30 |
||
|
15
|
15
210100012
Screw-socket hd.din.912a2
|
210100012 |
— | ||
| replacement | |||||
|
15
|
15
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
16
|
16
290241813
Vis allen *screw-socket
|
290241813 |
— | ||
| replacement | |||||
|
16
|
16
205063560 Screw-socket hd.din.912a2 |
205063560 |
US $14.35 |
||
|
17
|
17
290850635
Joint etanche *gasket
|
290850635 |
— | ||
| replacement | |||||
|
17
|
17
420850634 Gasket |
420850634 |
US $20.34 |
||
|
18
|
18
290978348
New Genuine Part
|
290978348 |
— | ||
|
19
|
19
290845382
Rondelle frein *washer-lock
|
290845382 |
— | ||
| replacement | |||||
|
19
|
19
234180602 Washer-lock spring din.128a-a2 |
234180602 |
US $15 |
||
|
20
|
20
290841833
Vis allen *screw-socket
|
290841833 |
— | ||
| replacement | |||||
|
20
|
20
205087560 Screw-socket hd.din.912a2 |
205087560 |
US $3.89 |
||
|
21
|
21
290941013
Goujon m8 x 26 *stud-m8 x 26
|
290941013 |
— | ||
| replacement | |||||
|
21
|
21
420941014 Goujon m8 x 26 *stud-m8 x 26 |
420941014 |
US $14.14 |
||
|
22
|
22
290950251
Joint etanche *gasket
|
290950251 |
— | ||
| replacement | |||||
|
22
|
22
420950253 Exhaust gasket |
420950253 |
US $16.44 |
||
|
23
|
23
290993878
Ens.joint etanc*set-gasket
|
290993878 |
— | ||
| replacement | |||||
|
23
|
23
420993878
Ens.joint etanc*set-gasket
|
420993878 |
— | ||
|
24
|
24
290993877
Ens.joint cyl. *set-gasket cyl
|
290993877 |
— | ||
| replacement | |||||
|
24
|
24
420993877
Ens.joint cyl. *set-gasket cyl
|
420993877 |
— | ||
|
25
|
25
293899788
Loctite 648, 5 gr.
|
293899788 |
— | ||
|
26
|
26
293700023 Raccord coude90*fitting-elbow |
293700023 |
US $21.42 |
||
|
27
|
27
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
28
|
28
293800007
Loctite 515 *loctite-515
|
293800007 |
— | ||
| replacement | |||||
|
28
|
28
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
29
|
29
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
30
|
30
290830906 Joint etanche *gasket |
290830906 |
US $1.96 |
||
| replacement | |||||
|
30
|
30
420830906 Gasket |
420830906 |
US $19.45 |
||
