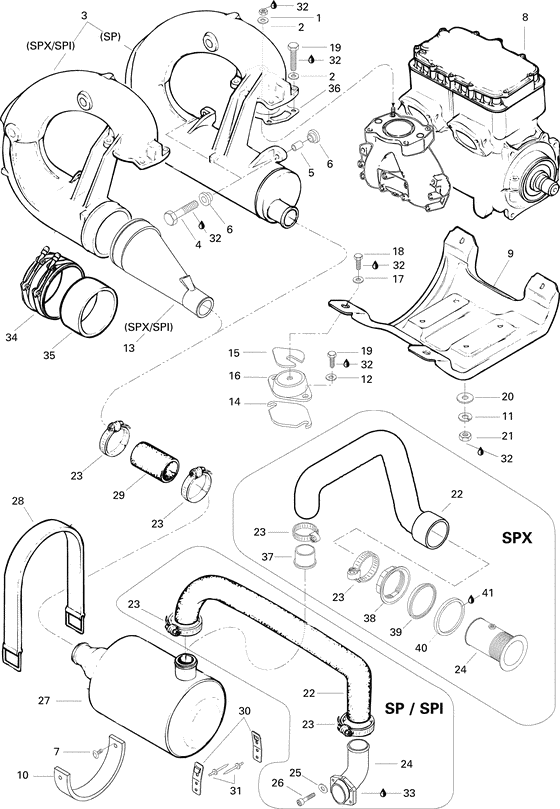

01- exhaust system spi Diagram Bombardier SP/SPI
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
212100001
Nut-hexagonal din.934a2
|
212100001 |
— | ||
| replacement | |||||
|
1
|
1
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
2
|
2
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
3
|
3
274000299
Tuyau echapp. *pipe-tuned
|
274000299 |
— | ||
| replacement | |||||
|
3
|
3
274001091
Tuy.col.peint *tune pipe p.
|
274001091 |
— | ||
|
4
|
4
215684060
Screw-hex.cap din.931a2
|
215684060 |
— | ||
| replacement | |||||
|
4
|
4
207084060 Screw-hex.cap din.931a2 |
207084060 |
US $14.35 |
||
|
5
|
5
274000114 Douille *bushing |
274000114 |
US $10.03 |
||
|
6
|
6
293830031 Douille caout. *bushing-rubber |
293830031 |
US $40.65 |
||
|
7
|
7
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
8
|
8
270000173
Moteur rotax 587,carb. simple(blanc)
|
270000173 |
— | ||
|
9
|
9
270000147
Support moteur *support-engine
|
270000147 |
— | ||
| replacement | |||||
|
9
|
9
204250074
Support moteur *support-eng.(painted)
|
204250074 |
— | ||
|
10
|
10
293830008
Tampon caout. *pad-rubber
|
293830008 |
— | ||
|
11
|
11
213000003
Washer-lock helical din.127b-a2
|
213000003 |
— | ||
| replacement | |||||
|
11
|
11
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
12
|
12
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
274000126
Cone echapp. *cone-exhaust
|
274000126 |
— | ||
|
14
|
14
270000006 Cale epaisseur *shim-0.40mm |
270000006 |
US $72.70 |
||
|
14
|
14
270000007 Cale epaisseur *shim-1.3mm. |
270000007 |
US $48.55 |
||
|
15
|
15
270000024 Cale epaisseur *shim-0.4mm |
270000024 |
US $70.90 |
||
|
15
|
15
270000025 Cale epaisseur *shim-1.3mm |
270000025 |
US $35.45 |
||
|
16
|
16
270000217
Tampon ancrage *mount-rubber
|
270000217 |
— | ||
| replacement | |||||
|
16
|
16
270000425 Tampon ancrage *mount-rubber |
270000425 |
US $56.05 |
||
|
17
|
17
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
17
|
17
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
18
|
18
210000001
Screw-hex.cap din.933a2
|
210000001 |
— | ||
| replacement | |||||
|
18
|
18
207182060 Screw-hex.cap din.933a2 |
207182060 |
US $9.80 |
||
|
19
|
19
210000007
Screw-hex.cap din.933a2
|
210000007 |
— | ||
| replacement | |||||
|
19
|
19
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
20
|
20
213200003
Washer-flat din.125a-a2
|
213200003 |
— | ||
| replacement | |||||
|
20
|
20
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
21
|
21
212100007
Nut-hexagonal din.934a2
|
212100007 |
— | ||
| replacement | |||||
|
21
|
21
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
22
|
22
274000143
Boyau echapp. *hose-exhaust
|
274000143 |
— | ||
|
23
|
23
293650036 Bride serrage *clamp-tridon |
293650036 |
US $46.75 |
||
|
24
|
24
274000098190
New Genuine Part
|
274000098190 |
— | ||
|
25
|
25
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
25
|
25
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
26
|
26
210100002
Screw-socket hd.din.912a2
|
210100002 |
— | ||
| replacement | |||||
|
26
|
26
205062060 Screw-socket hd.din.912a2 |
205062060 |
US $15.05 |
||
|
27
|
27
274000249
Silenc.echapp. *muffler-bl.vio
|
274000249 |
— | ||
| replacement | |||||
|
27
|
27
274000491
Silenc.echapp. *muffler-black
|
274000491 |
— | ||
|
28
|
28
293850021
Sangle retenue *strap-rubber
|
293850021 |
— | ||
| replacement | |||||
|
28
|
28
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
29
|
29
274000032 Boyau raccord *hose-exhaust |
274000032 |
US $36.69 |
||
|
30
|
30
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
31
|
31
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
32
|
32
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
293800028
Scellant u-noir*sealant-u blac
|
293800028 |
— | ||
| replacement | |||||
|
33
|
33
219700363
Instant gasket *instant gasket
|
219700363 |
— | ||
|
34
|
34
274000211
Bride serrage *clamp-exhaust
|
274000211 |
— | ||
| replacement | |||||
|
34
|
34
293650068 Bride serrage *clamp-norma |
293650068 |
US $20.37 |
||
|
35
|
35
274000074
Bague etanche *sealing ring
|
274000074 |
— | ||
|
36
|
36
290950251
Joint etanche *gasket
|
290950251 |
— | ||
| replacement | |||||
|
36
|
36
420950253 Exhaust gasket |
420950253 |
US $16.44 |
||
