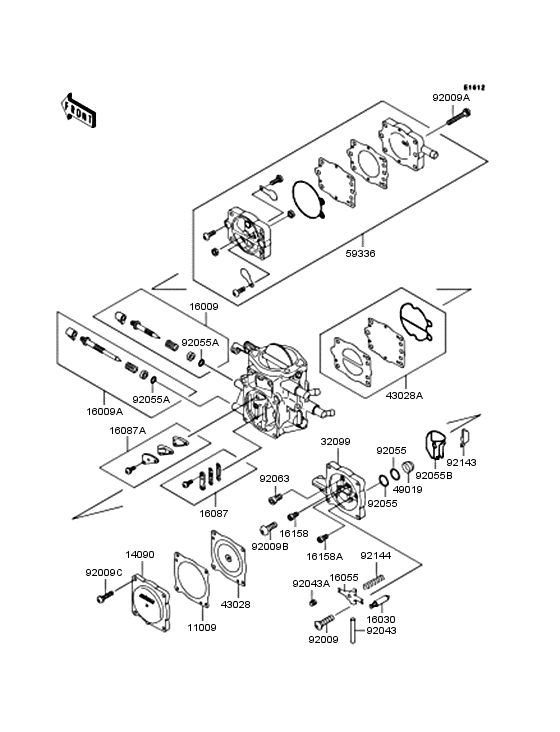

Carburetor parts Diagram Kawasaki JET SKI 750 STX JT750-C
- Engine Capacity
- 750
- Year
- 1998
- Commercial Name
- JT750-C
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JT750BE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-3730 GASKET,DIAPHRAGMガスケツト，ダイアフラム |
11009-3730 |
from US $11.88 |
||
|
14090
|
14090
14090-3702
COVER,DIAPHRAGM
カバ-，ダイヤフラム |
14090-3702 |
— | ||
|
16009
|
16009
16009-3711 NEEDLE-JET,MAINニ-ドル(ジエツト)，メイン |
16009-3711 |
from US $44.28 |
||
|
16009A
|
16009A
16009-3715 NEEDLE-JET,SLOWニ-ドル(ジエツト)，スロ- |
16009-3715 |
US $44.28 |
||
|
16030
|
16030
16030-3701 VALVE-FLOATバルブ(フロ-ト) |
16030-3701 |
from US $41.44 |
||
|
16055
|
16055
16055-3701 ARM-FLOATア-ム(フロ-ト) |
16055-3701 |
US $39.20 |
||
|
16087
|
16087
16087-3704 VALVE-CHECKバルブ(チエツク) |
16087-3704 |
US $24.53 |
||
|
16087A
|
16087A
16087-3705 VALVE-CHECK,MAINバルブ(チエツク) |
16087-3705 |
from US $24.53 |
||
|
16158
|
16158
16158-3710 JET-SLOW,#72ジエツト(スロ-)，#72 |
16158-3710 |
from US $13.37 |
||
|
16158A
|
16158A
16158-3718 JET-SLOW,#40ジエツト(スロ-)，#40 |
16158-3718 |
from US $13.37 |
||
|
32099
|
32099
32099-3793 CASE,CARBURETORケ-ス，キヤブレタ |
32099-3793 |
from US $73.94 |
||
|
43028
|
43028
43028-3704 DIAPHRAGM,CARBURETORダイアフラム，キヤブレタ |
43028-3704 |
from US $74.80 |
||
|
43028A
|
43028A
43028-3706 DIAPHRAGM,PUMPダイアフラム，ポンプ |
43028-3706 |
from US $74.80 |
||
|
49019
|
49019
49019-3707 FILTER-FUEL,STRAINERフイルタ(フユ-エル)，ストレ-ナ |
49019-3707 |
from US $7.13 |
||
|
59336
|
59336
59336-3710 CASE-PUMPケ-ス(ポンプ) |
59336-3710 |
from US $159.72 |
||
|
92009
|
92009
92009-3712 SCREW,3X6スクリユ-，3X8 |
92009-3712 |
from US $3.01 |
||
|
92009A
|
92009A
92009-3783 SCREW,5X28スクリユ-，5X28 |
92009-3783 |
from US $9.43 |
||
|
92009B
|
92009B
92009-3804 SCREWスクリユ-，4X8 |
92009-3804 |
from US $3.80 |
||
|
92009C
|
92009C
92009-3808 SCREW,4X18スクリユ-，4X18 |
92009-3808 |
US $6.49 |
||
|
92043
|
92043
92043-1209 PIN,FLOATピン |
92043-1209 |
from US $3.96 |
||
|
92043A
|
92043A
92043-3712
PIN,THROTTLE STOP SCR
ピン，スロツトル ストツプ スクリユ- |
92043-3712 |
— | ||
|
92055
|
92055
92055-1246 RING-Oリング(0) |
92055-1246 |
from US $3.17 |
||
|
92055A
|
92055A
92055-3713 RING-O,ADJUST SCREWリング(0)，アジヤスト スクリユ- |
92055-3713 |
from US $3.80 |
||
|
92055B
|
92055B
92055-3735 RING-Oリング(0) |
92055-3735 |
from US $5.70 |
||
|
92063
|
92063
92063-3703 JET-MAIN,#145ジエツト(メイン)，#145 |
92063-3703 |
from US $10.73 |
||
|
92143
|
92143
92143-3727 COLLARカラ- |
92143-3727 |
US $23.04 |
||
|
92144
|
92144
92144-3744 SPRING,FLOAT ARMスプリング，フロ-ト ア-ム |
92144-3744 |
from US $5.62 |
