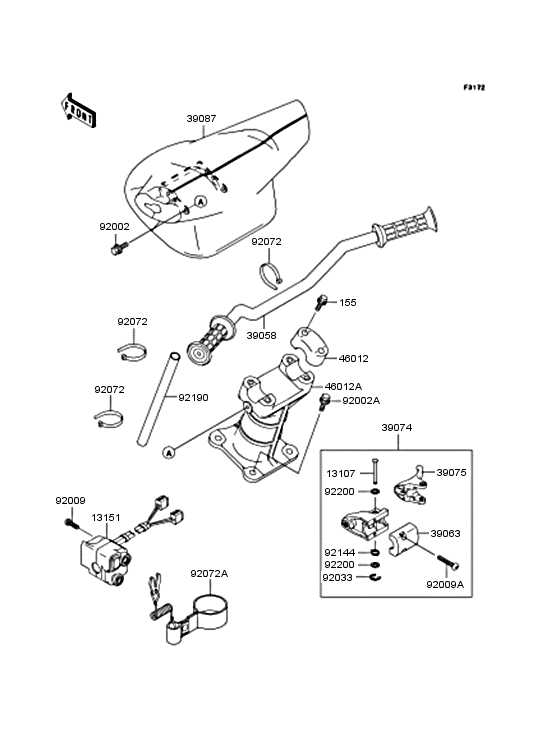

Handlebar Diagram Kawasaki JET SKI 750 STX JT750-C
- Engine Capacity
- 750
- Year
- 1998
- Commercial Name
- JT750-C
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JT750BE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
155
|
155
155R0835 BOLT-WSP-SMALL,8X35ボルト(コガタバネヒラツキ)，8X35 |
155R0835 |
from US $1.90 |
||
|
13107
|
13107
13107-3740 SHAFTシヤフト |
13107-3740 |
from US $7.13 |
||
|
13151
|
13151
13151-3733 SWITCH-COMP,STOP&STARスイツチコンプ，ストツプスタ-トトリム |
13151-3733 |
from US $439.96 |
||
|
39058
|
39058
39058-3712-6L HANDLE-COMP,F.REDハンドルコンプ，レツド |
39058-3712-6L |
from US $252.63 |
||
| replacement | |||||
|
39058
|
39058
39058-3732-6L HANDLE-COMP,F.REDハンドルコンプ，レツド |
39058-3732-6L |
US $248.62 |
||
|
39063
|
39063
39063-3722 HOUSING-CONTROLハウジング(コントロ-ル) |
39063-3722 |
from US $20.94 |
||
| replacement | |||||
|
39063
|
39063
39063-3727 HOUSING-CONTROLハウジング(コントロ-ル) |
39063-3727 |
from US $19.01 |
||
|
39074
|
39074
39074-3719 Lever-assy-throttleレバ-アツシ(スロツトル) |
39074-3719 |
US $86.47 |
||
| replacement | |||||
|
39074
|
39074
39074-3726 LEVER-ASSY-THROTTLEレバ-アツシ(スロツトル) |
39074-3726 |
from US $71.21 |
||
|
39075
|
39075
39075-3714 LEVER-THROTTLEレバ-(スロツトル) |
39075-3714 |
from US $30.07 |
||
|
39087
|
39087
39087-3720-LG PAD-HANDLE,GRAYパツド(ハンドル)，グレ- |
39087-3720-LG |
from US $132.50 |
||
|
46012
|
46012
46012-3720 HOLDER-HANDLE,UPPホルダ(ハンドル) |
46012-3720 |
from US $13.62 |
||
|
46012A
|
46012A
46012-3722 HOLDER-HANDLE,LWRホルダ(ハンドル)，LWR |
46012-3722 |
from US $185.86 |
||
| replacement | |||||
|
46012A
|
46012A
46012-3727 HOLDER-HANDLE,LWRホルダ(ハンドル)，LWR |
46012-3727 |
from US $171.34 |
||
|
92002
|
92002
92002-3763 BOLT,6X12ボルト，6X12 |
92002-3763 |
from US $3.17 |
||
|
92002A
|
92002A
92002-3774 BOLT,8X25ボルト，8X25 |
92002-3774 |
from US $5.39 |
||
|
92009
|
92009
92009-3836 SCREWスクリユ-，5X30 |
92009-3836 |
from US $3.01 |
||
|
92009A
|
92009A
92009-3837 SCREWスクリユ-，6X30 |
92009-3837 |
from US $3.17 |
||
|
92033
|
92033
92033-3723 RING-SNAPリング(スナツプ) |
92033-3723 |
from US $2.53 |
||
|
92072
|
92072
92072-3778
BAND,L=203.2
バンド |
92072-3778 |
— | ||
| replacements | |||||
|
92072
|
92072
92072-1239 BAND,L=188バンド |
92072-1239 |
from US $1.90 |
||
|
92072
|
92072
92072-3867 BAND,L=203.2バンド |
92072-3867 |
from US $1.90 |
||
|
92072A
|
92072A
92072-3816 BAND,TETHER SWITCHバンド，テザ- スイツチ |
92072-3816 |
from US $54.67 |
||
| replacements | |||||
|
92072A
|
92072A
92072-3809 BAND,TETHER SWITCHバンド，テザ- スイツチ |
92072-3809 |
from US $48.02 |
||
|
92072A
|
92072A
92072-0891 Band,Tether Switchバンド，テザ- スイツチ |
92072-0891 |
from US $48.02 |
||
|
92144
|
92144
92144-3749 SPRINGスプリング |
92144-3749 |
from US $3.17 |
||
|
92190
|
92190
92190-3935 チユ-ブ，22x24x270チユ-ブ，22X24X270 |
92190-3935 |
US $20.77 |
||
| replacements | |||||
|
92190
|
92190
92191-3792 TUBE,VINYL,22X350チユ-ブ，22X24X270 |
92191-3792 |
from US $16.95 |
||
|
92190
|
92190
92059-3018 TUBE,VINYL,22X350チユ-ブ，22X24X270 |
92059-3018 |
from US $22.29 |
||
|
92200
|
92200
92200-3738 WASHERワツシヤ |
92200-3738 |
from US $2.53 |
||
