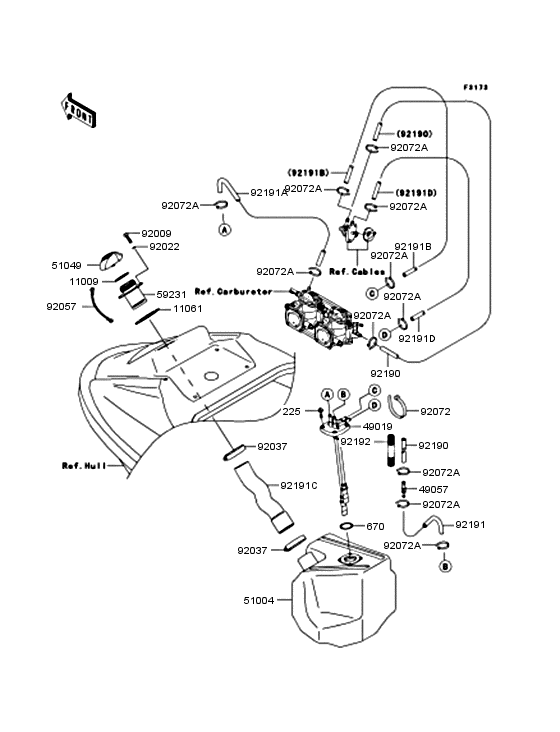

Fuel tank Diagram Kawasaki JET SKI 800 SX-R JS800-A
- Engine Capacity
- 800
- Year
- 2003
- Commercial Name
- JS800-A
- Sales region
- Japan
- Colour
- Jet White (8C)
- Engine
- JS800AE 000001 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
225
|
225
225R0520 SCREW-PAN-WSP-CROS,5Xナベコネジ(バネヒラツキ+ジアナ，5X20 |
225R0520 |
from US $1.27 |
||
|
670
|
670
670B3036 0 RING,36MMO リング(ウンドウヨウ)，36MM |
670B3036 |
from US $1.45 |
||
|
11009
|
11009
11009-3020 GASKET,FUEL TANK CAPガスケツト，タンク キヤツプ |
11009-3020 |
from US $10.14 |
||
|
11061
|
11061
11061-3701 GASKETガスケツト |
11061-3701 |
from US $9.98 |
||
|
49019
|
49019
49019-3718 FILTER-FUELフイルタ(フユ-エル) |
49019-3718 |
from US $60.77 |
||
| replacement | |||||
|
49019
|
49019
49019-0036 Filter-Fuelフイルタ(フユ-エル) |
49019-0036 |
US $80.19 |
||
|
49057
|
49057
49057-3707 VALVE-RELIEFバルブ(リリ-フ) |
49057-3707 |
from US $40.39 |
||
| replacement | |||||
|
49057
|
49057
49057-0002 VALVE-RELIEFバルブ(リリ-フ) |
49057-0002 |
from US $40.39 |
||
|
51004
|
51004
51004-3738 TANK-FUELタンク(フユ-エル) |
51004-3738 |
from US $150.52 |
||
| replacement | |||||
|
51004
|
51004
51004-3744 TANK-FUELタンク(フユ-エル) |
51004-3744 |
US $220.70 |
||
|
51049
|
51049
51049-3725 CAP-TANK,FUELキヤツプ(タンク)，フユ-エル |
51049-3725 |
US $29.77 |
||
| replacement | |||||
|
51049
|
51049
51049-0712 CAP-TANK,FUELキヤツプ(タンク)，フユ-エル |
51049-0712 |
from US $24.46 |
||
|
59231
|
59231
59231-3716 FILLER,FUEL TANKフイラ，フユ-エル タンク |
59231-3716 |
from US $11.72 |
||
| replacement | |||||
|
59231
|
59231
59231-3734 FILLER,FUEL TANKフイラ，フユ-エル タンク |
59231-3734 |
from US $9.82 |
||
|
92009
|
92009
92009-3849 SCREW,TAPPING,4X16スクリユ-，タツピング，4X16 |
92009-3849 |
from US $0.95 |
||
|
92022
|
92022
92022-563 WASHERワツシヤ |
92022-563 |
from US $1.56 |
||
|
92037
|
92037
92037-3009 HOSE CLAMPクランプ |
92037-3009 |
from US $4.69 |
||
|
92057
|
92057
92057-3704 CHAIN,COVERチエ-ン，カバ-，L=100 |
92057-3704 |
from US $15.52 |
||
|
92072
|
92072
92072-1239 BAND,L=188バンド，L=188 |
92072-1239 |
from US $1.90 |
||
|
92072A
|
92072A
92072-3871 BAND,L=99バンド，L=99 |
92072-3871 |
from US $2.22 |
||
|
92190
|
92190
92190-3846 TUBE,5.8X10.8X800,WHIチユ-ブ，5.8X10.8X500 |
92190-3846 |
from US $19.66 |
||
| replacement | |||||
|
92190
|
92190
92191-3720 TUBE,5.8X10.8X800,WHIチユ-ブ，5.8X10.8X500 |
92191-3720 |
from US $23.29 |
||
|
92191
|
92191
92191-3967 TUBE,AIR VENTチユ-ブ，エア ベント |
92191-3967 |
from US $10.77 |
||
| replacement | |||||
|
92191
|
92191
92192-1873 TUBE,AIR VENTチユ-ブ，エア ベント |
92192-1873 |
from US $9.17 |
||
|
92191A
|
92191A
92191-3968 TUBE,"RETURN"チユ-ブ，"RETURN" |
92191-3968 |
from US $14.57 |
||
| replacement | |||||
|
92191A
|
92191A
92192-1874 TUBE,RETURNチユ-ブ，"RETURN" |
92192-1874 |
US $12.44 |
||
|
92191B
|
92191B
92191-3969 TUBE,"RES"チユ-ブ，"RES" |
92191-3969 |
from US $26.48 |
||
| replacement | |||||
|
92191B
|
92191B
92192-1875 TUBE,RESチユ-ブ，"RES" |
92192-1875 |
US $23.79 |
||
|
92191C
|
92191C
92191-3970 TUBE,TANK-FILLERチユ-ブ，タンク(フイラ) |
92191-3970 |
from US $41.92 |
||
|
92191D
|
92191D
92191-3973 TUBE,"ON"チユ-ブ，"ON" |
92191-3973 |
from US $26.48 |
||
| replacement | |||||
|
92191D
|
92191D
92192-1876 TUBE,ONチユ-ブ，"ON" |
92192-1876 |
from US $23.79 |
||
|
92192
|
92192
92192-3708 TUBEチユ-ブ |
92192-3708 |
from US $5.70 |
||
